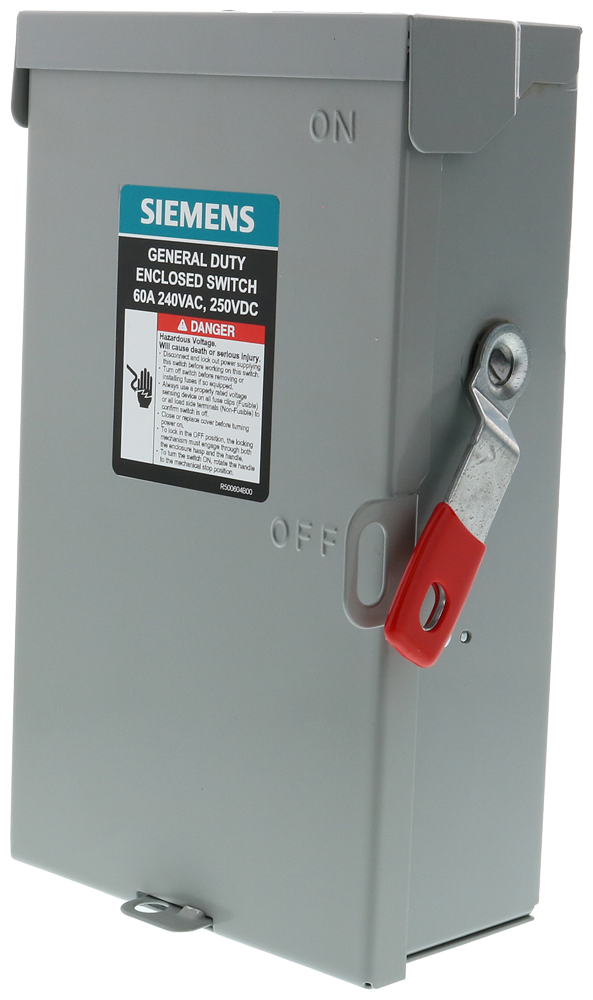

Siemens GF322NA - Fusible Safety Switch, 60A 240V 3P

Siemens
Price
Save $625.64
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Siemens GF322NA is a fusible safety switch designed for providing a visible disconnect and overcurrent protection in industrial power distribution. It is rated for 240V AC, 60A, and 3-phase operation, featuring a compact NEMA 1 enclosure measuring 6.693" x 3.937" x 9.843" and weighing 2.006 lb. The switch is UL listed and operates reliably within a temperature range of -25°C to 70°C (-13°F to 158°F). Its 100kA interrupting rating at 240V and compatibility with Class R fuses and MEP frames make it suitable for protecting motor circuits and feeder lines in commercial and industrial panelboards.

Key Features & Specifications
  • Type: Fusible safety disconnect switch, VBII Series
  • Voltage Rating: 240V AC
  • Current Rating: 60A
  • Dimensions: 6.693 x 3.937 x 9.843 inch (170 x 100 x 250 mm)
  • Standards: UL listed
  • Applications: Industrial power distribution, motor circuit protection
  • Switch Type: Fusible
  • Configuration: Single
  • Temp Rating: -25°C to 70°C (-13°F to 158°F)
  • Phase: 3
  • AIC rating: 100kA @ 240V
  • Connection: Screw terminal
  • Poles: 3
  • Protection: Overcurrent (via Class R fuses)
  • Nema Rating: NEMA 1
  • Fuse Class: R
  • Compatible Frames: MEP
  • Weight: 2.006 lb
  • Country of Origin: Mexico


Product Identification
  • UPC: 804766753480
  • GTIN: 00804766753480
