Siemens GF321NRA - Fusible Safety Switch 30A 240V (NEMA 3R, 100kA AIC)
Siemens GF321NRA - Fusible Safety Switch 30A 240V (NEMA 3R, 100kA AIC)

Siemens GF321NRA - Fusible Safety Switch 30A 240V (NEMA 3R, 100kA AIC)

Siemens
Price
Save $577.60
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price

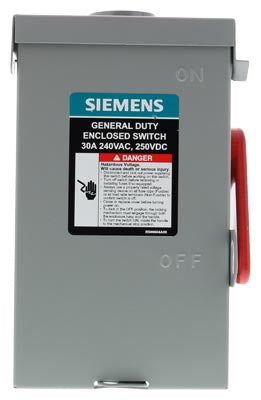

Siemens GF321NRA is a fusible safety switch designed for providing a visible disconnect and overcurrent protection in industrial power distribution. It is rated for 240V AC systems with a 30A current capacity and features a robust three-pole, single-configuration construction within a compact enclosure measuring 150 x 100 x 220 mm (5.906 x 3.937 x 8.661 in). The unit is UL listed, carries a NEMA 3R rating for outdoor use, and offers a high interrupting capacity of 100kA at 240V for reliable fault protection. Its operational temperature range of -25°C to 70°C (-13°F to 158°F) and 2.998 lb weight make it suitable for a variety of demanding applications including motor control centers, HVAC systems, and industrial machinery disconnects.

Key Features & Specifications
  • Type: Fusible Safety Disconnect Switch, VBII Series
  • Voltage Rating: 240V AC
  • Current Rating: 30A
  • Dimensions: 150 x 100 x 220 mm (5.906 x 3.937 x 8.661 in)
  • Standards: UL Listed, NEMA 3R Enclosure Rating
  • Applications: Industrial power distribution, motor disconnects, HVAC, machinery
  • Switch Type: Fusible
  • Configuration: Single
  • Temp Rating: -25°C to 70°C (-13°F to 158°F)
  • Weight: 2.998 lb
  • Phase: 3-Phase
  • Amperage: 30A
  • AIC Rating: 100kA @ 240V
  • Poles: 3
  • Protection: Overcurrent via user-supplied fuses
  • Enclosure: NEMA 3R
  • Country of Origin: Mexico


Product Identification
  • UPC: 804766753503
  • GTIN: 00804766753503
