Siemens GF321NA - Fusible Disconnect Switch 30A 240V (100kA AIC)

Price
Regular price $79.44
Regular price $459.00 Sale price $79.44
Save $379.56
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon

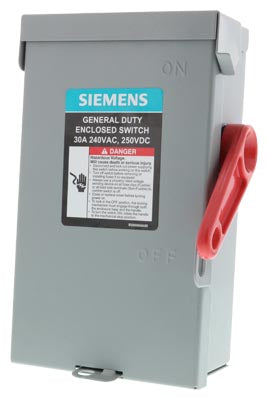

Siemens GF321NA is a fusible safety switch disconnect designed for providing reliable circuit protection and isolation in industrial power distribution. It is rated for 240V AC operation with a 30A current capacity and features a robust three-pole, single-configuration design within a compact enclosure measuring 150 x 100 x 220 mm (5.906" x 3.937" x 8.661"). The unit is UL listed, carries a NEMA 1 rating for indoor use, and operates effectively across a temperature range of -25°C to 70°C (-13°F to 158°F). Its high 100kA interrupting rating at 240V makes it suitable for safeguarding motor control centers and panelboards, particularly those with compatible MEP frames, against short-circuit faults.

Key Features & Specifications
  • Type: Fusible Safety Switch Disconnect, VBII Series
  • Voltage Rating: 240V AC
  • Current Rating: 30A
  • Dimensions: 150 x 100 x 220 mm (5.906" x 3.937" x 8.661")
  • Standards: UL Listed, NEMA 1 Enclosure
  • Applications: Industrial power distribution, motor control centers, panelboards
  • Switch Type: Disconnect
  • Configuration: Single
  • Temp Rating: -25°C to 70°C (-13°F to 158°F)
  • Shipping Dimensions: 150 x 100 x 220 mm (5.906" x 3.937" x 8.661")
  • Phase: Single
  • Voltage: 240V AC
  • Amperage: 30A
  • AIC rating: 100kA @ 240V
  • Connection: Fusible
  • Poles: 3
  • Protection: Short-circuit via fuses
  • Functions: Isolation and circuit protection
  • Frame Size: Compatible with MEP frames
  • Enclosure: NEMA 1
  • Certification: UL listed
  • Switch Style: Fusible
  • Nema Rating: NEMA 1
  • Section: Fusible


Product Identification
  • UPC: 804766753527
  • GTIN: 00804766753527
