Siemens GF321N - Fusible Disconnect, 30A 3-Pole 240V AC
Siemens GF321N - Fusible Disconnect, 30A 3-Pole 240V AC
SIemens GF321N Disconnect Switch (Fusible) - Essential Electric Supply
SIemens GF321N Disconnect Switch (Fusible) - Essential Electric Supply
Siemens GF321N - Fusible Disconnect, 30A 3-Pole 240V AC
Siemens GF321N - Fusible Disconnect, 30A 3-Pole 240V AC

Siemens GF321N - Fusible Disconnect, 30A 3-Pole 240V AC

Siemens
Price
Save $303.36
/
Title
  • Low stock - 5 items left
  • Backordered, shipping soon
Call for Price

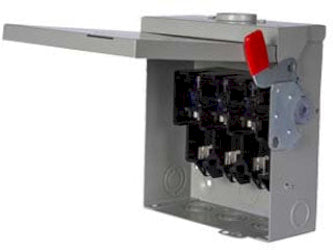

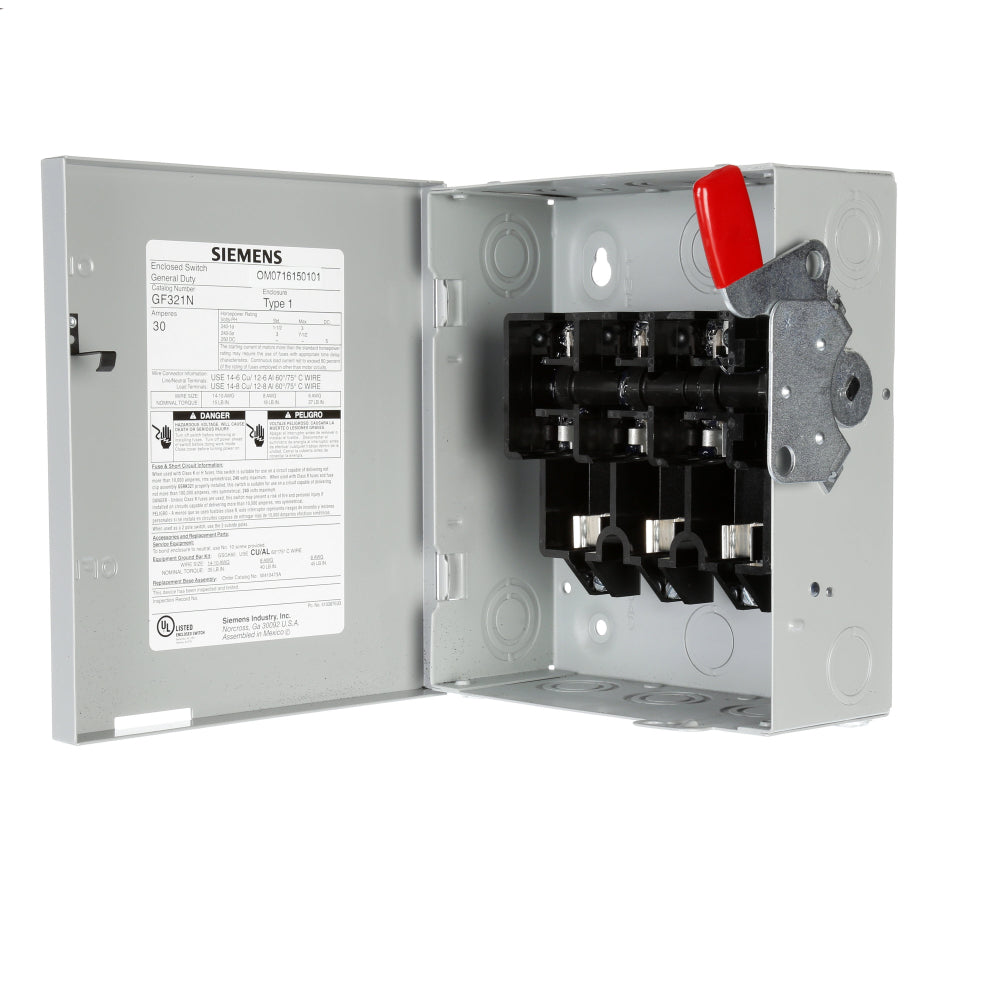

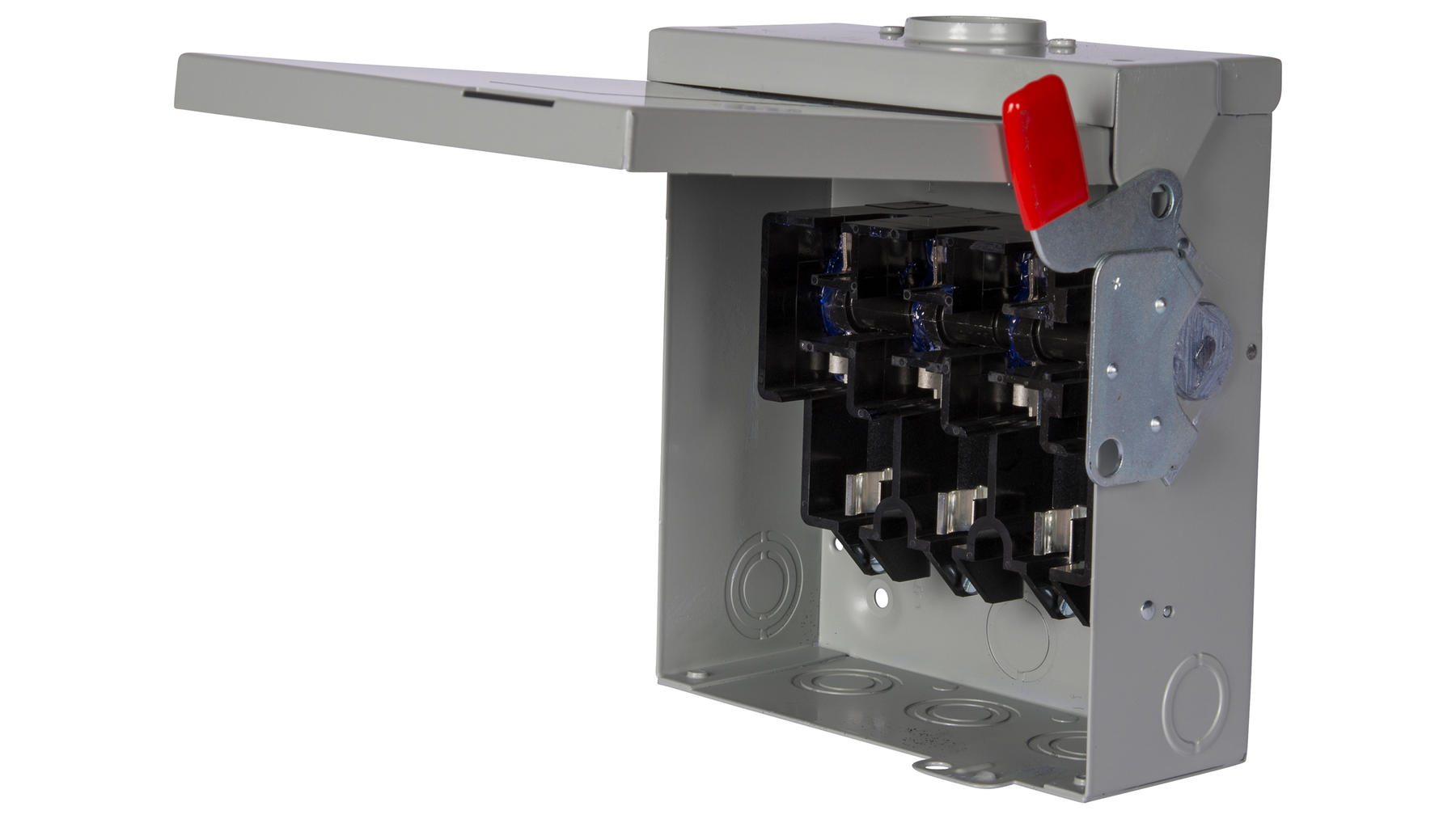

Siemens GF321N is a fusible safety switch disconnect designed for providing reliable circuit protection and isolation in industrial power distribution. It is rated for 240V AC, 30A operation on three-phase systems and features a robust NEMA 1 enclosure with dimensions of 120mm x 200mm x 200mm (4.724" x 7.874" x 7.874") and a weight of 4.586 lb. The unit is UL listed, offers a high interrupting capacity of 100kA at 240V, and operates within a temperature range of -25°C to 70°C (-13°F to 158°F). This switch is engineered for integration into MEP-compatible frames, making it suitable for motor control and feeder circuit applications requiring a Class R fusible disconnect.

Key Features & Specifications
  • Type: Fusible Safety Switch Disconnect, VBII Series
  • Voltage Rating: 240V AC
  • Current Rating: 30A
  • Configuration: Single, 3-Pole
  • Dimensions: 120mm x 200mm x 200mm (4.724" x 7.874" x 7.874")
  • Weight: 4.586 lb
  • Standards: UL Listed
  • Applications: Industrial motor control and feeder circuit protection
  • Switch Type: Fusible Disconnect
  • AIC Rating: 100kA @ 240V
  • NEMA Rating: NEMA 1
  • Phase: 3
  • Temp Rating: -25°C to 70°C (-13°F to 158°F)
  • Fuse Class: R
  • Compatible Frames: MEP
  • Country of Origin: Mexico


Product Identification
  • UPC: 783643335172
  • GTIN: 00785901765752
