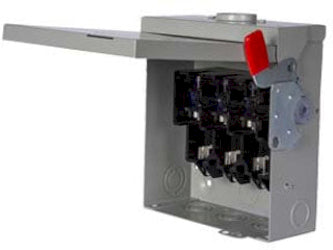

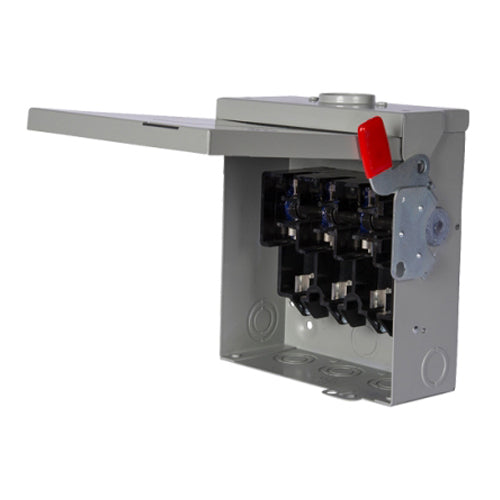

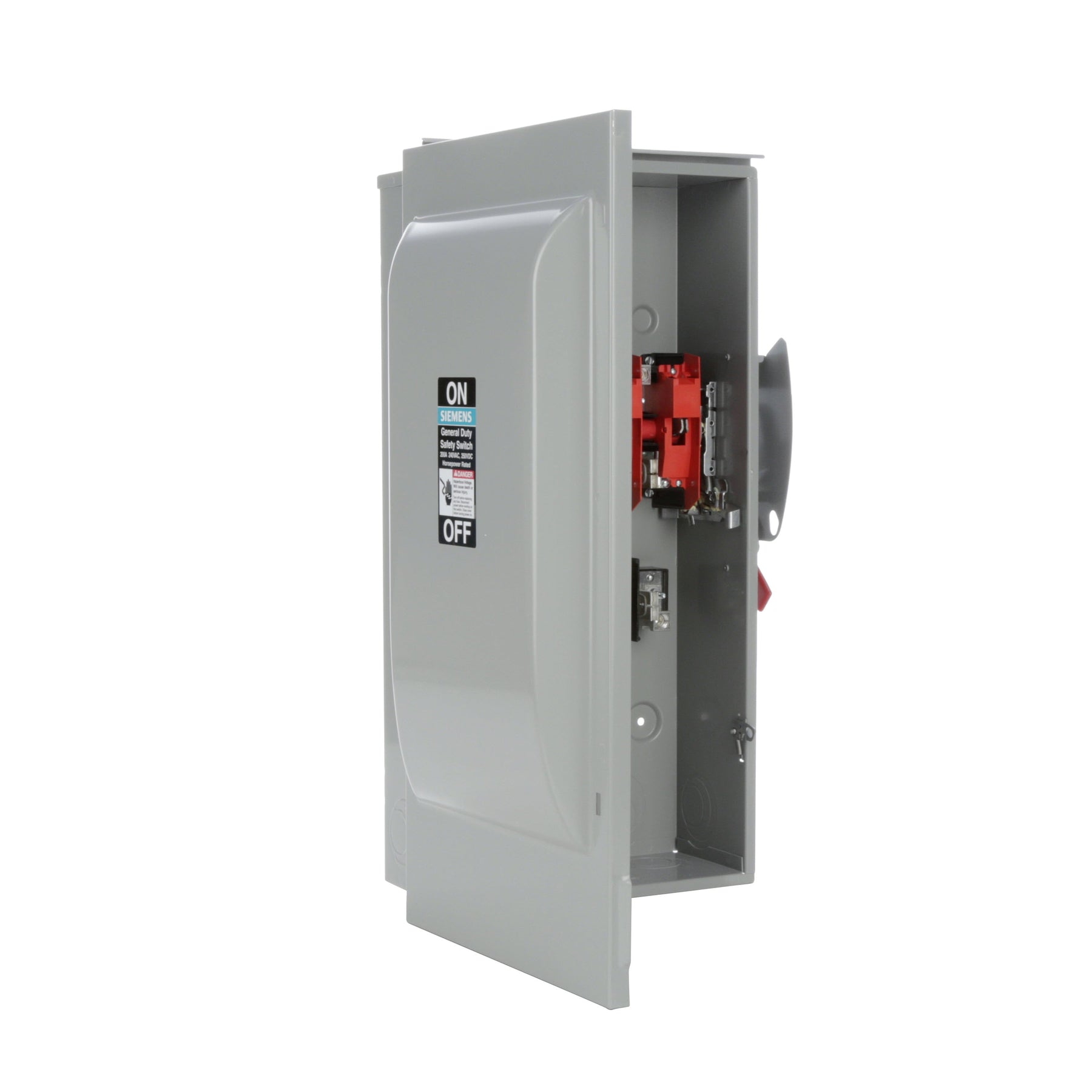

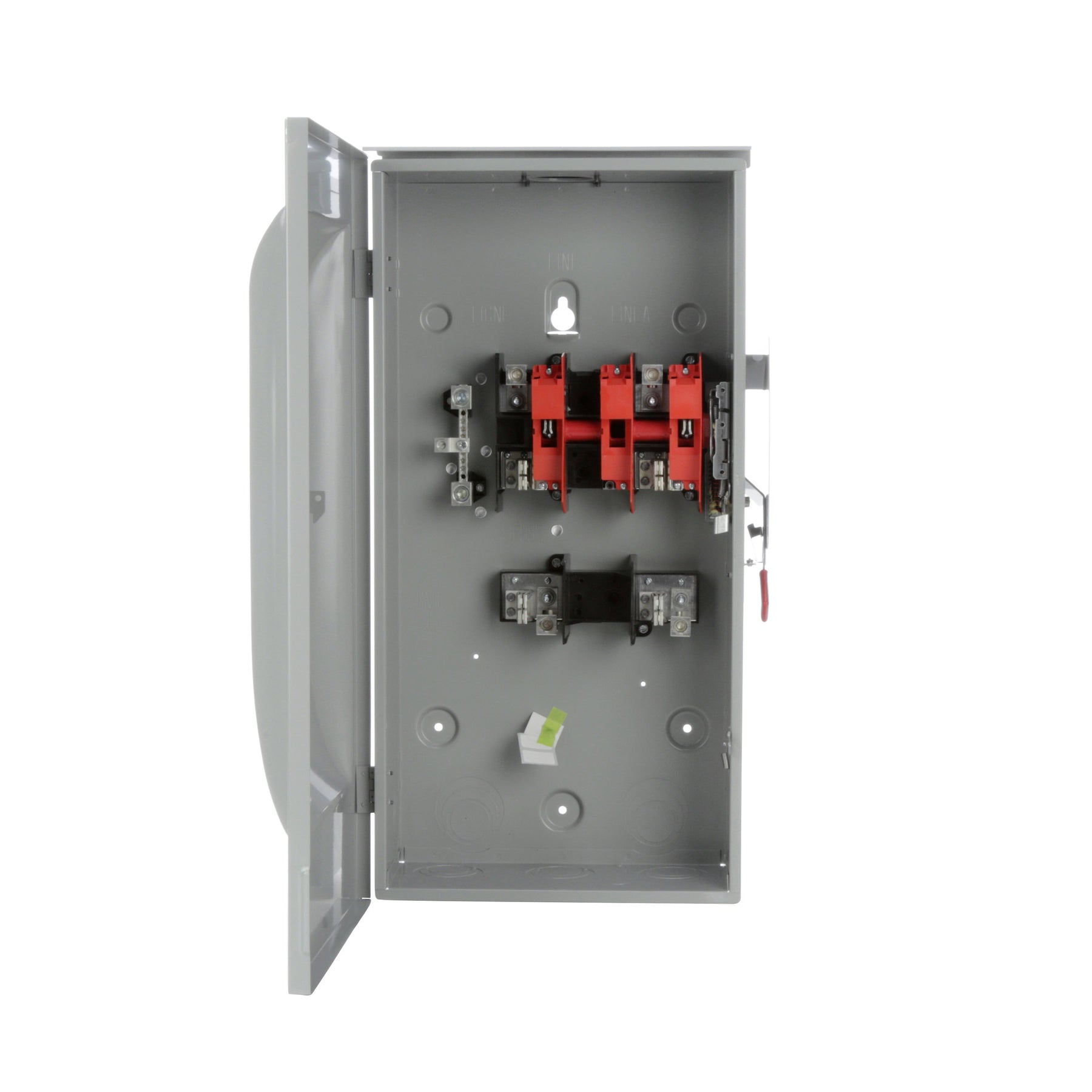

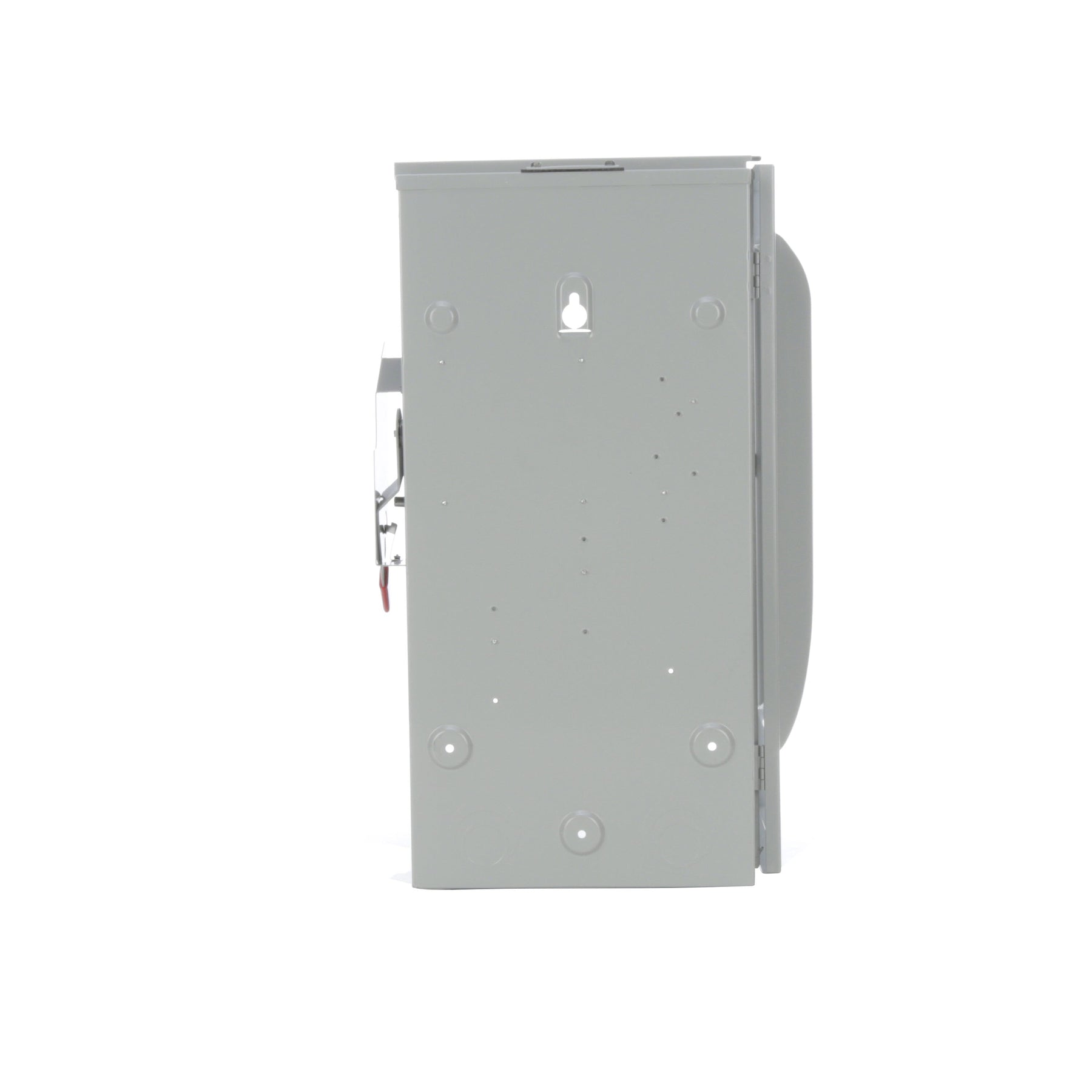

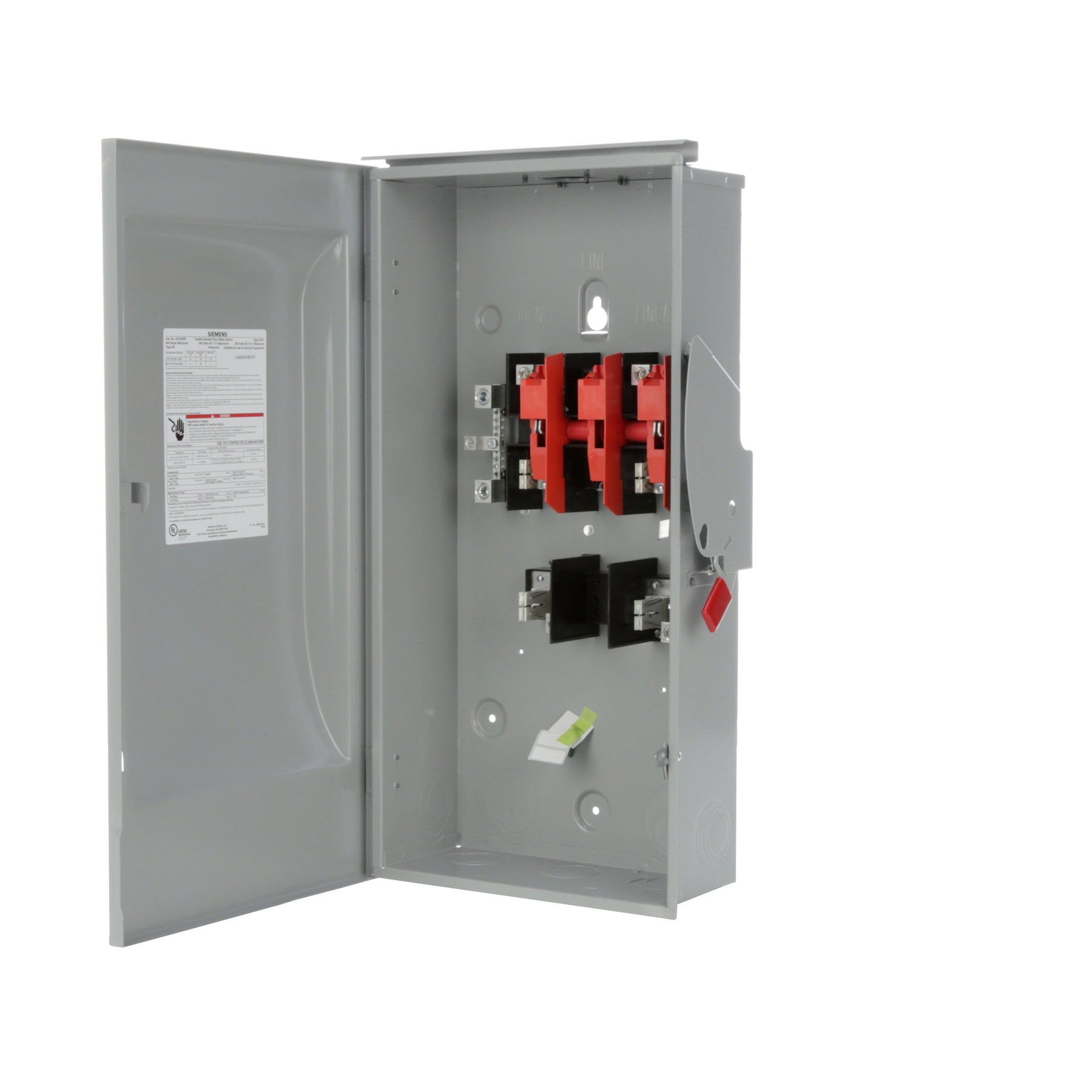

Siemens GF224NR - Fusible Disconnect Switch 200A@240V (100kA AIC NEMA 3R)

Siemens GF224NR is a fusible safety disconnect switch designed for industrial power distribution protection. This UL-listed unit features a 240V AC voltage rating with 200A current capacity and 100kA@240V interrupting rating for reliable circuit isolation. The rugged NEMA 3R enclosure measures 16.7" x 31.1" and weighs 20 lb, constructed with Class R fuse compatibility for enhanced safety. Compliant with industrial standards, this single-configuration, 2-pole switch is part of the VBII Series, compatible with MEP frames for motor control and power distribution applications.

Key Features & Specifications

• Type: Fusible safety disconnect switch (Class R)
• Voltage Rating: 240V AC
• Current Rating: 200A
• Dimensions: 16.7 in x 31.1 in
• Weight: 20 lb
• Standards: UL listed, NEMA 3R
• Applications: Industrial power distribution, motor control
• Configuration: Single
• Poles: 2
• Phase: 1
• AIC rating: 100kA@240V
• Fuse Class: R
• Compatible Frames: MEP
• Switch Style: Fusible
• Country of Origin: Mexico
• Family: VBII Series

Product Identification

• UPC: 783643149236
• GTIN: 00783643149236
