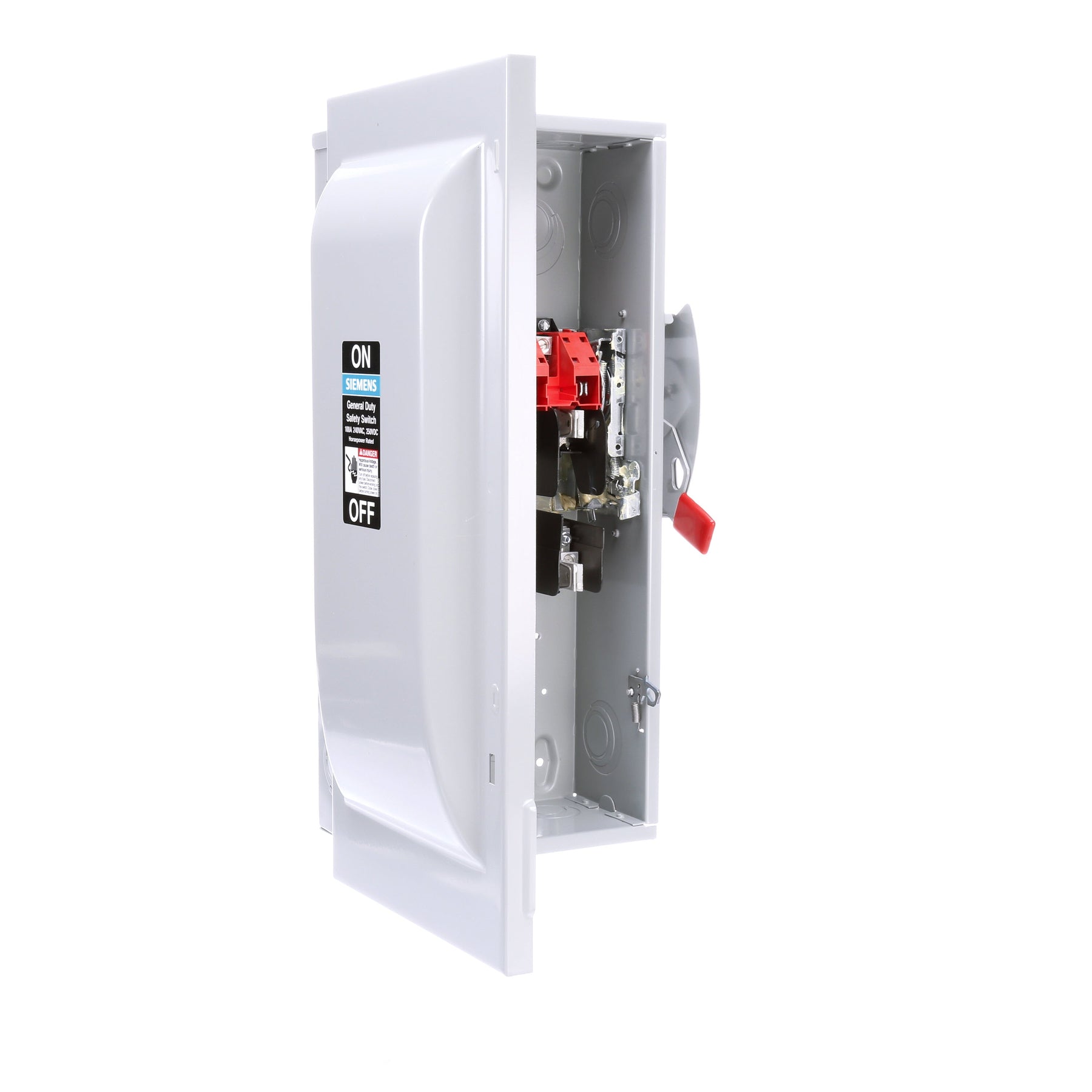

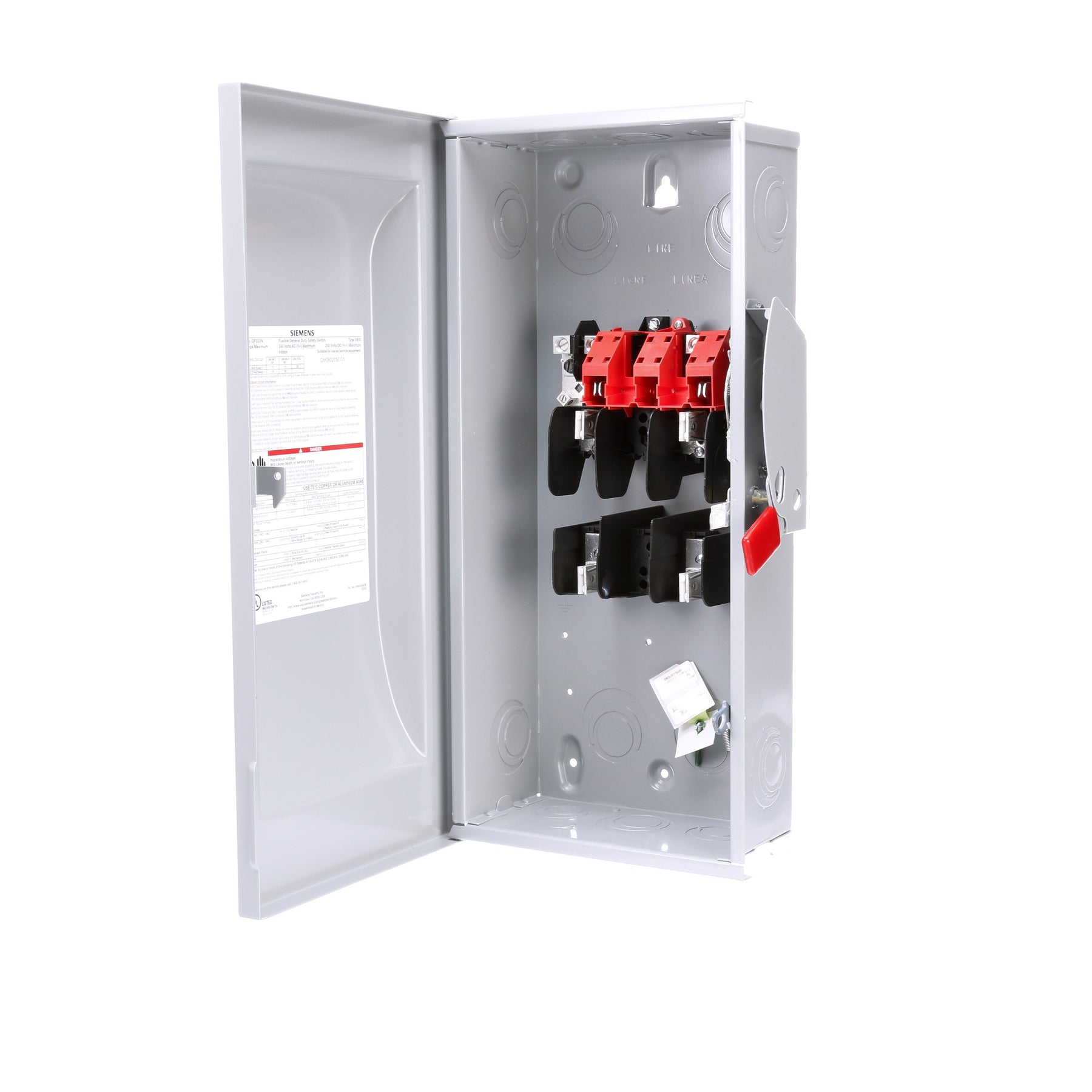

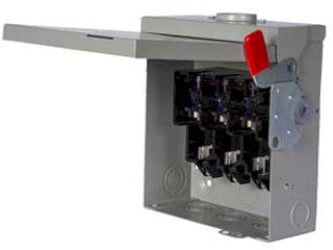

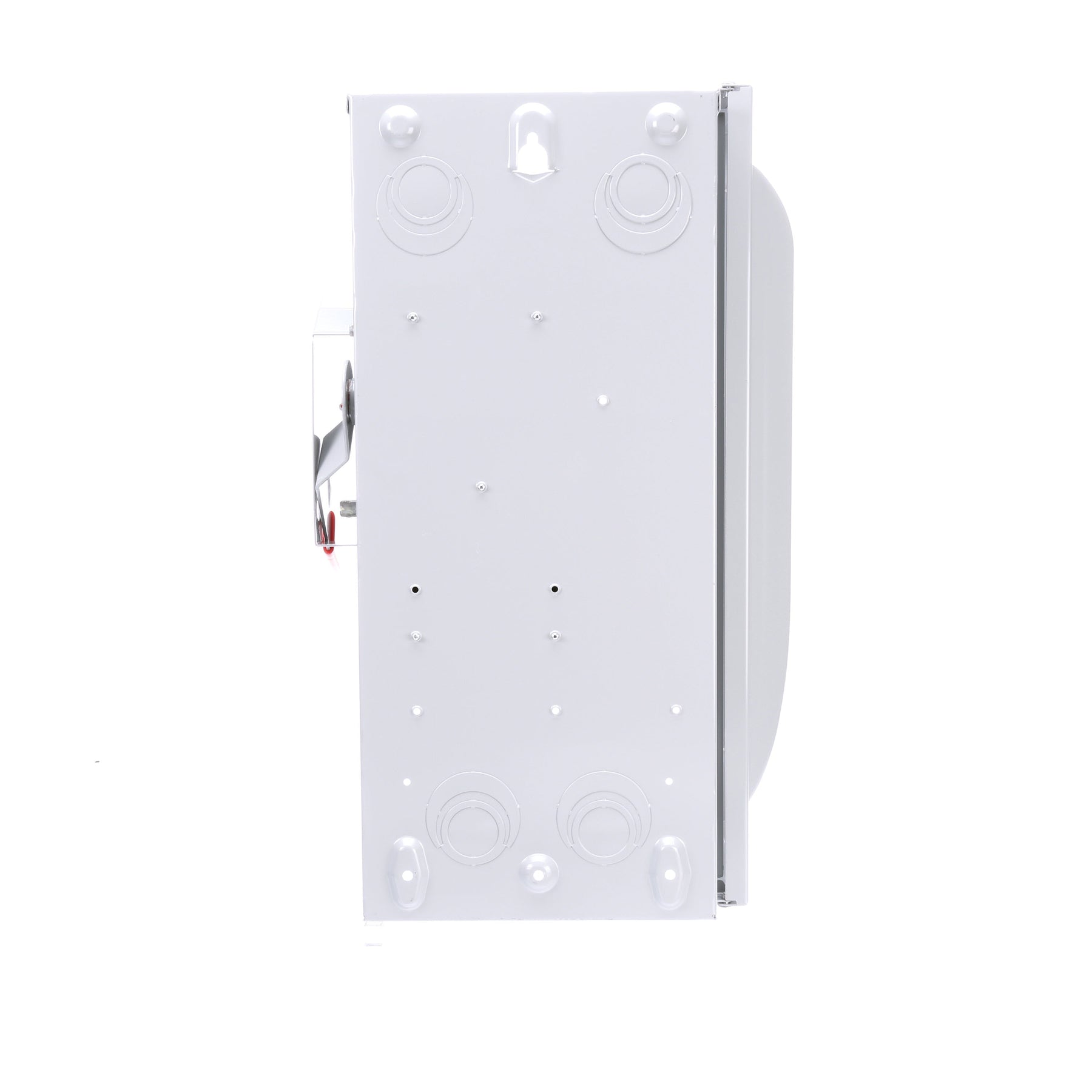

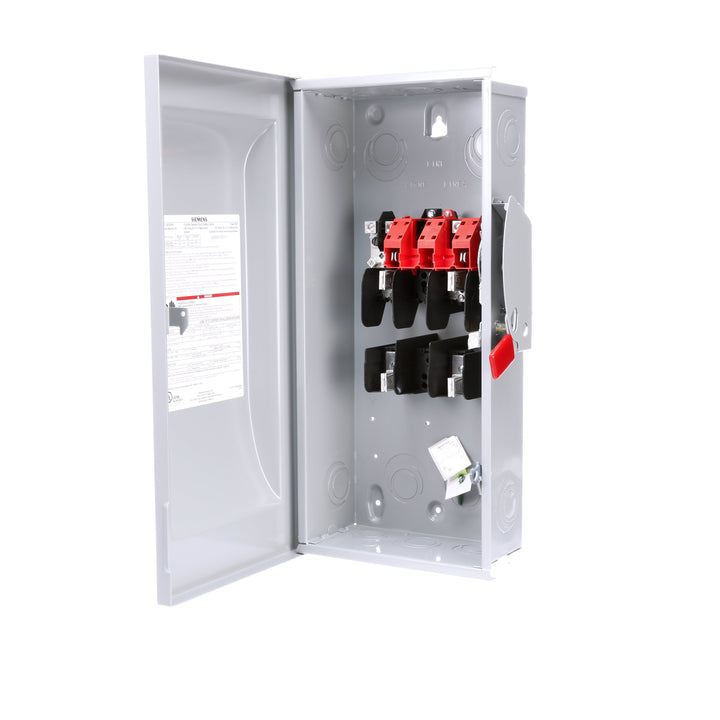

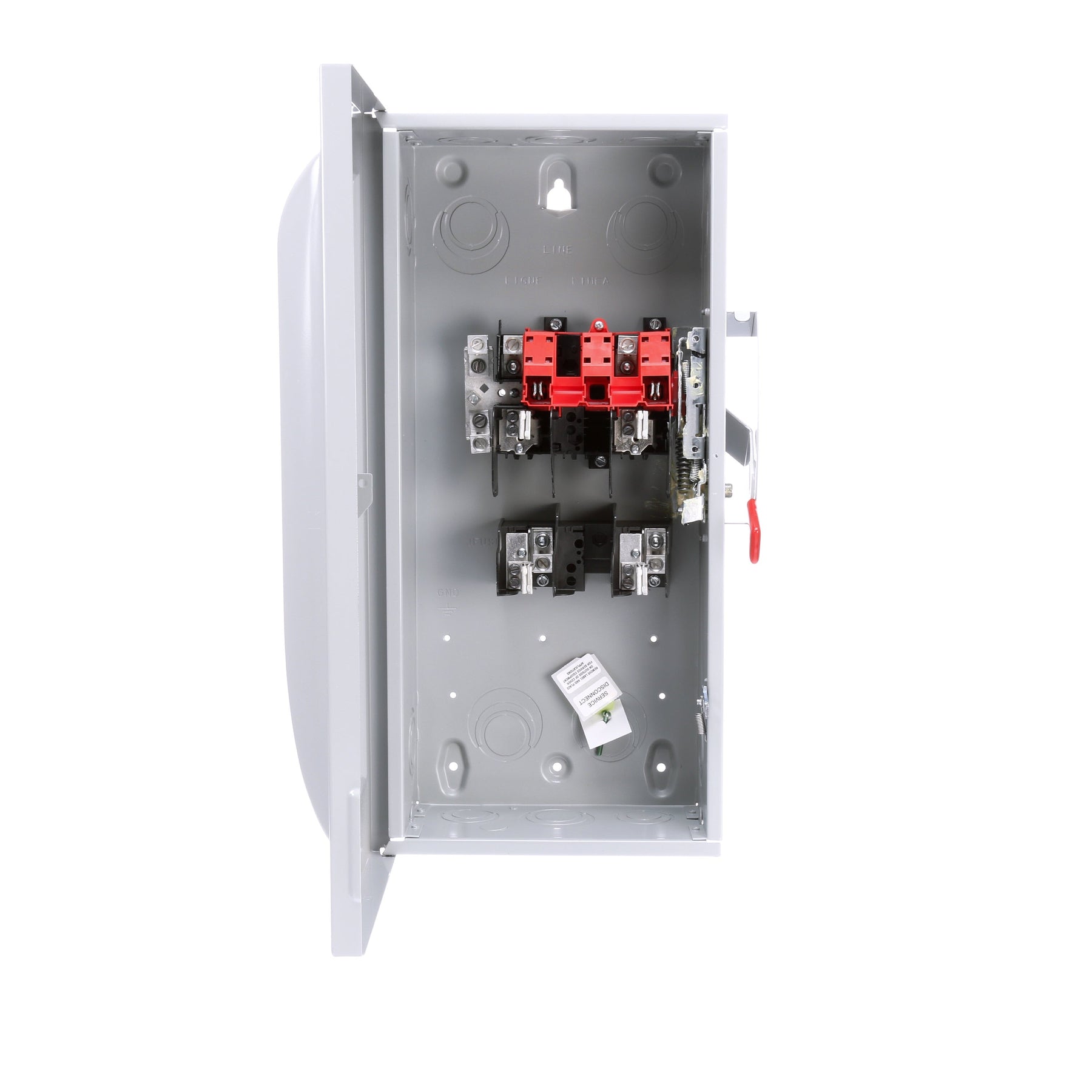

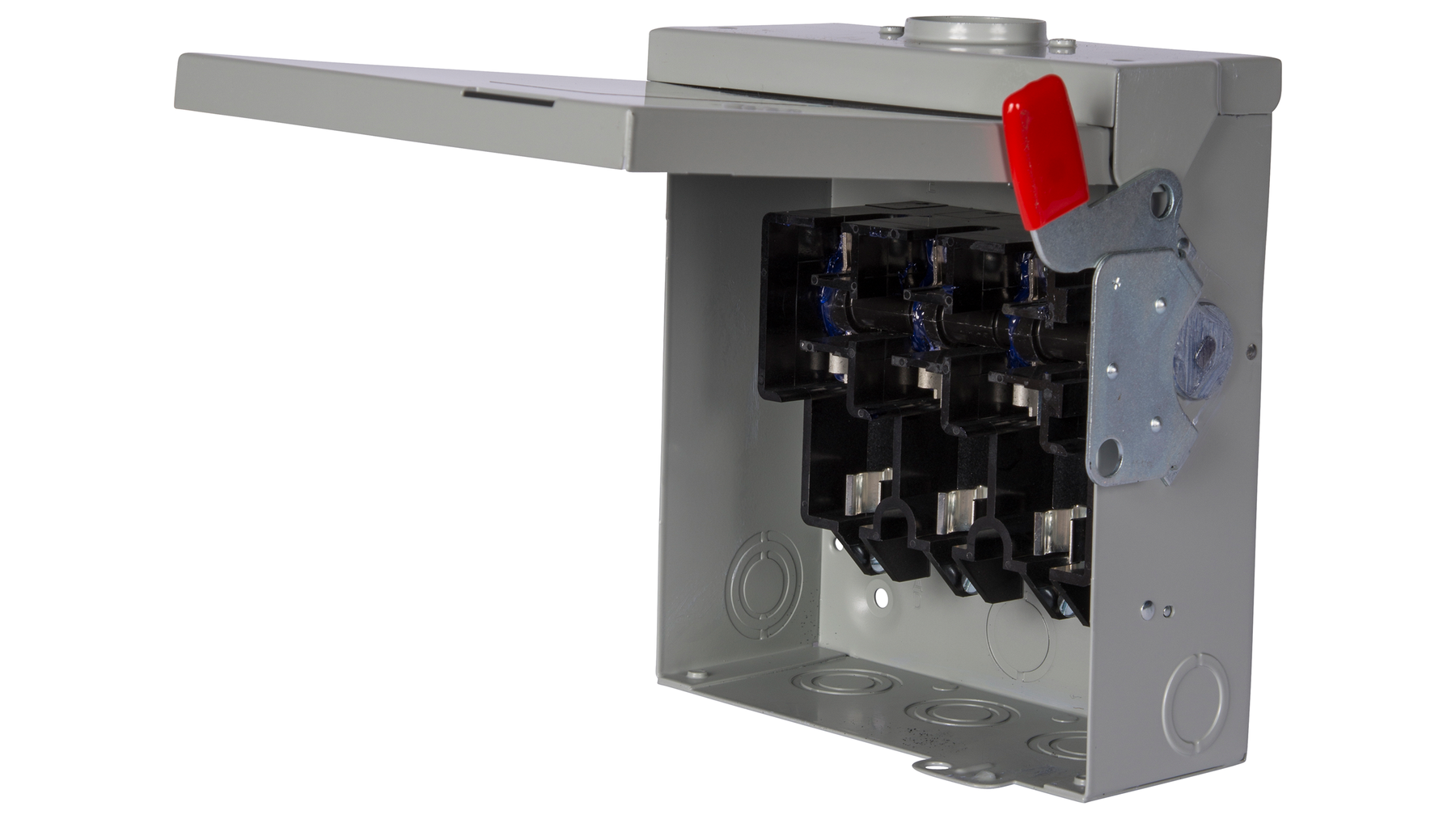

Siemens GF223N - Fusible Safety Disconnect Switch 100A 240V (2-Pole, 100kA AIC)

Siemens GF223N is a fusible safety disconnect switch designed for circuit protection and isolation in industrial applications. This 2-pole device operates at 240V AC with a 100A current rating and features a 100kA interrupting capacity at 240V for reliable fault protection. The switch is constructed with rugged NEMA 1 enclosure rated for indoor use and measures 11.7 x 23.1 inches with a weight of 20 pounds. UL certified and compliant with industry standards, this disconnect is engineered for use with Class R fuses and compatible with MEP frames in single-phase electrical systems.

Key Features & Specifications

• Type: Fusible safety disconnect switch, VBII Series
• Voltage Rating: 240V AC
• Current Rating: 100A
• Dimensions: 11.7 in x 23.1 in
• Standards: UL Certified
• Applications: Industrial circuit protection and isolation
• Switch Type: GF
• Configuration: Single
• Poles: 2
• AIC rating: 100kA@240V
• Protection: Circuit isolation and fault protection
• Functions: Safety disconnect
• Nema Rating: 1
• Phase: 1
• Fuse Class: R
• Compatible Frames: MEP
• Enclosure: NEMA 1
• Country of Origin: Mexico
• Weight: 20 lb

Product Identification

• UPC: 783643148079
• GTIN: 00783643148079
