Siemens GF222NRA - Fusible Safety Switch, 60A 240V (NEMA 3R)
Siemens GF222NRA - Fusible Safety Switch, 60A 240V (NEMA 3R)
Siemens GF222NRA - Fusible Safety Switch, 60A 240V (NEMA 3R)
Siemens GF222NRA - Fusible Safety Switch, 60A 240V (NEMA 3R)
Siemens GF222NRA - Fusible Safety Switch, 60A 240V (NEMA 3R)
Siemens GF222NRA - Fusible Safety Switch, 60A 240V (NEMA 3R)

Siemens GF222NRA - Fusible Safety Switch, 60A 240V (NEMA 3R)

Siemens
Price
Save $649.39
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price

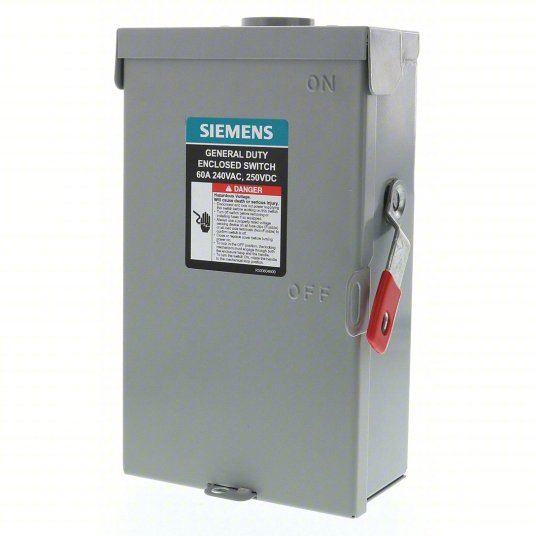

Siemens GF222NRA is a fusible safety switch designed for providing a visible disconnect and overcurrent protection in industrial and commercial electrical systems. It is rated for 240V AC, 60A, and features a 100kA interrupting capacity at 240V for robust short-circuit protection. The switch is constructed within a NEMA 3R-rated enclosure measuring 6.693 x 3.937 x 9.843 inches and weighing 4.012 lb, suitable for outdoor installations where it is exposed to rain and sleet. It is UL listed and operates reliably across a wide temperature range from -25°C to 70°C (-13°F to 158°F). This single-phase, 2-pole disconnect is a core component of the VBII Series, commonly applied in motor control centers, HVAC systems, and industrial machinery panels.

Key Features & Specifications
  • Type: Fusible safety disconnect switch, VBII Series
  • Voltage Rating: 240V AC
  • Current Rating: 60A
  • Configuration: Single
  • Poles: 2
  • Phase: 1
  • AIC Rating: 100kA @ 240V
  • Switch Style: Fusible
  • NEMA Rating: 3R
  • Temp Rating: -25°C to 70°C (-13°F to 158°F)
  • Dimensions: 6.693 x 3.937 x 9.843 inch
  • Weight: 4.012 lb
  • Standards: UL listed
  • Applications: Industrial machinery, motor control centers, HVAC systems, commercial electrical distribution
  • Country of Origin: Mexico


Product Identification
  • UPC: 804766753541
  • GTIN: 00804766753541
