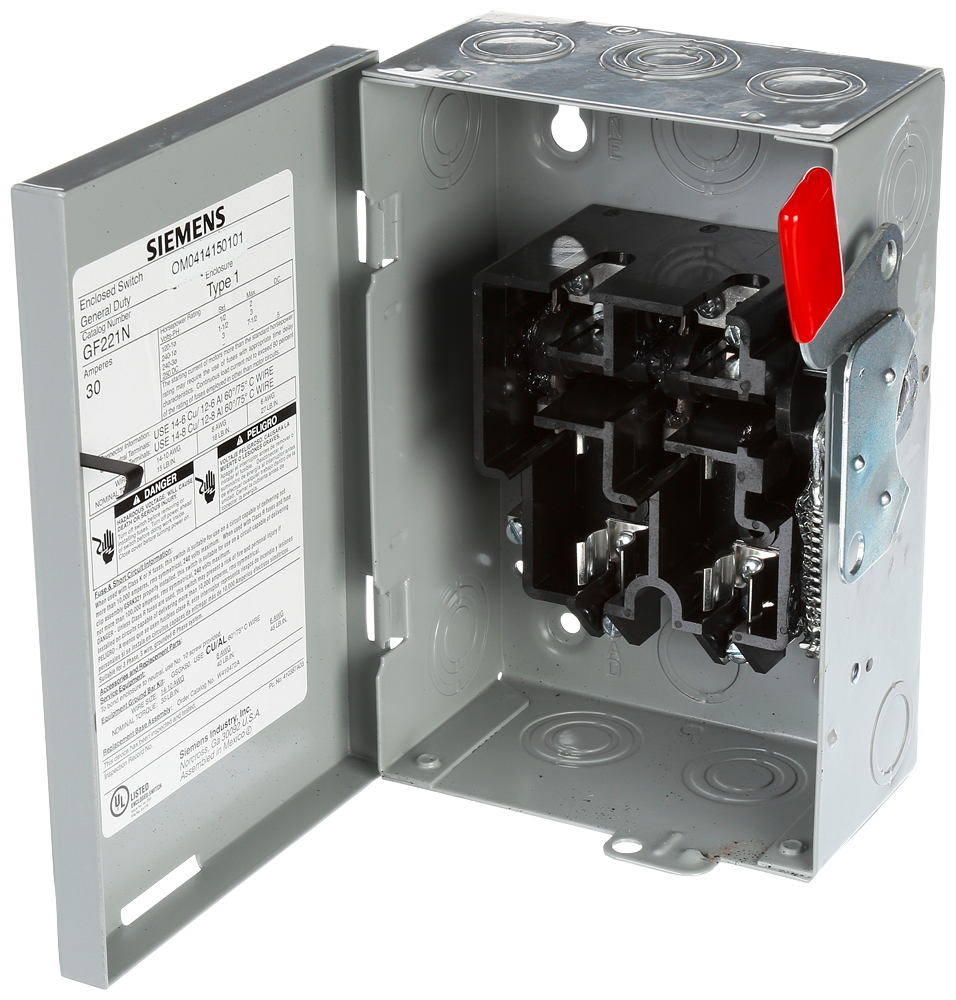

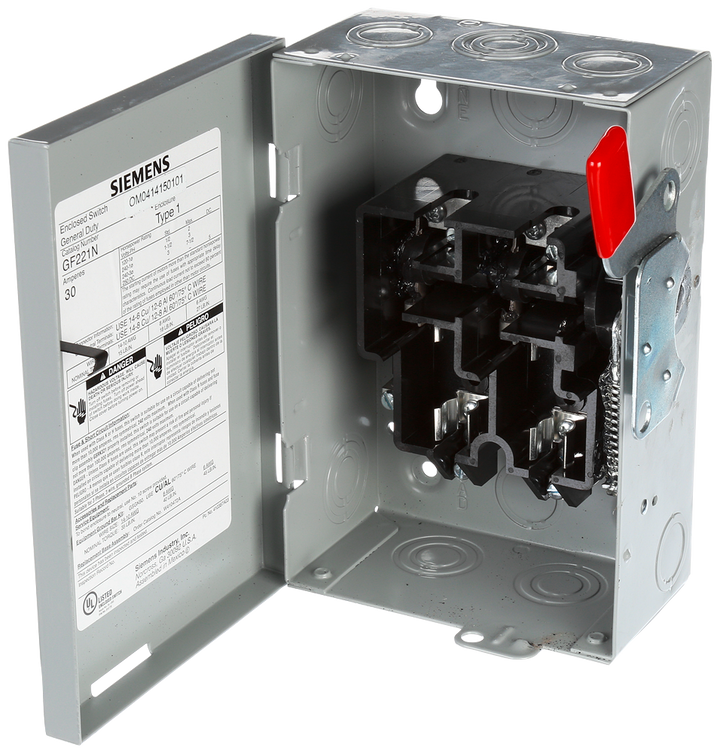

Siemens GF221NRA - Fusible Disconnect Switch 30A 240V (NEMA 3R)

Siemens
Price
Save $388.31
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Siemens GF221NRA is a fusible safety switch designed for providing reliable circuit isolation and overcurrent protection in industrial applications. It is rated for 240V AC operation with a 30A current capacity, housed in a compact, durable enclosure measuring 150 x 100 x 220 mm (5.906 x 3.937 x 8.661 inches) and weighing 2.998 lb. The switch is UL listed and meets NEMA 3R standards for outdoor use, with an operational temperature range of -25°C to 70°C (-13°F to 158°F). Its 100kA interrupting rating at 240V makes it suitable for protecting motor control centers, HVAC systems, and industrial machinery where high fault currents are a concern.

Key Features & Specifications
  • Type: Fusible safety disconnect switch, VBII Series, single configuration
  • Voltage Rating: 240V AC
  • Current Rating: 30A
  • Dimensions: 150 x 100 x 220 mm (5.906 x 3.937 x 8.661 inches)
  • Standards: UL listed, NEMA 3R enclosure rating
  • Applications: Motor control, HVAC, industrial machinery protection
  • Switch Type: Fusible disconnect
  • Configuration: Single
  • Poles: 2
  • AIC rating: 100kA @ 240V
  • Temp Rating: -25°C to 70°C (-13°F to 158°F)
  • Enclosure: NEMA 3R
  • Weight: 2.998 lb
  • Country of Origin: Mexico


Product Identification
  • UPC: 804766753589
  • GTIN: 00804766753589
