Siemens GF221NA - Fusible Disconnect 30A 240V (100kA AIC)

Siemens
Price
Save $255.99
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price

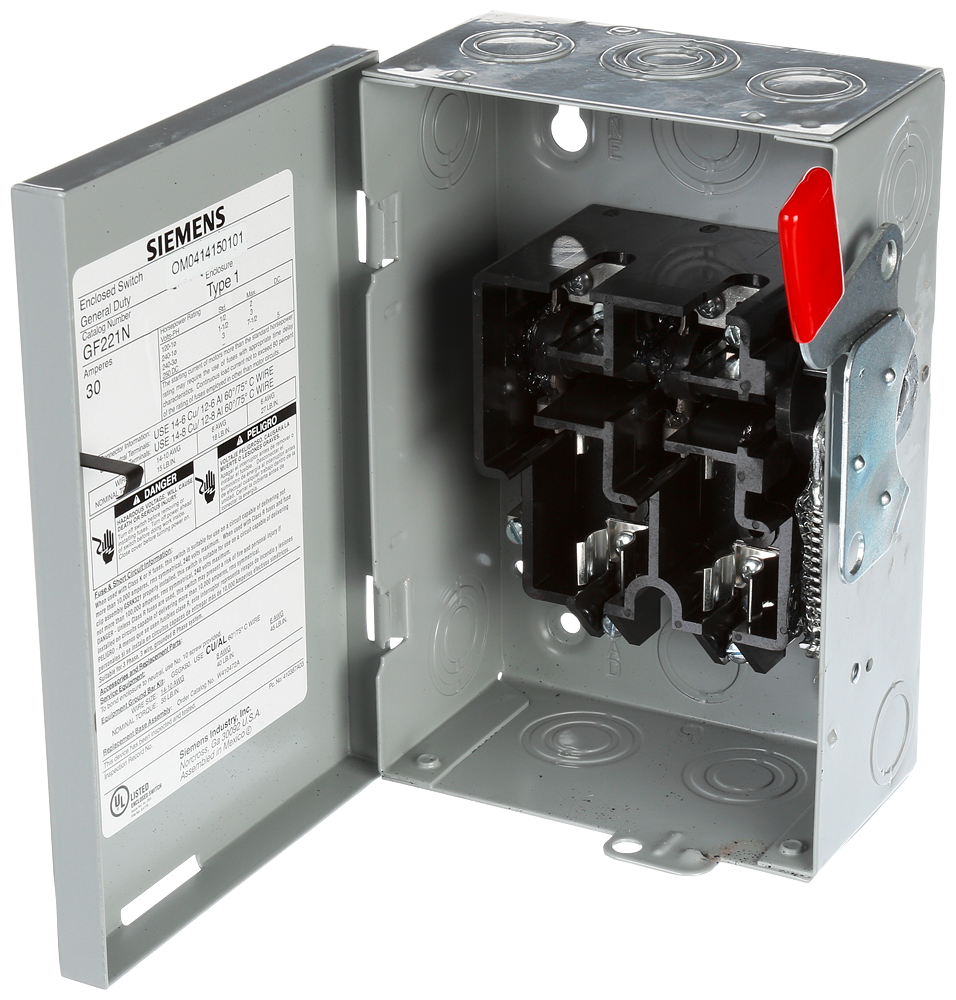

Siemens GF221NA is a fusible safety switch designed for providing reliable circuit isolation and overcurrent protection in industrial applications. It is rated for 240V AC operation with a 30A current capacity, housed in a compact NEMA 1 enclosure measuring 150 x 100 x 220 mm (5.906 x 3.937 x 8.661 inches) and weighing 2.998 lb. The switch is UL listed and operates within a temperature range of -25°C to 70°C (-13°F to 158°F). It is engineered for integration into MEP-compatible frames, offering a high interrupting capacity of 100kA at 240V for robust fault protection in demanding environments.

Key Features & Specifications
  • Type: Fusible Disconnect Safety Switch, VBII Series
  • Voltage Rating: 240V AC
  • Current Rating: 30A
  • Configuration: Single
  • Poles: 2
  • AIC Rating: 100kA @ 240V
  • Switch Style: Fusible
  • NEMA Rating: NEMA 1
  • Temp Rating: -25°C to 70°C (-13°F to 158°F)
  • Dimensions: 150 x 100 x 220 mm (5.906 x 3.937 x 8.661 in)
  • Weight: 2.998 lb
  • Standards: UL Listed
  • Compatible Frames: MEP
  • Country of Origin: Mexico


Product Identification
  • UPC: 804766753602
  • GTIN: 00804766753602
