Westinghouse GD3070 - Molded Case Circuit Breaker 70A 480V 3P
Westinghouse GD3070 - Molded Case Circuit Breaker 70A 480V 3P
Westinghouse GD3070 - Molded Case Circuit Breaker 70A 480V 3P
Westinghouse GD3070 - Molded Case Circuit Breaker 70A 480V 3P
Westinghouse GD3070 - Molded Case Circuit Breaker 70A 480V 3P
Westinghouse GD3070 - Molded Case Circuit Breaker 70A 480V 3P

Westinghouse GD3070 - Molded Case Circuit Breaker 70A 480V 3P

Cutler Hammer
Price
Save $1,292.59
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price

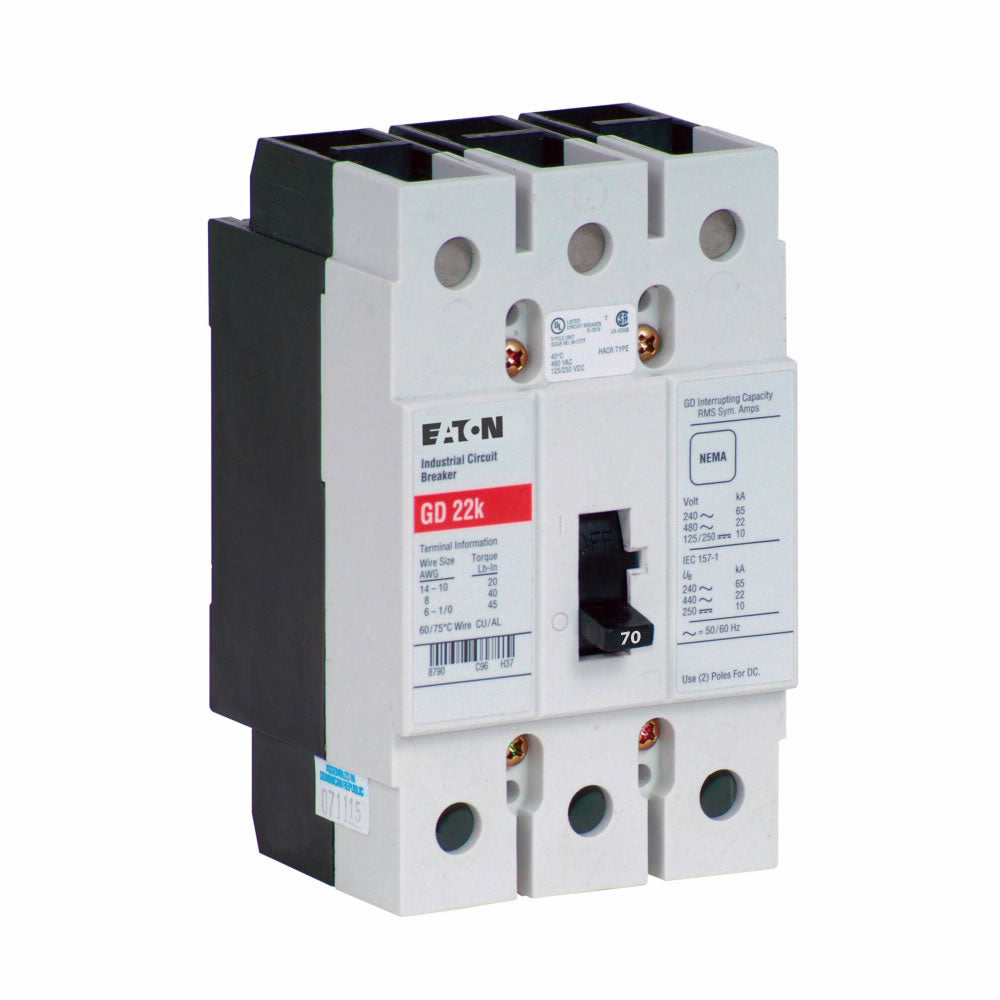

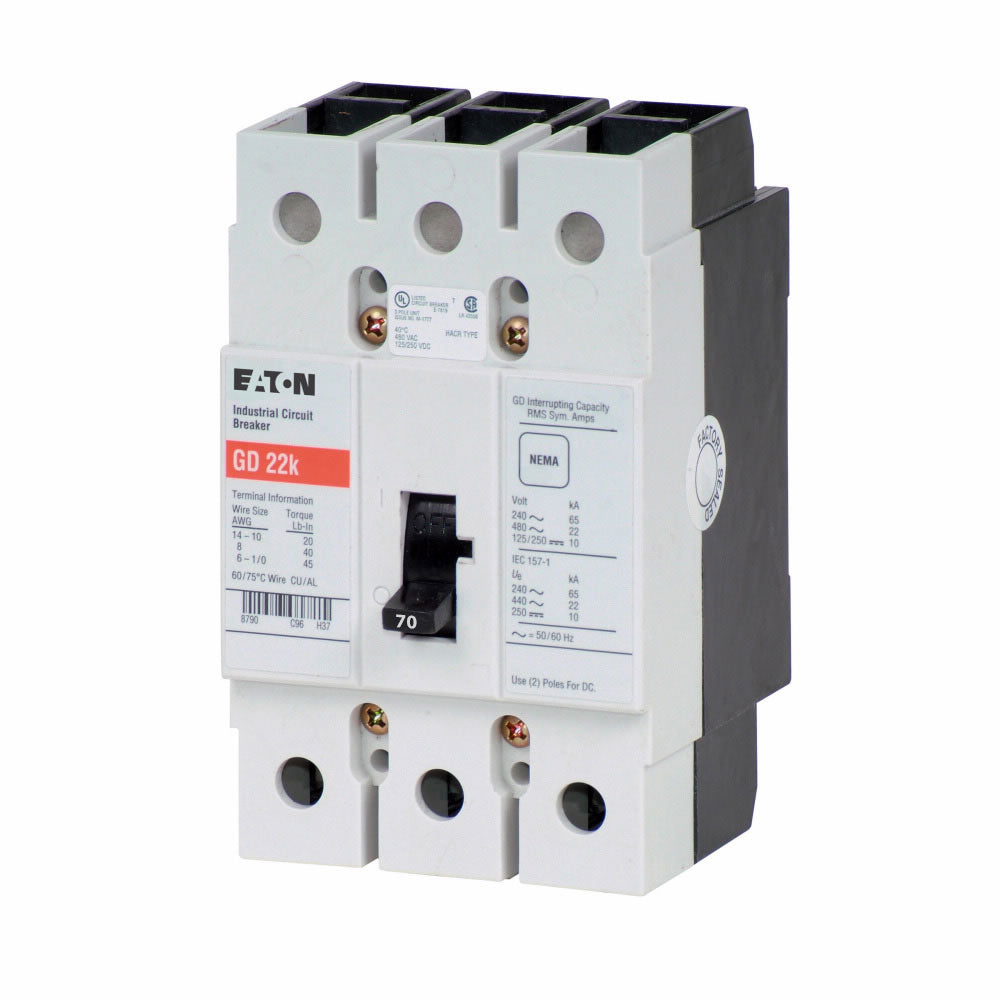

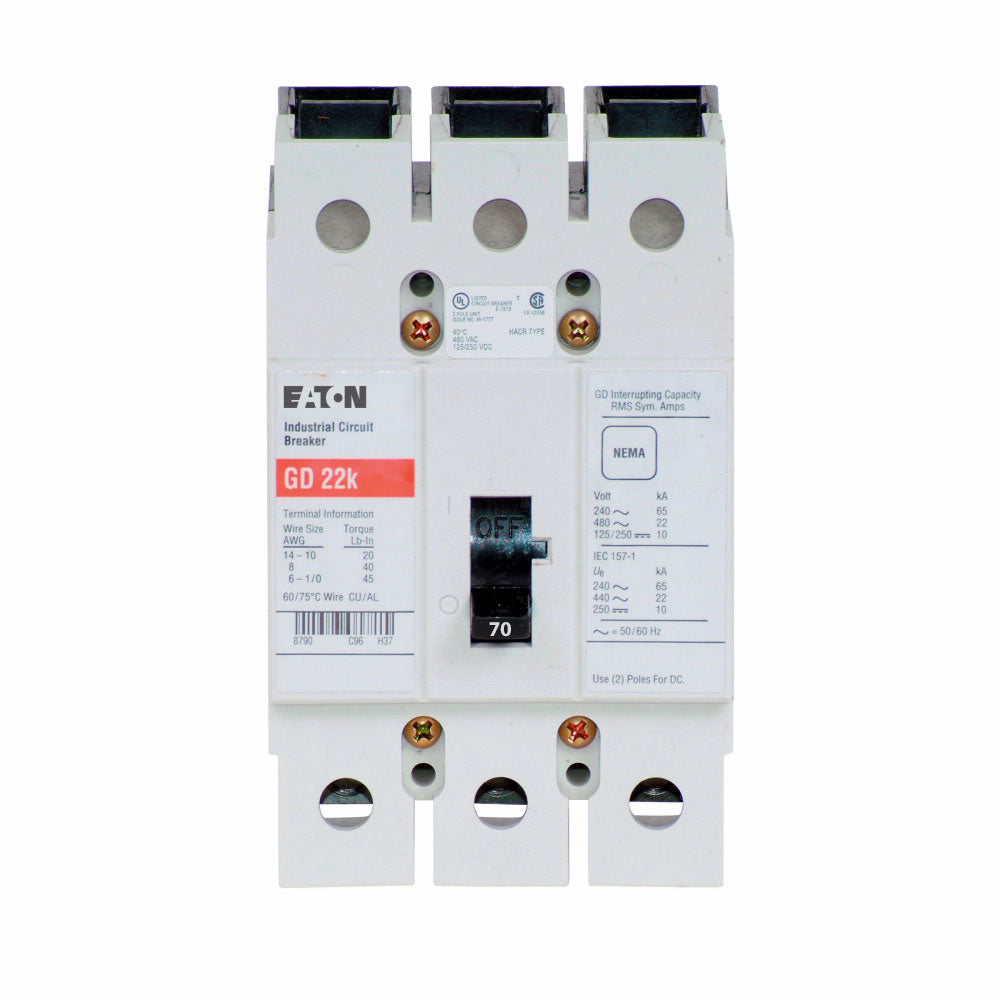

The Westinghouse GD3070 is a molded case circuit breaker designed to provide reliable overcurrent and short-circuit protection for three-phase electrical systems. It features a 70A current rating and a 480V AC voltage rating, housed within a compact G-frame design measuring 2.63" D x 4.88" H x 3" W and weighing 2 lb. This UL-listed device utilizes a thermal-magnetic trip mechanism for both long-time and instantaneous (LI) protection, delivering an interrupting capacity of 22kA at 480V. Its feed-thru connection and robust construction make it suitable for industrial power distribution panels and motor control applications.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Thermal-Magnetic Protection, Series C Family
  • Voltage Rating: 480V AC
  • Current Rating: 70A
  • Dimensions: 2.63 in (Depth) x 4.88 in (Height) x 3 in (Width)
  • Standards: UL Listed
  • Applications: Industrial Power Distribution, Motor Control Centers
  • Switch Type: Circuit Breaker
  • Configuration: Fixed
  • Phase: 3
  • Amperage: 70A
  • AIC Rating: 22kA @ 480V
  • Connection: Feed-Thru
  • Poles: 3
  • Protection: Thermal Magnetic
  • Functions: Long-Time and Instantaneous (LI)
  • Frame Size: G Frame
  • Trip Type: Thermal-Magnetic
  • Certification: UL Listed
  • Country of Origin: Dominican Republic
  • Weight: 2 lb


Product Identification
  • UPC: 786679231180
  • GTIN: 00786679231180
