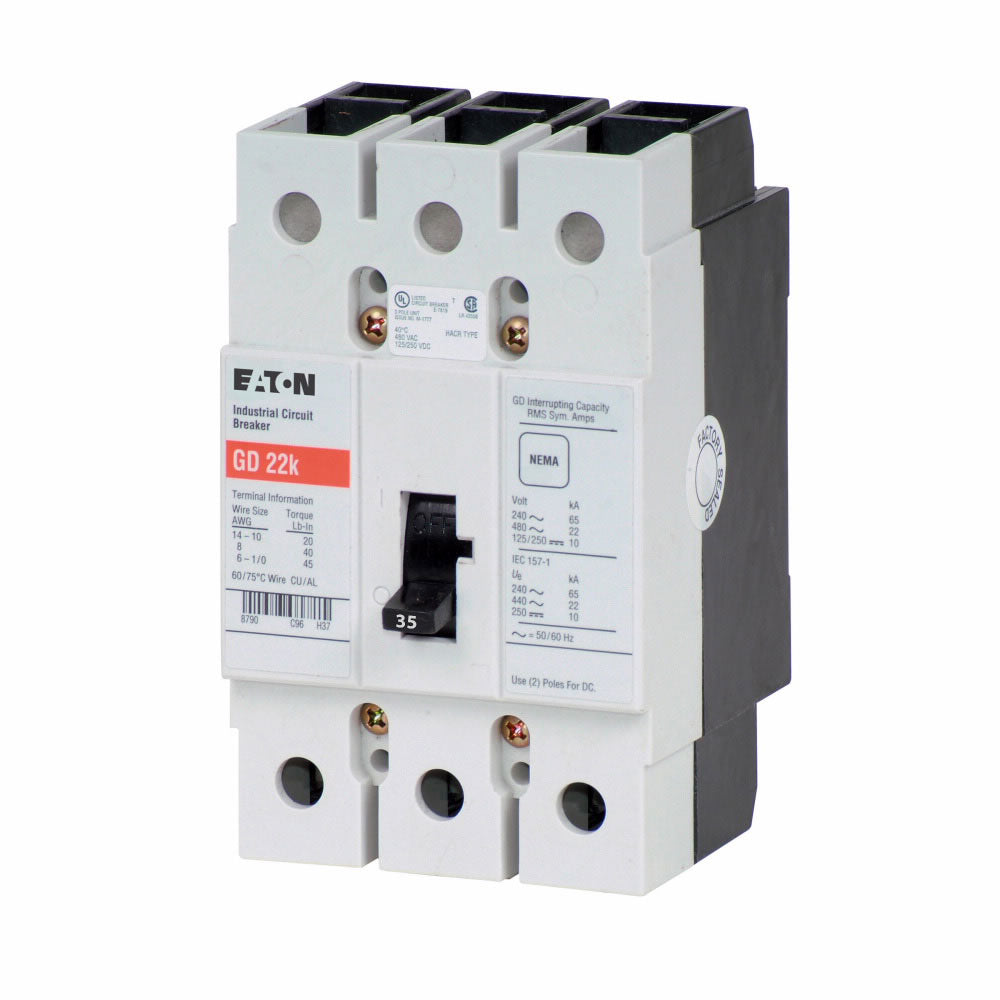

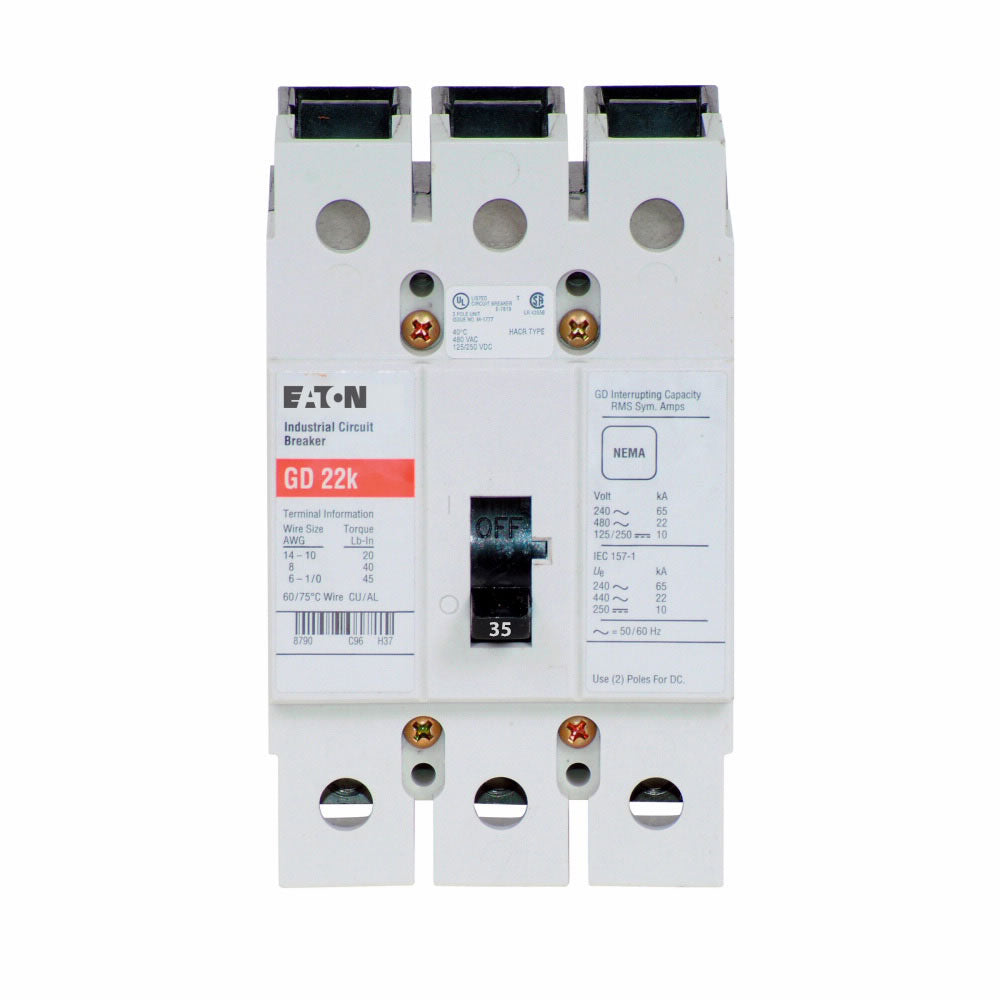

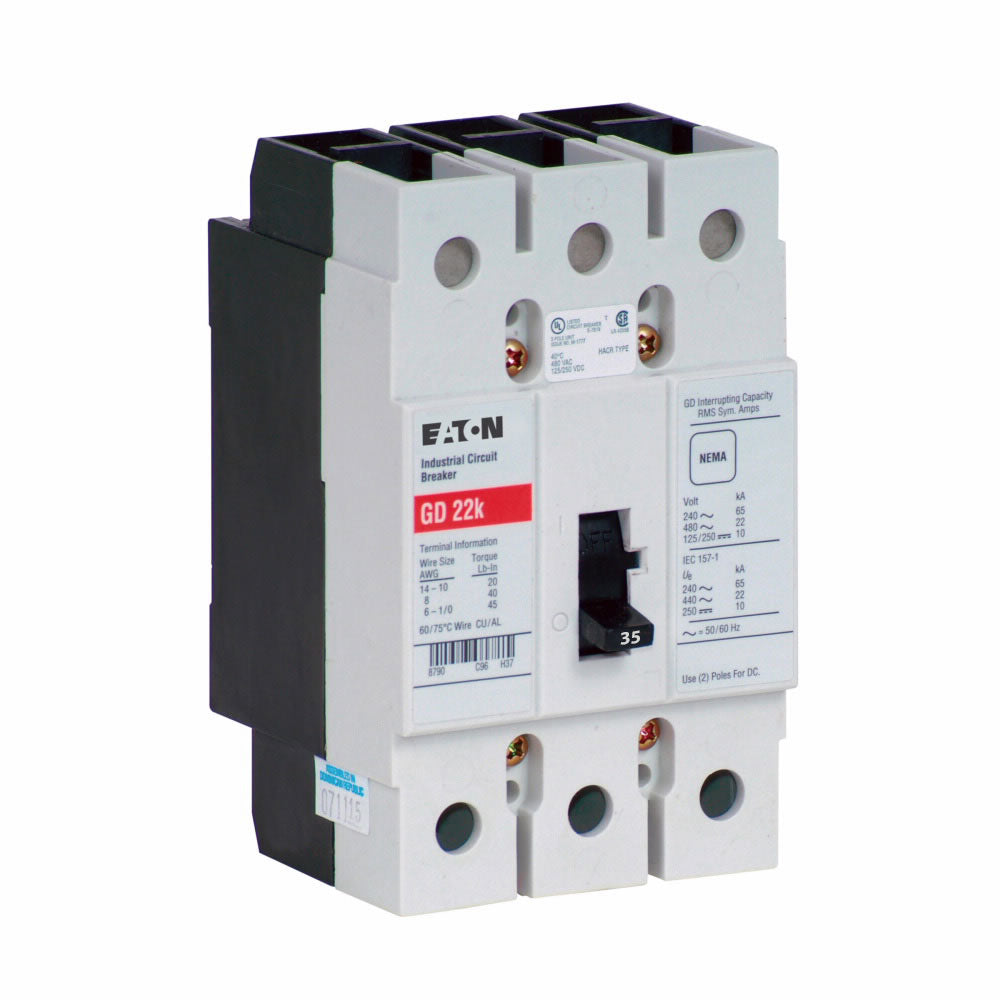

Cutler Hammer GD3035 - Molded Case Circuit Breaker, 35A 3P 480V
Cutler Hammer GD3035 - Molded Case Circuit Breaker, 35A 3P 480V
Cutler Hammer GD3035 - Molded Case Circuit Breaker, 35A 3P 480V
Cutler Hammer GD3035 - Molded Case Circuit Breaker, 35A 3P 480V
Cutler Hammer GD3035 - Molded Case Circuit Breaker, 35A 3P 480V
Cutler Hammer GD3035 - Molded Case Circuit Breaker, 35A 3P 480V

Cutler Hammer GD3035 - Molded Case Circuit Breaker, 35A 3P 480V

Cutler Hammer
Price
Save $632.76
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Cutler Hammer GD3035 is a molded case circuit breaker designed for providing reliable overcurrent protection in three-phase industrial power distribution systems. It features a 35A current rating and a 480V AC voltage rating, housed within a compact G-frame construction measuring 2.63" D x 4.88" H x 3" W and weighing 2.05 lb. The breaker is UL Listed and employs a thermal-magnetic trip unit with long-time and instantaneous functions to ensure protection against both overloads and short circuits with an interrupting capacity of 22kA at 480V. Its three-pole, feed-thru configuration makes it suitable for protecting motors, panelboards, and other electrical equipment in commercial and industrial facilities.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Thermal-Magnetic Protection, Series C, GD Type
  • Voltage Rating: 480V AC
  • Current Rating: 35A
  • Dimensions: 2.63 in (Depth) x 4.88 in (Height) x 3 in (Width)
  • Standards: UL Listed
  • Applications: Industrial power distribution, motor protection, panelboards
  • Switch Type: Circuit Breaker
  • Configuration: Feed-Thru
  • Phase: 3
  • Amperage: 35A
  • AIC Rating: 22kA @ 480V
  • Connection: Feed-Thru
  • Poles: 3
  • Protection: Thermal Magnetic
  • Functions: Long Time and Instantaneous
  • Frame Size: G Frame
  • Weight: 2.05 lb
  • Country of Origin: Dominican Republic


Product Identification
  • UPC: 786679231081
  • GTIN: 00786679231081
