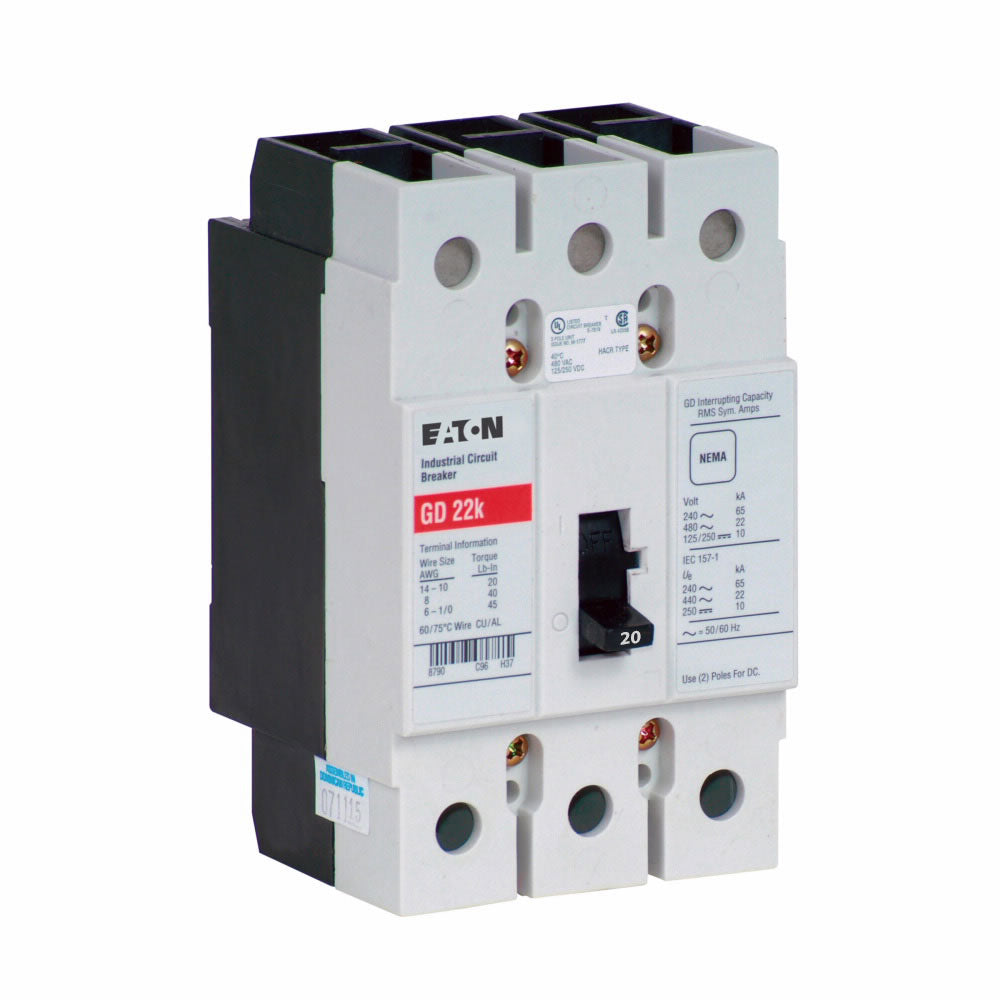

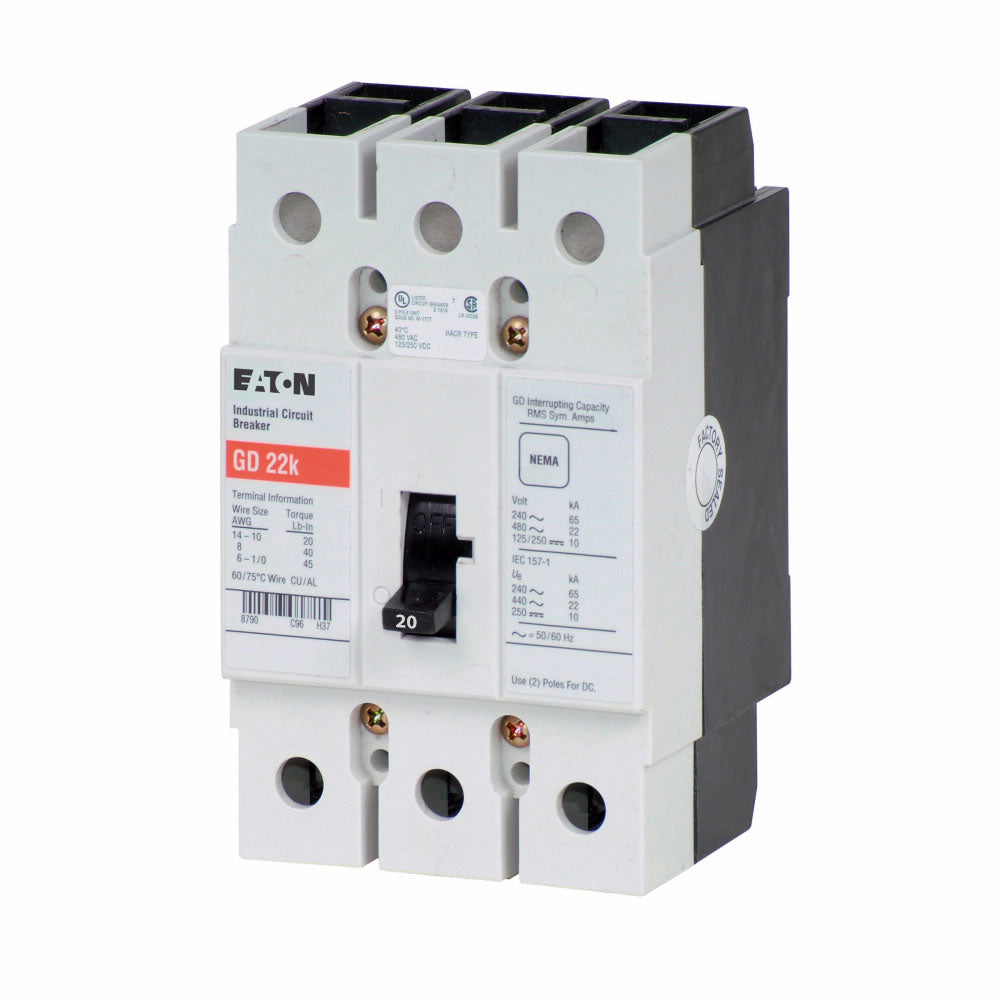

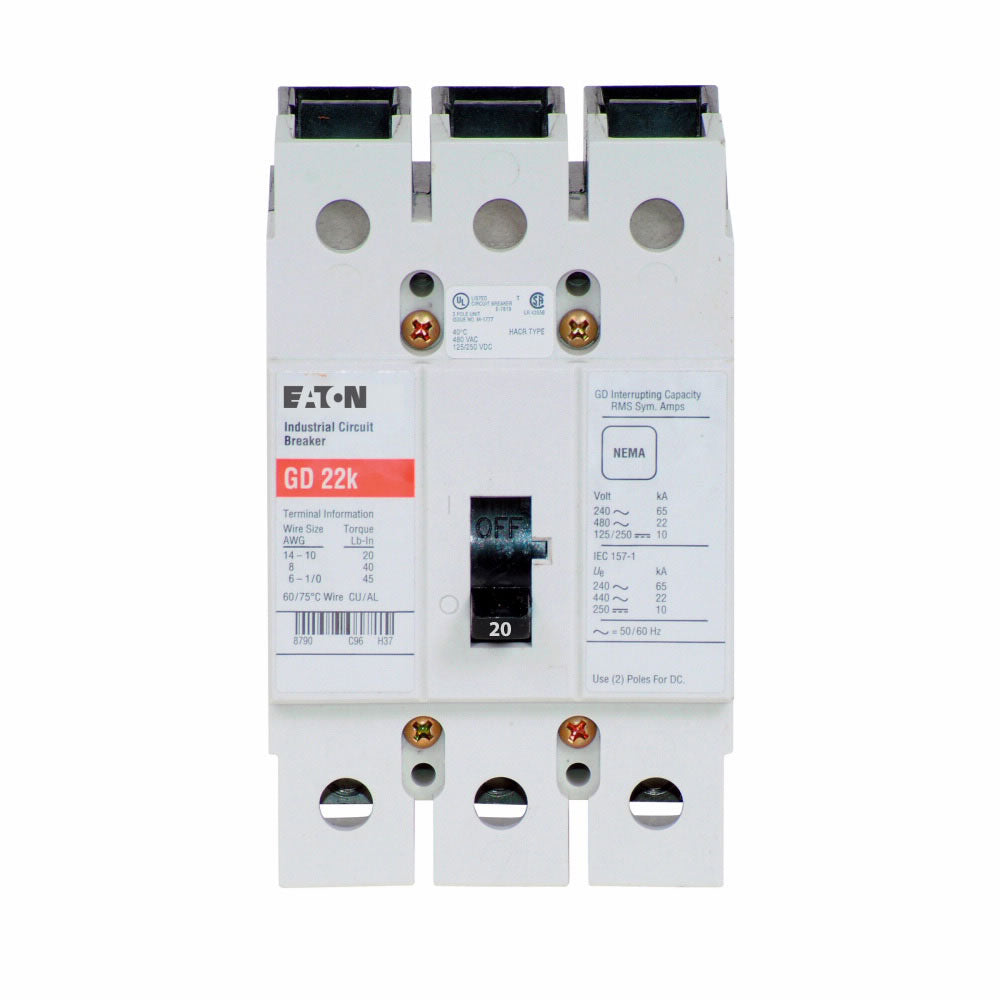

Cutler Hammer GD3020 - Molded Case Circuit Breaker, 20A 480V 3P
Cutler Hammer GD3020 - Molded Case Circuit Breaker, 20A 480V 3P
Cutler Hammer GD3020 - Molded Case Circuit Breaker, 20A 480V 3P
Cutler Hammer GD3020 - Molded Case Circuit Breaker, 20A 480V 3P
Cutler Hammer GD3020 - Molded Case Circuit Breaker, 20A 480V 3P
Cutler Hammer GD3020 - Molded Case Circuit Breaker, 20A 480V 3P

Cutler Hammer GD3020 - Molded Case Circuit Breaker, 20A 480V 3P

Eaton
Price
Save $1,016.54
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Cutler Hammer GD3020 is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in three-phase industrial electrical systems. It features a 20A current rating and a 480V AC voltage rating, housed within a compact G-frame design measuring 2.63" x 4.88" x 3" (LxHxW) and weighing 2 lb. The breaker is UL Listed and employs a thermal-magnetic trip mechanism with long-time and instantaneous (LI) functions, offering an interrupting capacity of 22kA at 480V. Its feed-thru connection and operational temperature range of -25°C to 70°C (-13°F to 158°F) make it suitable for panelboards, switchboards, and industrial control panels.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Thermal-Magnetic Protection, G Frame
  • Voltage Rating: 480V AC
  • Current Rating: 20A
  • Dimensions: 2.63 in (Depth) x 4.88 in (Height) x 3 in (Width)
  • Standards: UL Listed
  • Applications: Panelboards, Switchboards, Industrial Control Panels
  • Switch Type: Circuit Breaker
  • Configuration: Fixed
  • Phase: 3
  • Amperage: 20A
  • AIC Rating: 22kA @ 480V
  • Connection: Feed-Thru
  • Poles: 3
  • Protection: Thermal Magnetic
  • Functions: Long-Time and Instantaneous (LI)
  • Frame Size: G Frame
  • Trip Type: Thermal Magnetic
  • Temp Rating: -25°C to 70°C (-13°F to 158°F)
  • Weight: 2 lb
  • Family: Series C
  • Country of Origin: Dominican Republic


Product Identification
  • UPC: 786679231029
  • GTIN: 00786679231029
