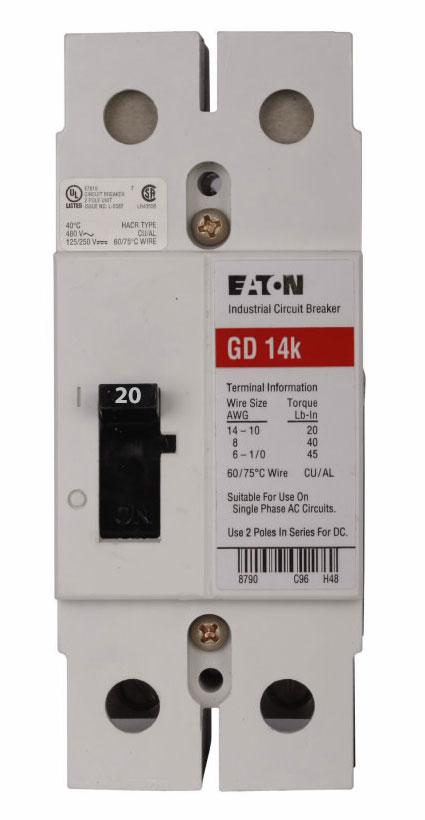

Cutler Hammer GD2020 - Molded Case Circuit Breaker, 20A 480V 2P
Cutler Hammer GD2020 - Molded Case Circuit Breaker, 20A 480V 2P

Cutler Hammer GD2020 - Molded Case Circuit Breaker, 20A 480V 2P

Eaton
Price
Save $224.56
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Cutler Hammer GD2020 is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in industrial and commercial electrical systems. It features a 20A current rating and a 480V AC voltage rating, suitable for single-phase applications. The compact, feed-thru unit is constructed with a G frame size, measuring 2.63 in (D) x 4.88 in (H) x 2 in (W) and weighing 1.37 lb, and operates within a temperature range of -25 to 70 °C. It is UL Listed and provides protection through thermal-magnetic trip functions with long-time and instantaneous tripping, offering an interrupting capacity of 14kA at 480V AC. This breaker is typically applied in panelboards, switchboards, and motor control centers for branch circuit protection.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Thermal-Magnetic Protection, Feed-Thru Connection
  • Voltage Rating: 480V AC
  • Current Rating: 20A
  • Dimensions: 2.63 in (Depth) x 4.88 in (Height) x 2 in (Width)
  • Weight: 1.37 lb
  • Standards: UL Listed
  • Applications: Industrial/Commercial Panelboards, Switchboards, Motor Control Centers
  • Switch Type: Circuit Breaker
  • Configuration: Fixed
  • Phase: 1
  • Poles: 2
  • AIC Rating: 14kA @ 480V AC
  • Connection: Feed-Thru
  • Protection: Thermal Magnetic
  • Functions: Long Time and Instantaneous Trip
  • Frame Size: G Frame
  • Trip Type: Thermal Magnetic
  • Temp Rating: -25 to 70 °C (-13 to 158 °F)
  • Family: Series C
  • Country of Origin: Dominican Republic


Product Identification
  • UPC: 786679118108
  • GTIN: 00786679118108
