Cutler Hammer
Price
Save $-7.78
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price

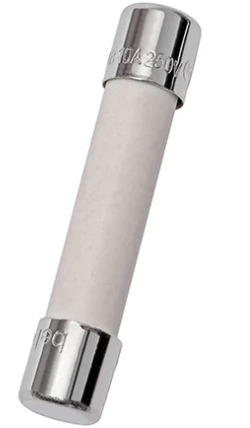

Cutler Hammer GAB2-1/2 is a low-voltage, fast-acting fuse designed for overcurrent protection in industrial control circuits and equipment. It features a 250V AC voltage rating and a 2A current rating, with a high 100,000-ampere interrupting capacity at its rated voltage. The fuse is constructed as a single-barrel, ferrule-connected device with a compact 1-1/2 inch length and 0.25-inch diameter, weighing 0.006 lb. It is certified to UL and CSA standards, ensuring reliable performance in demanding applications such as protecting transformers, motors, and control panels.

Key Features & Specifications
  • Type: GAB Series, Fast-Acting, Low-Voltage Fuse, Ferrule Connection
  • Voltage Rating: 250V AC
  • Current Rating: 2A
  • Dimensions: 1-1/2 in Length, 0.25 in Diameter
  • Standards: UL, CSA Certified
  • AIC Rating: 100,000A @ 250V AC
  • Connection: Ferrule
  • Barrels: 1
  • Velocity: Fast Acting
  • Weight: 0.006 lb


Product Identification
  • UPC: 078200176892
  • GTIN: 00782001768928
