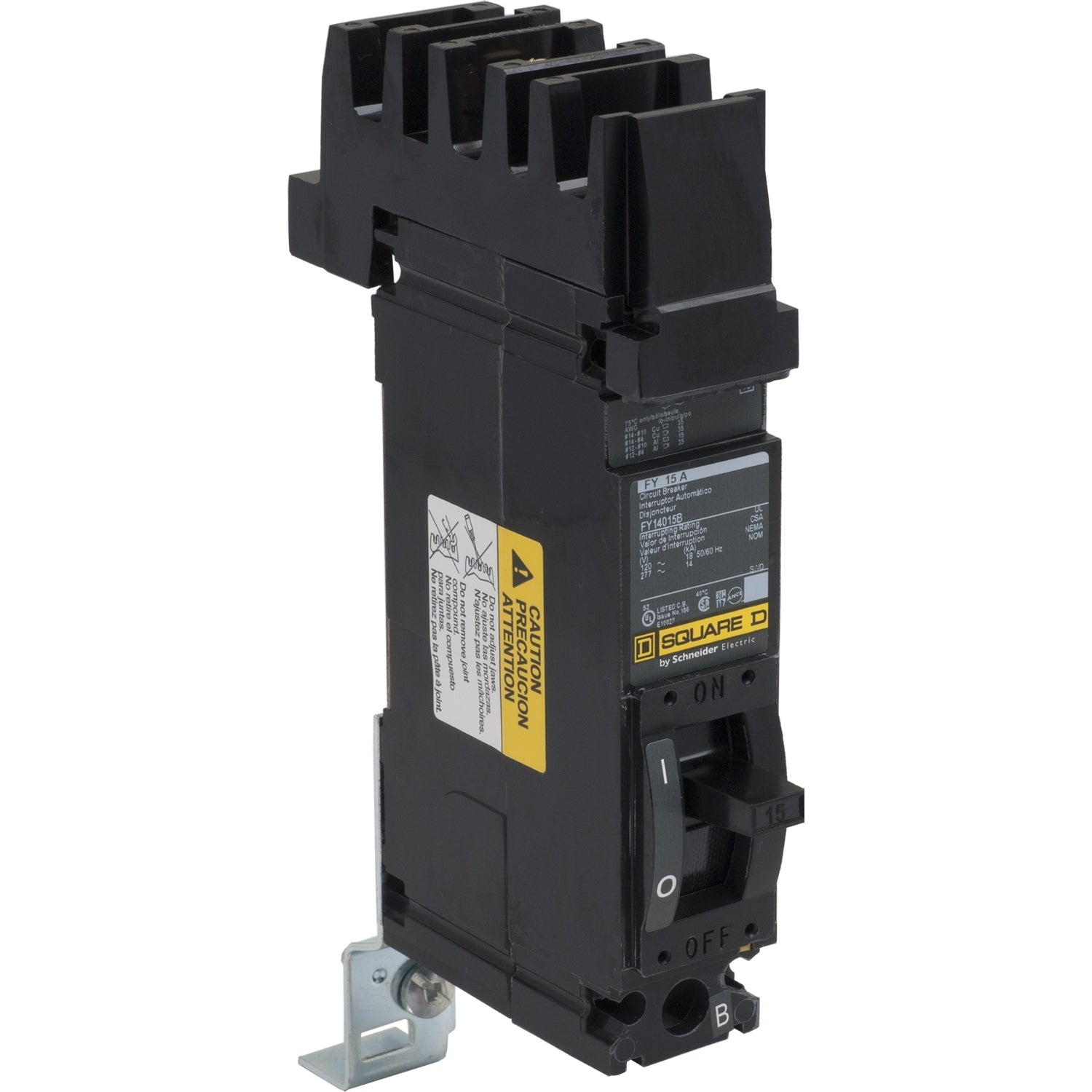

Square D FY14015B - Molded Case Circuit Breaker 15A 277V
Square D FY14015B - Molded Case Circuit Breaker 15A 277V

Square D FY14015B - Molded Case Circuit Breaker 15A 277V

Square D
Price
Save $-0.34
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Square D FY14015B is a molded case circuit breaker designed for providing reliable overcurrent protection in industrial and commercial electrical systems. It features a 15A current rating and a 277V AC voltage rating for single-phase applications, housed in a compact F-frame measuring 162.6 mm H x 38.1 mm W x 104.9 mm D and weighing 2 lb. The breaker utilizes a thermal-magnetic trip unit with long-time and instantaneous (LI) functions and offers a 14kA interrupting capacity at 240V, operating reliably within a temperature range of -25 to 70 °C. Its I-Line style plug-in connection facilitates quick installation in compatible panelboards, making it suitable for protecting branch circuits in lighting, HVAC, and general power distribution.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Thermal-Magnetic Protection with Long-Time and Instantaneous (LI) Trip Functions
  • Voltage Rating: 277V AC
  • Current Rating: 15A
  • Dimensions: 162.6 mm H x 38.1 mm W x 104.9 mm D (6.4 in x 1.5 in x 4.13 in)
  • Standards: Designed for industrial compliance
  • Applications: Industrial and commercial branch circuit protection for lighting, HVAC, and power distribution
  • Switch Type: Circuit Breaker
  • Configuration: Plug-In
  • Temp Rating: -25 to 70 °C (-13 to 158 °F)
  • Shipping Dimensions: As product dimensions
  • Phase: 1
  • Voltage: 277V
  • Amperage: 15A
  • AIC rating: 14kA @ 240V
  • Connection: I-Line Style Plug-In
  • Poles: 1
  • Protection: Thermal Magnetic
  • Functions: LI - Long-Time and Instantaneous Trip
  • Frame Size: F Frame
  • Trip Type: Thermal-Magnetic
  • Panel Type: Compatible I-Line Panelboards
  • Breaker Type: Molded Case
  • Mounting: Plug-In
  • Hz: 50/60 Hz typical
  • Enclosure: Molded Case
  • Certification: Industry Standard
  • Circuit Breaker Mounting Style: Plug-In
  • Terminal Connection: I-Line Bus Connection
  • Frequency Rating: 50/60 Hz
  • Phase Connection: Single-Phase
  • Standards: Industrial
  • Compatible Frames: I-Line Panelboards
  • Installation Type: Plug-In
  • Breaker Frame: F Frame


Product Identification
  • UPC: 785901010050
  • GTIN: 00785901010050
