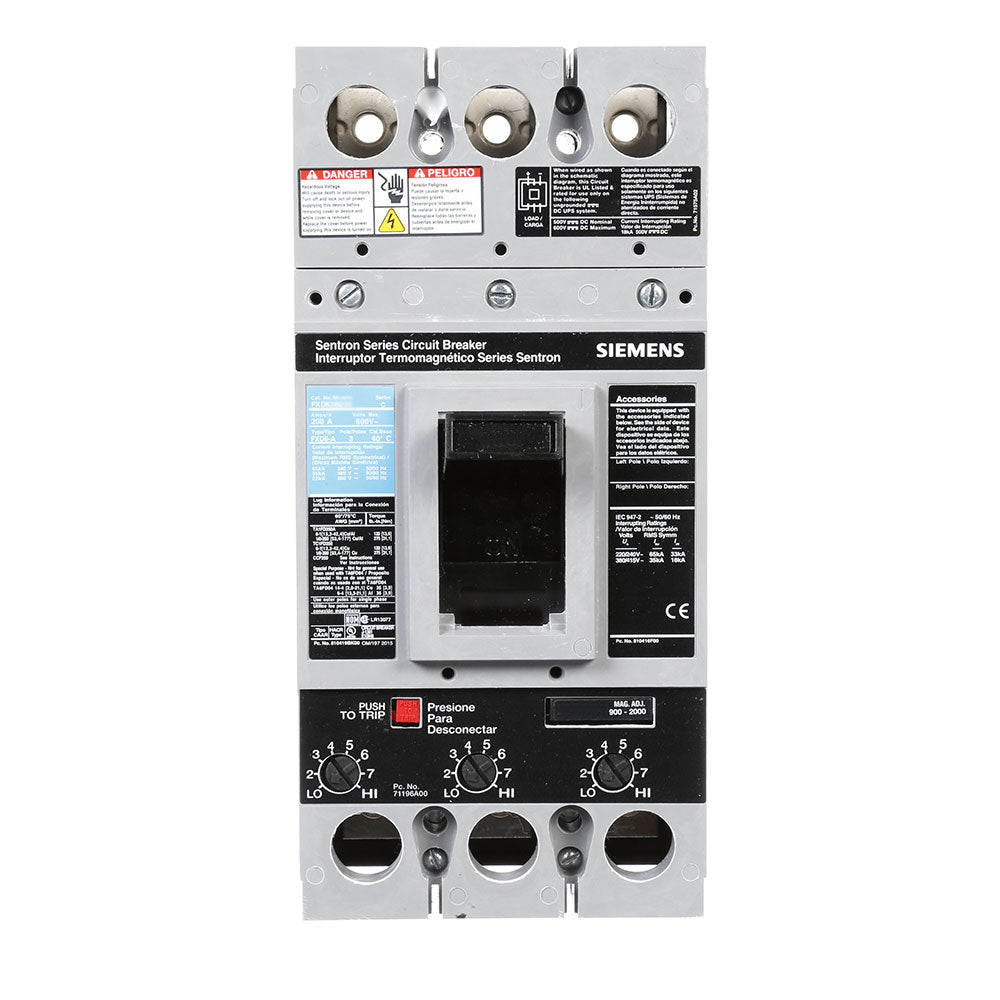

Siemens FXD63S250A - Molded Case Circuit Breaker 250A 600V
Siemens FXD63S250A - Molded Case Circuit Breaker 250A 600V

Siemens FXD63S250A - Molded Case Circuit Breaker 250A 600V

Siemens
Price
Save $6,415.75
/
Condition
  • Low stock - 3 items left
  • Backordered, shipping soon
Call for Price
Siemens FXD63S250A is a molded case circuit breaker from the Sentron Series designed for non-automatic circuit isolation and switching in industrial power distribution systems. It features a 600V AC voltage rating and a 250A current rating, housed within a compact FD frame measuring 150mm wide by 250mm high by 170mm deep (5.906" x 9.843" x 6.693") and weighing 8.812 lb. This three-pole, bolt-on device is constructed for reliable operation in ambient temperatures from -25°C to 70°C (-13°F to 158°F) and complies with UL, CSA, and IEC standards, including a 35kA interrupting capacity at 480V. It is typically applied in panelboards and switchboards where a manually operated disconnect is required, noting that it provides no overcurrent protection and lugs are not included.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Non-Automatic (Disconnect Switch), FXD Type, FD Frame
  • Voltage Rating: 600V AC
  • Current Rating: 250A
  • Dimensions: 150 x 250 x 170 mm (5.906" W x 9.843" H x 6.693" D)
  • Standards: UL, CSA, IEC
  • Applications: Industrial power distribution, panelboards, switchboards
  • Switch Type: Non-Automatic
  • Configuration: Bolt-On Connection
  • Temp Rating: -25°C to 70°C (-13°F to 158°F)
  • Phase: 3
  • AIC rating: 35kA @ 480V
  • Connection: Bolt-On
  • Poles: 3
  • Protection: Non-Automatic (Disconnect Only)
  • Functions: No Overcurrent Protection
  • Frame Size: FD Frame
  • Certification: UL, CSA, IEC
  • Family: Sentron Series
  • Weight: 8.812 lb


Product Identification
  • UPC: 783643212367
  • GTIN: 00783643212367
