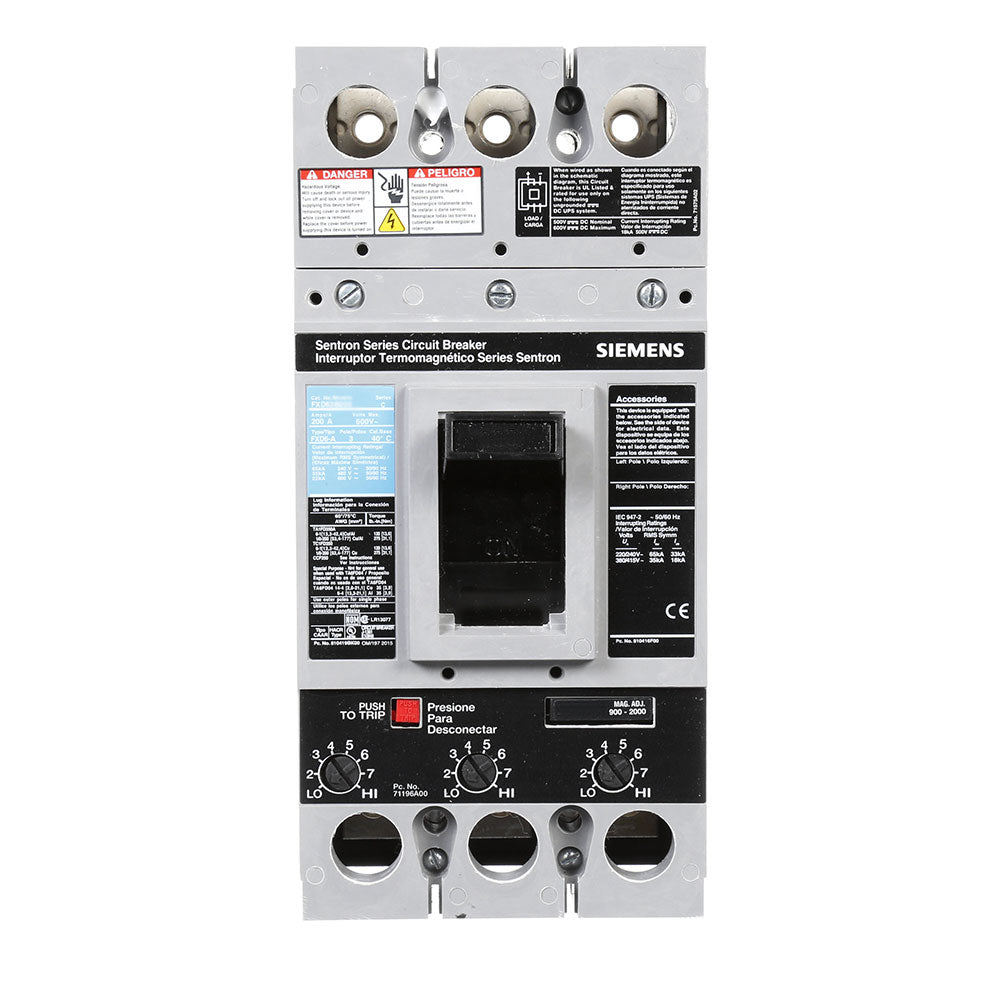

Siemens FXD63L150 - Molded Case Circuit Breaker, 150A, 600V
Siemens FXD63L150 - Molded Case Circuit Breaker, 150A, 600V

Siemens FXD63L150 - Molded Case Circuit Breaker, 150A, 600V

Siemens
Price
Save $11,429.90
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Siemens FXD63L150 is a molded case circuit breaker from the Sentron Series designed to provide magnetic-only instantaneous protection against short-circuit faults in three-phase electrical systems. It features a 150A current rating and a 600V AC voltage rating, housed within a compact FD frame with bolt-on connections and dimensions of 5.906" W x 9.843" H x 6.693" D. The breaker is constructed for reliable operation in ambient temperatures from -25°C to 70°C and complies with UL, CSA, and IEC standards. Its 35kA interrupting capacity at 480V AC makes it suitable for industrial power distribution panels, switchboards, and motor control centers.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Magnetic-Only Protection (Instantaneous Trip), FXD Type, FD Frame
  • Voltage Rating: 600V AC
  • Current Rating: 150A
  • Dimensions: 5.906" W x 9.843" H x 6.693" D (150mm x 250mm x 170mm)
  • Weight: 8.501 lb (3.856 kg)
  • Standards: UL, CSA, IEC Certified
  • Applications: Industrial Power Distribution, Switchboards, Motor Control Centers
  • Switch Type: Circuit Breaker
  • Configuration: Fixed
  • Phase: 3
  • Poles: 3
  • Connection: Bolt-On
  • Protection: Magnetic Only
  • Functions: Instantaneous (I)
  • Frame Size: FD Frame
  • Trip Type: Magnetic Instantaneous
  • AIC Rating: 35kA @ 480V AC
  • Temp Rating: -25°C to +70°C (-13°F to 158°F)
  • Mounting: Fixed
  • Certification: UL, CSA, IEC
  • Family: Sentron Series
  • Country of Origin: Mexico


Product Identification
  • UPC: 783643212268
  • GTIN: 00783643212268
