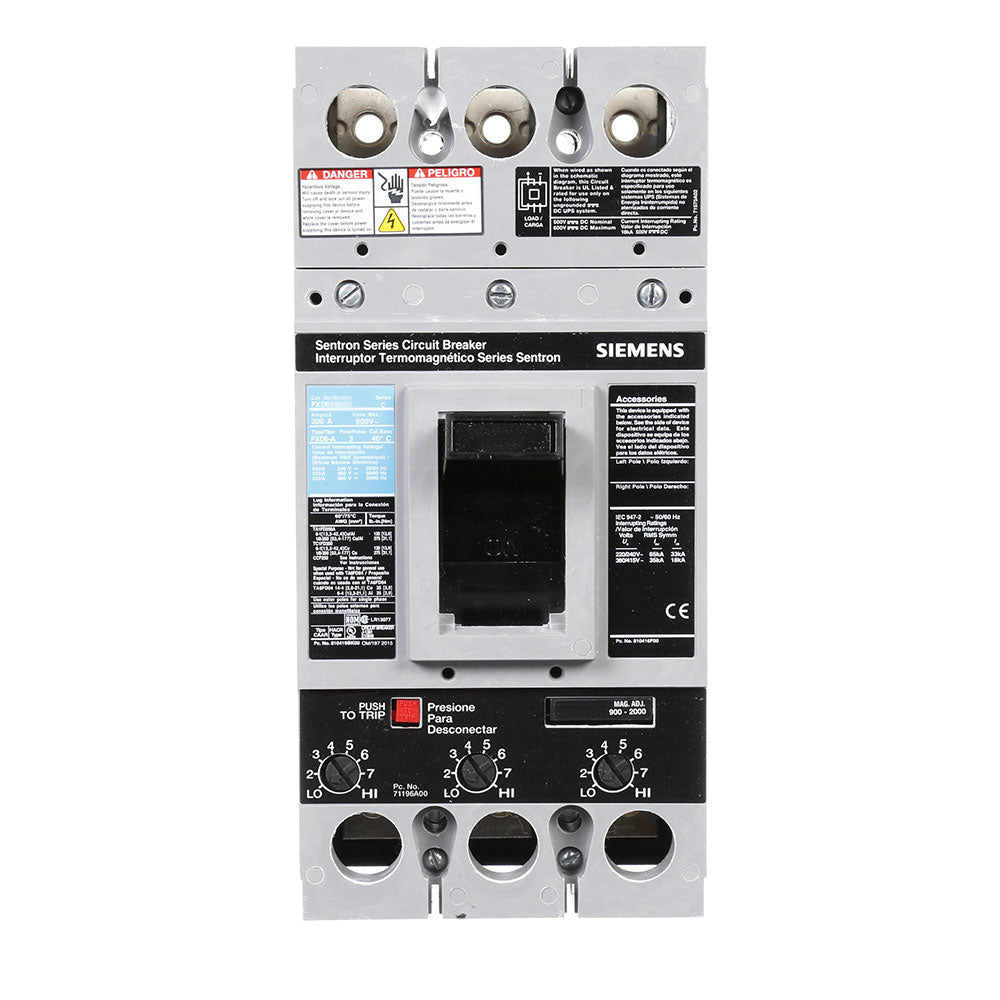

Siemens FXD63B175 is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in three-phase industrial power distribution systems. It features a 175A continuous current rating and a 600V AC voltage rating, housed within a compact 250A/FD frame with dimensions of 150mm x 250mm x 170mm (W x H x D) and a weight of 8.001 lb. This thermal-magnetic breaker, part of the Sentron Series, offers both long-time and instantaneous trip functions, is constructed for bolt-on connection with lug terminals, and complies with UL, CSA, and IEC standards for use in panel types including S4, P4, SPP, F1, FC1, FCII, CDP-5, CDP-6, SB1-3, S5, P5, SPP/FPP, and F2.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Thermal Magnetic Protection, Standard Breaker Type
  • Voltage Rating: 600V AC
  • Current Rating: 175A
  • Frame Size: 250A/FD
  • Poles: 3
  • AIC Rating: 35kA at 480V
  • Connection: Bolt-On
  • Terminal Connection: Lug (lugs not included)
  • Phase Connection: ABC
  • Functions: Long Time and Instantaneous Trip
  • Dimensions: 150mm x 250mm x 170mm (5.906" x 9.843" x 6.693")
  • Weight: 8.001 lb
  • Operating Temperature: -25°C to 70°C (-13°F to 158°F)
  • Standards & Certification: UL Listed, CSA, IEC
  • Panel Type Compatibility: S4, P4, SPP, F1, FC1, FCII, CDP-5, CDP-6, SB1-3, S5, P5, SPP/FPP, F2
  • Family: Sentron Series
  • Country of Origin: Mexico


Product Identification
  • UPC: 783643211261
  • GTIN: 00783643211261
