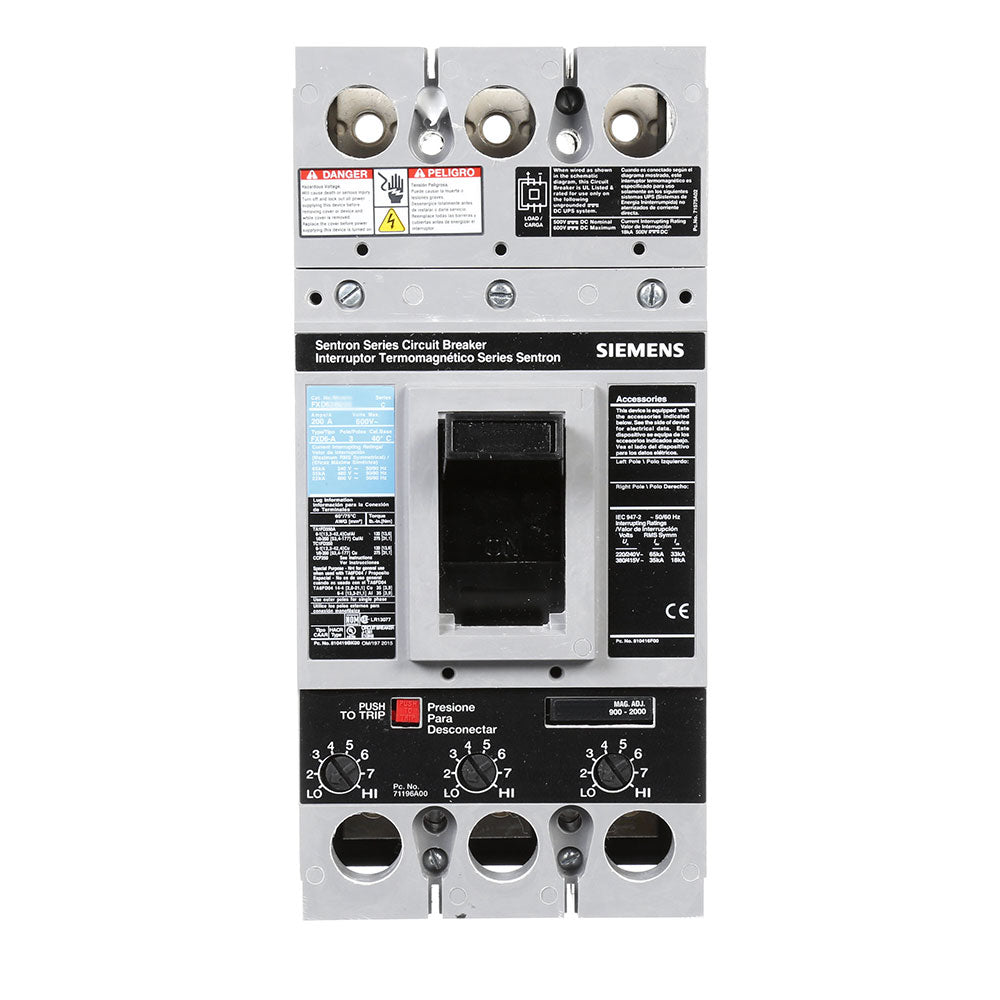

Siemens FXD63B110 - Molded Case Circuit Breaker, 110A, 600V
Siemens FXD63B110 - Molded Case Circuit Breaker, 110A, 600V

Siemens FXD63B110 - Molded Case Circuit Breaker, 110A, 600V

Siemens
Price
Save $7,192.26
/
Condition
  • Low stock - 1 item left
  • Backordered, shipping soon
Call for Price
Siemens FXD63B110 is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in three-phase industrial power distribution systems. It features a 110A continuous current rating and a 600V AC voltage rating, housed within a compact FD frame with dimensions of 5.906" W x 9.843" H x 6.693" D and a weight of 7.899 lb. The breaker utilizes a thermal-magnetic trip unit for long-time and instantaneous (LI) protection, is certified to UL, CSA, and IEC standards, and offers a 35kA interrupting capacity at 480V AC. Its bolt-on connection and compatibility with various panel types like S4, P4, and F2 make it suitable for installation in industrial control panels, switchboards, and motor control centers.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Standard, Thermal-Magnetic Protection
  • Voltage Rating: 600V AC
  • Current Rating: 110A
  • Frame Size: FD Frame
  • Poles: 3
  • Phase: 3-Phase
  • AIC Rating: 35kA @ 480V AC
  • Connection: Bolt-On
  • Protection Functions: Long-Time and Instantaneous (LI)
  • Trip Type: Thermal Magnetic
  • Breaker Type: Standard
  • Panel Type Compatibility: S4, P4, SPP, F1, FC1, FCII, CDP-5, CDP-6, SB1-3, S5, P5, SPP/FPP, F2
  • Operating Temperature: -25°C to +70°C (-13°F to 158°F)
  • Certification: UL, CSA, IEC
  • Dimensions (W x H x D): 5.906" x 9.843" x 6.693" (150mm x 250mm x 170mm)
  • Weight: 7.899 lb
  • Family: Sentron Series
  • Country of Origin: Mexico
  • Additional Info: Lugs are not included and must be purchased separately


Product Identification
  • UPC: 783643211230
  • GTIN: 00783643211230
