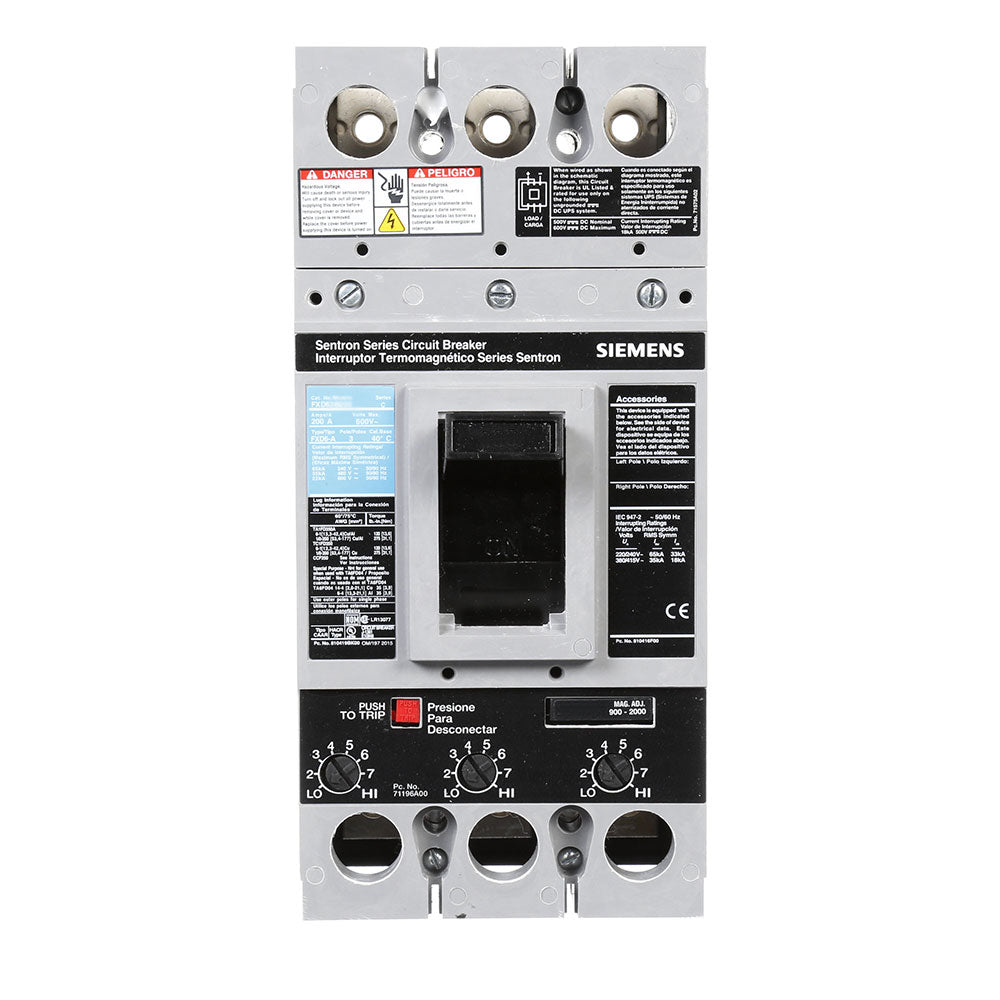

Siemens FXD63B090 - Molded Case Circuit Breaker, 90A, 600V
Siemens FXD63B090 - Molded Case Circuit Breaker, 90A, 600V

Siemens FXD63B090 - Molded Case Circuit Breaker, 90A, 600V

Siemens
Price
Save $3,841.60
/
Condition
  • Low stock - 1 item left
  • Backordered, shipping soon
Call for Price
Siemens FXD63B090 is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in three-phase industrial power distribution systems. It features a 90A continuous current rating and a 600V voltage rating, housed within a compact FD frame with dimensions of 5.906" W x 9.843" H x 6.693" D and a weight of 8.001 lb. The breaker is certified to UL, CSA, and IEC standards and offers thermal-magnetic protection with both long-time and instantaneous trip functions for a broad operating temperature range of -25°C to 70°C. Its 35kA interrupting capacity at 480V and compatibility with various panel types including S4, P4, SPP, and F2 make it suitable for use in industrial control panels, switchboards, and power distribution equipment.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Standard, Thermal-Magnetic Protection
  • Voltage Rating: 600V AC
  • Current Rating: 90A
  • Frame Size: FD Frame
  • Poles: 3
  • Phase: 3-Phase
  • AIC Rating: 35kA @ 480V AC
  • Connection: Bolt-On
  • Functions: Long Time and Instantaneous Trip
  • Panel Type Compatibility: S4, P4, SPP, F1, FC1, FCII, CDP-5, CDP-6, SB1-3, S5, P5, SPP/FPP, F2
  • Dimensions: 5.906" W x 9.843" H x 6.693" D (150 mm x 250 mm x 170 mm)
  • Weight: 8.001 lb (3.63 kg)
  • Operating Temperature: -25°C to +70°C (-13°F to 158°F)
  • Certification: UL Listed, CSA Certified, IEC Compliant
  • Family: Sentron Series
  • Country of Origin: Mexico
  • Additional Info: Lugs are not included and must be purchased separately


Product Identification
  • UPC: 783643211216
  • GTIN: 00783643211216
