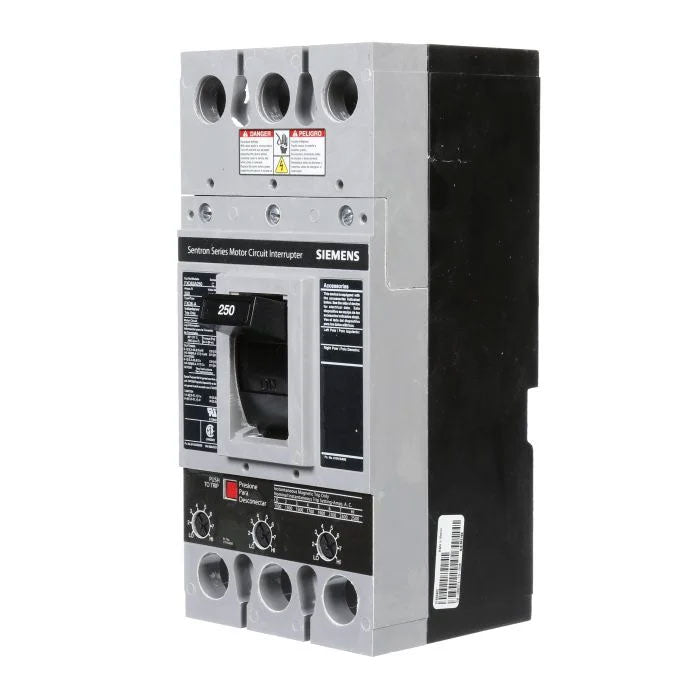

Siemens FXD63A250 - Molded Case Circuit Breaker, 250A, 600V
Siemens FXD63A250 - Molded Case Circuit Breaker, 250A, 600V

Siemens FXD63A250 - Molded Case Circuit Breaker, 250A, 600V

Siemens
Price
Save $12,106
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Siemens FXD63A250 is a molded case circuit breaker from the Sentron Series designed to provide instantaneous magnetic-only protection for three-phase industrial power circuits. It features a 250A current rating and a 600V voltage rating, housed within a compact FD frame with bolt-on connections and dimensions of 150mm x 250mm x 170mm (W x H x D). The breaker is certified to UL, CSA, and IEC standards and offers an interrupting capacity of 35kA at 480V AC, operating reliably in ambient temperatures from -25°C to 70°C. Its robust construction makes it suitable for critical applications in panelboards, switchboards, and industrial control panels where reliable short-circuit protection is required.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Magnetic-Only Protection, Instantaneous Trip
  • Voltage Rating: 600V AC
  • Current Rating: 250A
  • Dimensions: 150mm x 250mm x 170mm (W x H x D) / 5.906" x 9.843" x 6.693"
  • Weight: 8.915 lb
  • Standards: UL, CSA, IEC
  • Applications: Panelboards, Switchboards, Industrial Control Panels
  • Switch Type: Circuit Breaker
  • Configuration: Fixed
  • Phase: 3
  • Poles: 3
  • Connection: Bolt-On
  • Protection: Magnetic Only
  • Functions: Instantaneous
  • Frame Size: FD Frame
  • Trip Type: Magnetic
  • AIC rating: 35kA @ 480V AC
  • Temp Rating: -25°C to 70°C (-13°F to 158°F)
  • Certification: UL, CSA, IEC
  • Family: Sentron Series
  • Country of Origin: Mexico


Product Identification
  • UPC: 783643212282
  • GTIN: 00783643212282
