Siemens FXD62B250 - Molded Case Breaker, 250A 600V 2-Pole
Siemens FXD62B250 - Molded Case Breaker, 250A 600V 2-Pole

Siemens FXD62B250 - Molded Case Breaker, 250A 600V 2-Pole

Siemens
Price
Save $9,890.74
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price

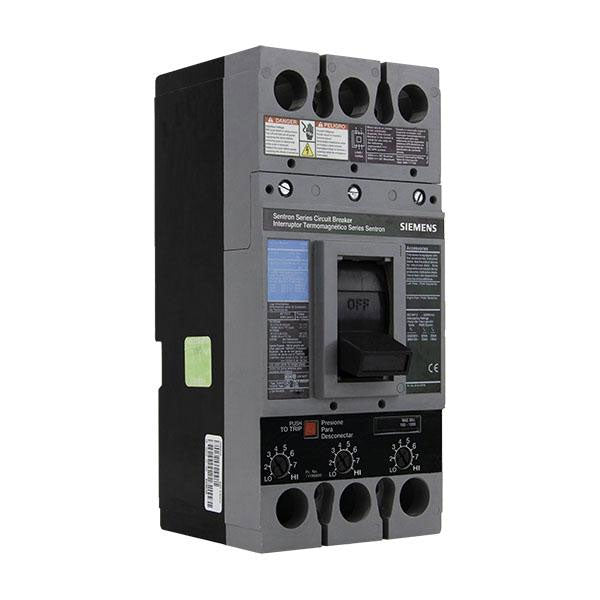

Siemens FXD62B250 is a molded case circuit breaker designed for reliable overcurrent protection in industrial power distribution systems. It features a 250A current rating and a 600V AC voltage rating, housed within a compact 4.5" x 9.5" (114mm x 241mm) frame with a bolt-on lug connection for secure installation. This thermal-magnetic breaker provides both long-time and instantaneous (LI) trip functions, is UL Listed, CSA, and IEC certified, and operates effectively in temperatures from -25°C to 70°C. It is engineered for use in single-phase applications within SB switchboards and Sentron panelboards, offering a 35kA interrupting capacity at 480V AC to safeguard electrical circuits.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Thermal-Magnetic Protection, Standard Type
  • Voltage Rating: 600V AC
  • Current Rating: 250A
  • Frame Size: 250A/FD
  • Poles: 2
  • AIC Rating: 35kA @ 480V AC
  • Phase: 1
  • Connection: Bolt-On, Lug Terminal
  • Functions: LI (Long-Time and Instantaneous Trip)
  • Dimensions: 4.5 in x 9.5 in (114mm x 241mm)
  • Weight: 7.101 lb
  • Temp Rating: -25°C to 70°C (-13°F to 158°F)
  • Standards & Certification: UL Listed, CSA, IEC
  • Panel Type: SB Switchboards Without Lugs, Sentron Panelboards
  • Phase Connection: ABC
  • Breaker Type: Standard
  • Family: Sentron Series
  • Country of Origin: Mexico


Product Identification
  • UPC: 783643211186
  • GTIN: 00783643211186
