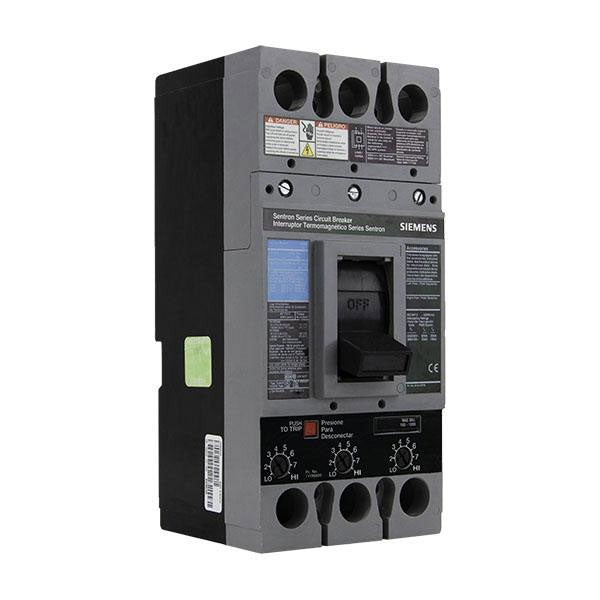

Siemens FXD62B225 - Molded Case Circuit Breaker 225A 2-Pole
Siemens FXD62B225 - Molded Case Circuit Breaker 225A 2-Pole

Siemens FXD62B225 - Molded Case Circuit Breaker 225A 2-Pole

Siemens
Price
Save $5,999.76
/
Condition
  • Low stock - 2 items left
  • Backordered, shipping soon
Call for Price
Siemens FXD62B225 is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in industrial power distribution systems. It features a 225A current rating and a 600V AC voltage rating, housed within a compact FD frame with a robust bolt-on connection for secure installation. This thermal magnetic breaker utilizes a long-time and instantaneous (LI) trip function for coordinated protection and is constructed to operate within a temperature range of -25°C to 70°C (-13°F to 158°F). Certified to UL, CSA, and IEC standards with an interrupting capacity of 35kA at 480V, it is suitable for safeguarding single-phase branch circuits in panelboards, switchboards, and industrial control panels.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Thermal Magnetic Protection, FXD Type
  • Voltage Rating: 600V AC
  • Current Rating: 225A
  • Frame Size: FD Frame
  • Poles: 2
  • Connection: Bolt-On
  • Phase: 1
  • AIC Rating: 35kA @ 480V
  • Protection Functions: LI (Long-Time and Instantaneous Trip)
  • Trip Type: Thermal Magnetic
  • Certification: UL, CSA, IEC
  • Operating Temperature: -25°C to 70°C (-13°F to 158°F)
  • Weight: 7.2 lb
  • Family: Sentron Series
  • Country of Origin: Mexico


Product Identification
  • UPC: 783643211179
  • GTIN: 00783643211179
