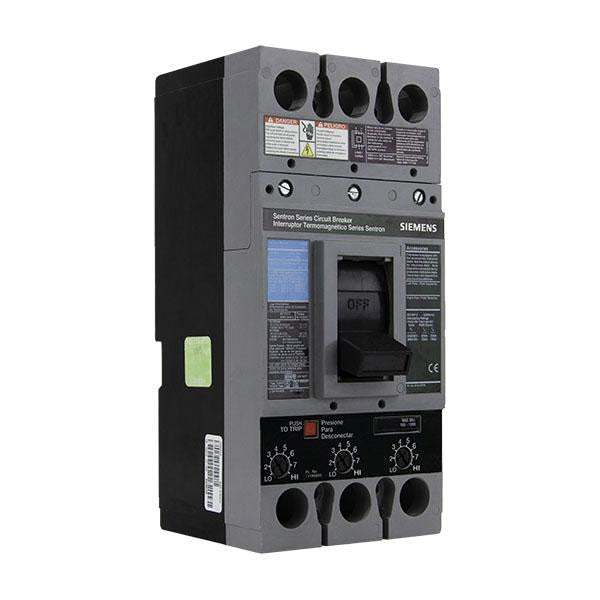

Siemens FXD62B200 - Molded Case Circuit Breaker 200A 600V
Siemens FXD62B200 - Molded Case Circuit Breaker 200A 600V

Siemens FXD62B200 - Molded Case Circuit Breaker 200A 600V

Siemens
Price
Save $6,003.86
/
Condition
  • Low stock - 7 items left
  • Backordered, shipping soon
Call for Price
Siemens FXD62B200 is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in industrial electrical systems. It features a 200A current rating and a 600V AC voltage rating, housed within a compact FD frame with a bolt-on connection for secure installation. This thermal magnetic breaker, part of the Sentron Series, offers both long-time and instantaneous trip (LI) functions and is certified to UL, CSA, and IEC standards for safety and interoperability. Its operational temperature range of -25°C to 70°C and a 35kA interrupting capacity at 480V AC make it suitable for a wide range of commercial and industrial power distribution applications.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Thermal Magnetic Protection
  • Voltage Rating: 600V AC
  • Current Rating: 200A
  • Frame Size: FD Frame
  • Poles: 2
  • Connection: Bolt-On
  • Protection Functions: LI (Long-Time and Instantaneous Trip)
  • AIC Rating: 35kA @ 480V AC
  • Phase: 1
  • Certification: UL, CSA, IEC
  • Operating Temperature: -25°C to 70°C (-13°F to 158°F)
  • Weight: 7 lb
  • Family: Sentron Series
  • Country of Origin: Mexico


Product Identification
  • UPC: 783643211162
  • GTIN: 00783643211162
