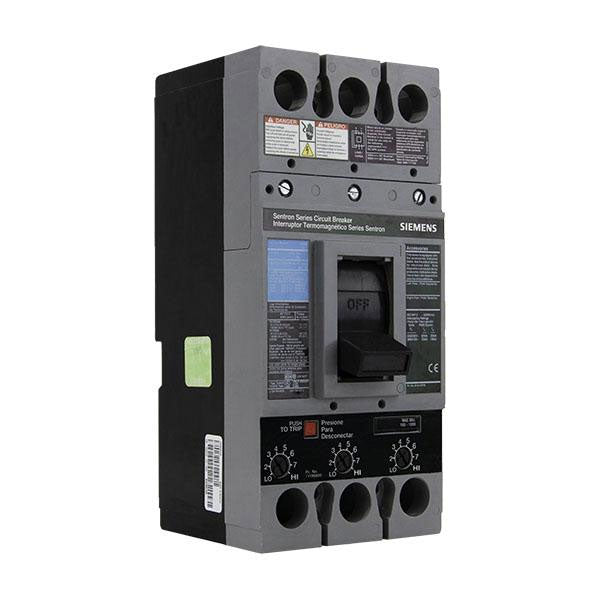

Siemens FXD62B175 - Molded Case Circuit Breaker 175A 600V
Siemens FXD62B175 - Molded Case Circuit Breaker 175A 600V

Siemens FXD62B175 - Molded Case Circuit Breaker 175A 600V

Siemens
Price
Save $5,460.45
/
Condition
  • Low stock - 6 items left
  • Backordered, shipping soon
Call for Price
Siemens FXD62B175 is a molded case circuit breaker designed for reliable overcurrent protection in industrial power distribution systems. It provides a 175A current rating and 600V voltage rating with a 35kA interrupting capacity at 480V AC, utilizing a thermal-magnetic trip unit for combined long-time and instantaneous (LI) protection. The breaker features a compact 250A frame size with a two-pole, bolt-on lug connection configuration and is constructed for operation in temperatures from -25°C to 70°C. It complies with UL, CSA, and IEC standards and is engineered for integration into Siemens Sentron panelboards and SB switchboards without lugs.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Thermal-Magnetic Protection, Standard Trip Unit (LI)
  • Voltage Rating: 600V AC
  • Current Rating: 175A
  • Frame Size: 250A/FD
  • Poles: 2
  • AIC Rating: 35kA @ 480V AC
  • Connection: Bolt-On, Lug Terminal
  • Phase: 1
  • Phase Connection: ABC
  • Protection: Thermal Magnetic
  • Functions: Long-Time and Instantaneous Trip (LI)
  • Breaker Type: Standard
  • Panel Type: SB Switchboards Without Lugs, Sentron Panelboards
  • Temp Rating: -25°C to 70°C (-13°F to 158°F)
  • Dimensions: 4.5 in x 9.5 in (114.3 mm x 241.3 mm)
  • Weight: 7 lb (3.18 kg)
  • Standards: UL Listed
  • Certification: UL, CSA, IEC
  • Family: Sentron Series
  • Country of Origin: Mexico


Product Identification
  • UPC: 783643211155
  • GTIN: 00783643211155
