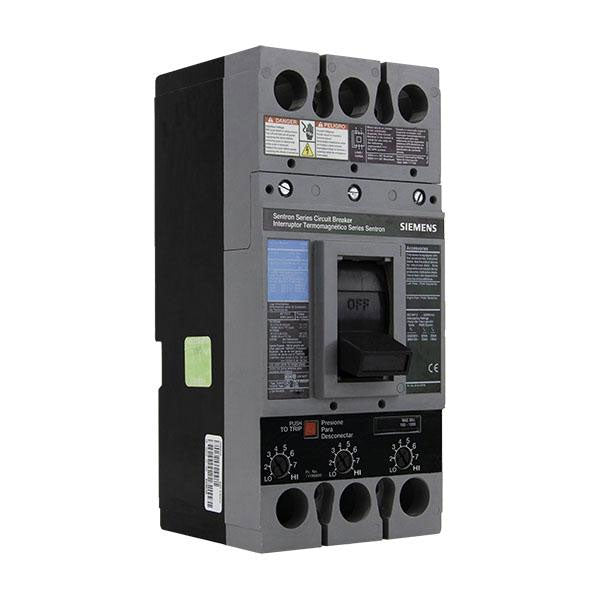

Siemens FXD62B150 - Molded Case Circuit Breaker, 150A 600V 2-Pole
Siemens FXD62B150 - Molded Case Circuit Breaker, 150A 600V 2-Pole

Siemens FXD62B150 - Molded Case Circuit Breaker, 150A 600V 2-Pole

Siemens
Price
Save $5,999.76
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Siemens FXD62B150 is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in industrial electrical systems. It features a 150A continuous current rating and a 600V AC voltage rating, housed within a compact 4.5" x 9.5" (114mm x 241mm) frame with a bolt-on lug connection for secure installation. This thermal-magnetic breaker, part of the Sentron Series, complies with UL, CSA, and IEC standards and is engineered for operation in temperatures from -25°C to 70°C. Its 35kA interrupting capacity at 480V makes it suitable for protecting feeders and branch circuits in SB switchboards and Sentron panelboards.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Thermal-Magnetic Protection with Long-Time and Instantaneous (LI) Trip Functions
  • Voltage Rating: 600V AC
  • Current Rating: 150A
  • Frame Size: 250A/FD
  • Poles: 2
  • AIC Rating: 35kA @ 480V AC
  • Connection: Bolt-On, Lug Terminal
  • Phase: 1
  • Phase Connection: ABC
  • Dimensions: 4.5 in x 9.5 in (114 mm x 241 mm)
  • Weight: 7.998 lb
  • Operating Temperature: -25°C to 70°C (-13°F to 158°F)
  • Protection: Thermal Magnetic
  • Panel Type: SB Switchboards Without Lugs, Sentron Panelboards
  • Breaker Type: Standard
  • Standards & Certification: UL Listed, CSA, IEC
  • Family: Sentron Series
  • Country of Origin: Mexico


Product Identification
  • UPC: 783643211148
  • GTIN: 00783643211148
