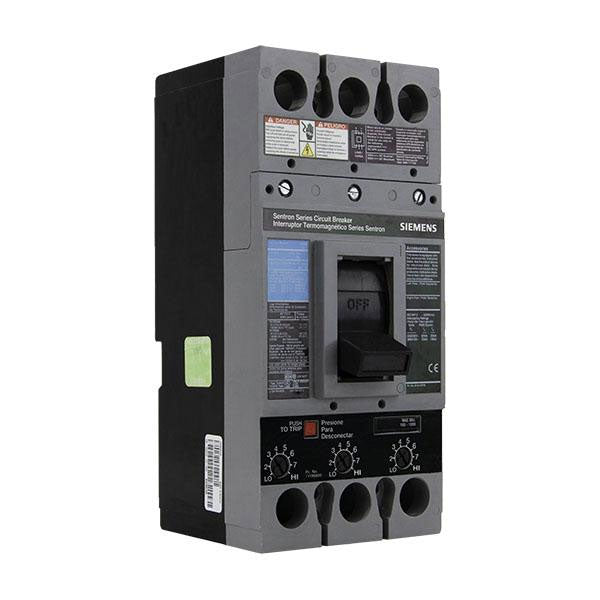

Siemens FXD62B100 is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in industrial electrical systems. It features a 100A continuous current rating and a 600V AC voltage rating, housed within a compact FD frame with a durable bolt-on connection for secure installation. This thermal magnetic breaker provides both long-time and instantaneous (LI) trip functions and is constructed to operate in temperatures from -25°C to 70°C (-13°F to 158°F). It complies with UL, CSA, and IEC standards, offering an interrupting capacity of 35kA at 480V AC, making it suitable for protecting feeders and branch circuits in commercial and industrial panelboards.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Thermal Magnetic Protection, Bolt-On Connection
  • Voltage Rating: 600V AC
  • Current Rating: 100A
  • Frame Size: FD Frame
  • Poles: 2
  • Phase: 1
  • AIC Rating: 35kA @ 480V AC
  • Protection Functions: LI (Long-Time and Instantaneous Trip)
  • Trip Type: Thermal Magnetic
  • Connection: Bolt-On
  • Operating Temperature: -25°C to 70°C (-13°F to 158°F)
  • Certification: UL, CSA, IEC
  • Family: Sentron Series
  • Weight: 7 lb


Product Identification
  • UPC: 078364321111
  • GTIN: 00783643211117
