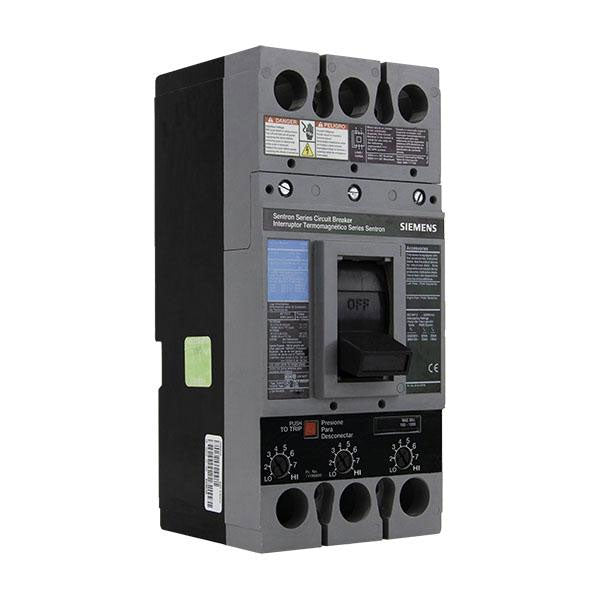

Siemens FXD62B090 - Molded Case Circuit Breaker, 90A 600V 2-Pole
Siemens FXD62B090 - Molded Case Circuit Breaker, 90A 600V 2-Pole

Siemens FXD62B090 - Molded Case Circuit Breaker, 90A 600V 2-Pole

Siemens
Price
Save $5,572.48
/
Condition
  • Low stock - 5 items left
  • Backordered, shipping soon
Call for Price
Siemens FXD62B090 is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in industrial electrical systems. It features a 90A current rating and a 600V AC voltage rating, housed within a compact FD frame with a bolt-on connection for secure installation. This thermal magnetic breaker offers both long-time and instantaneous (LI) trip functions and is constructed to operate reliably across a temperature range of -25°C to 70°C (-13°F to 158°F). It complies with UL, CSA, and IEC standards and provides an interrupting capacity of 35kA at 480V, making it suitable for protecting feeders, branch circuits, and equipment in commercial and industrial panelboards.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Thermal Magnetic Protection, Bolt-On Connection
  • Voltage Rating: 600V AC
  • Current Rating: 90A
  • Frame Size: FD Frame
  • Poles: 2
  • Phase: 1
  • AIC Rating: 35kA @ 480V
  • Protection Functions: LI (Long-Time and Instantaneous Trip)
  • Connection: Bolt-On
  • Certification: UL, CSA, IEC
  • Operating Temperature: -25°C to 70°C (-13°F to 158°F)
  • Weight: 7 lb
  • Family: Sentron Series
  • Country of Origin: Mexico


Product Identification
  • UPC: 783643211100
  • GTIN: 00783643211100
