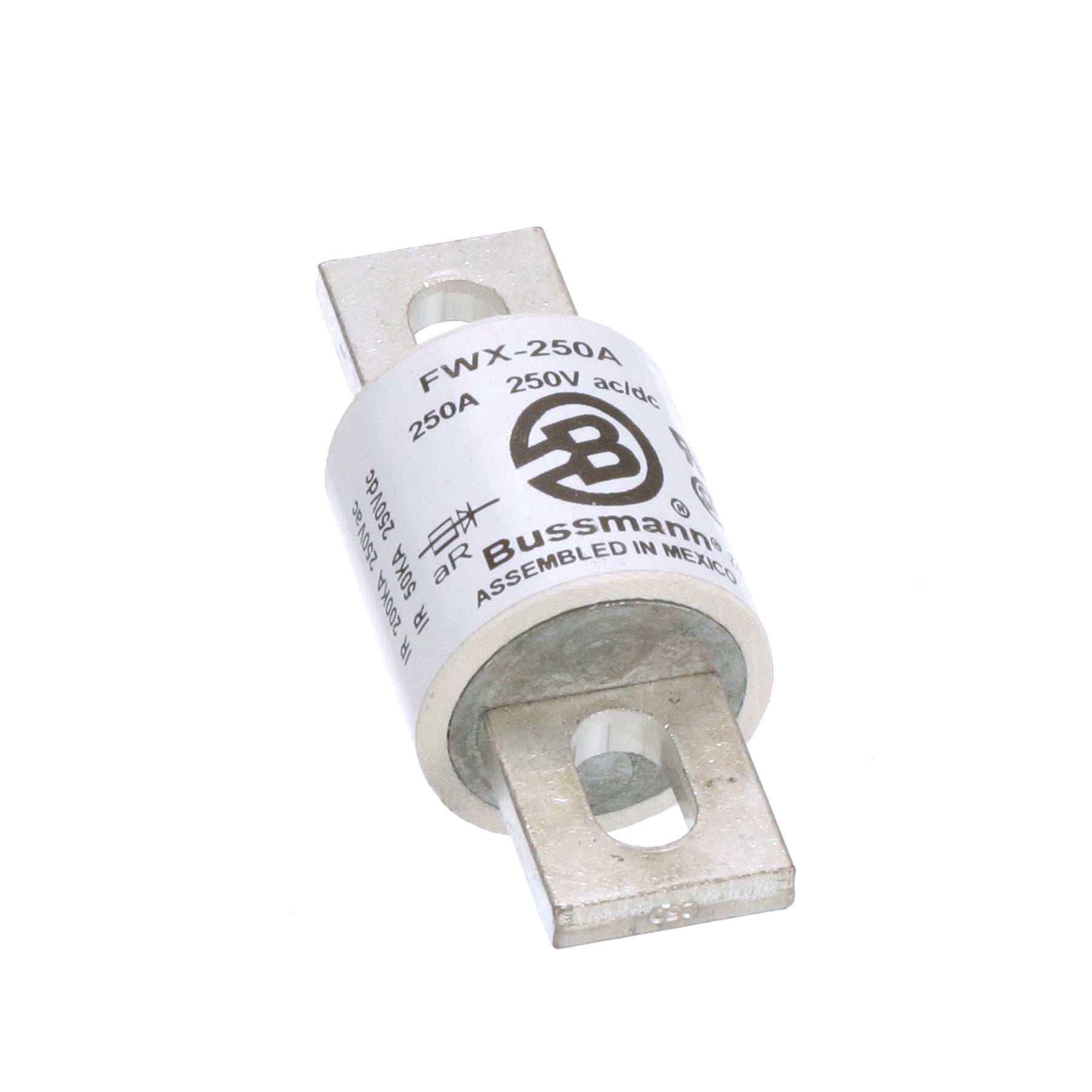

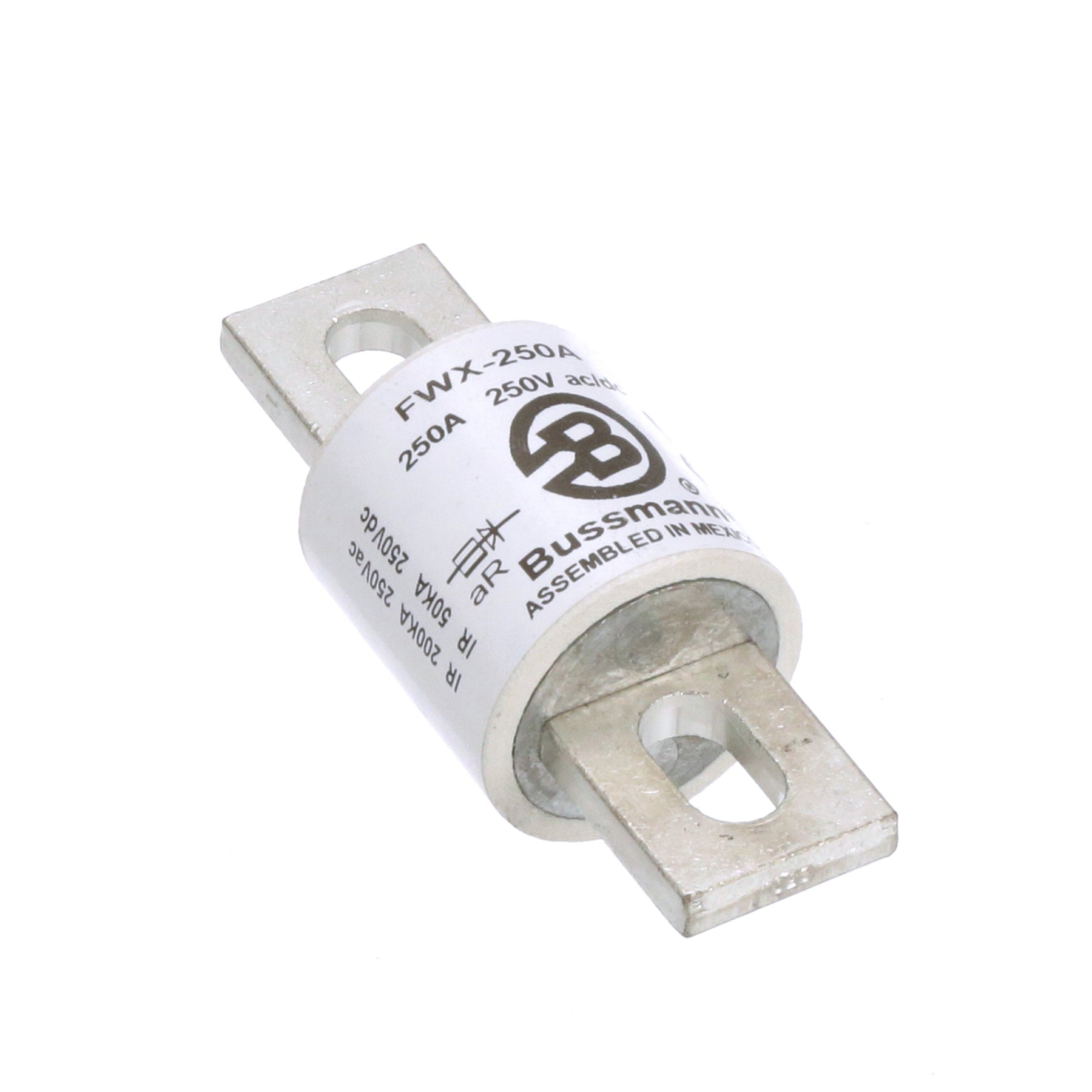

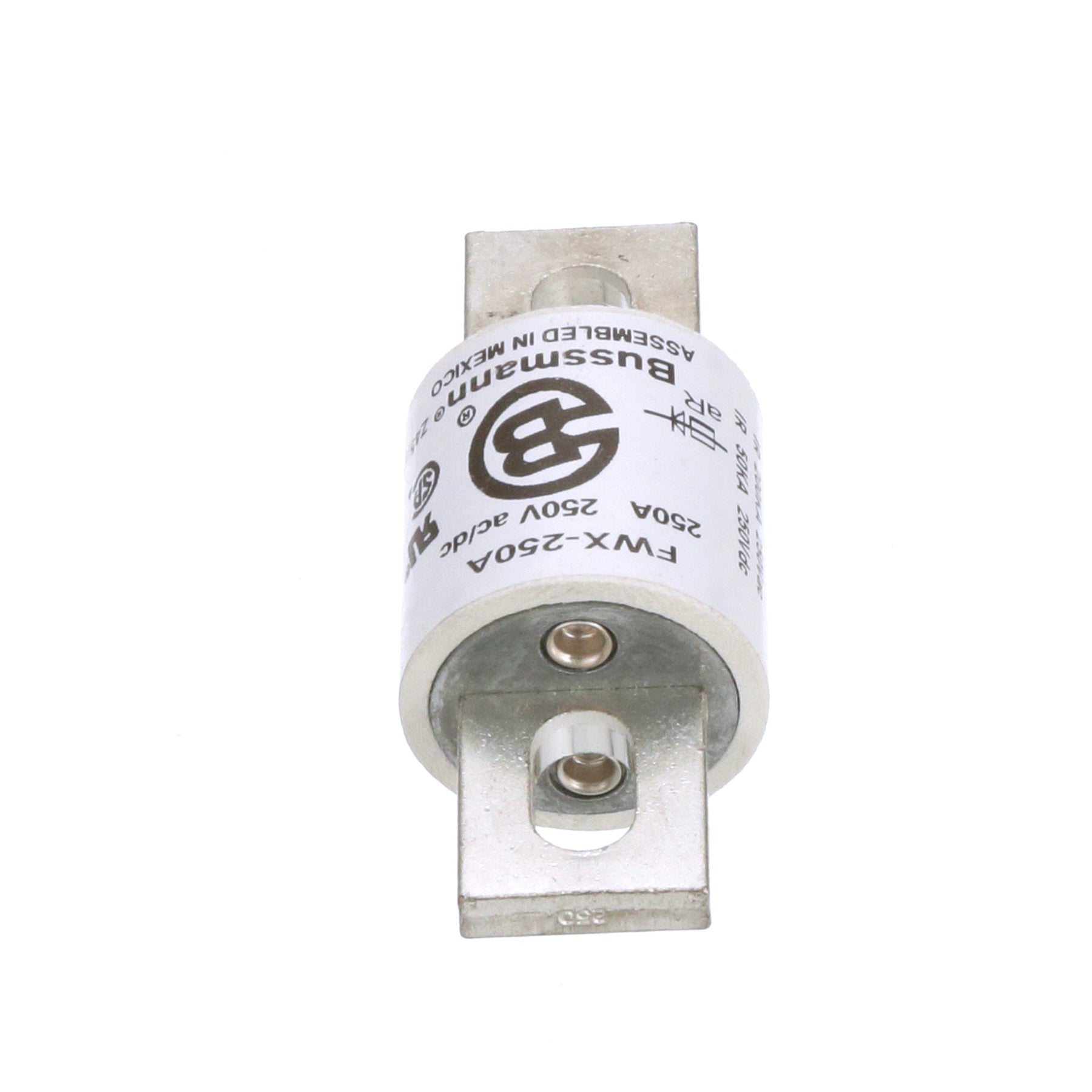

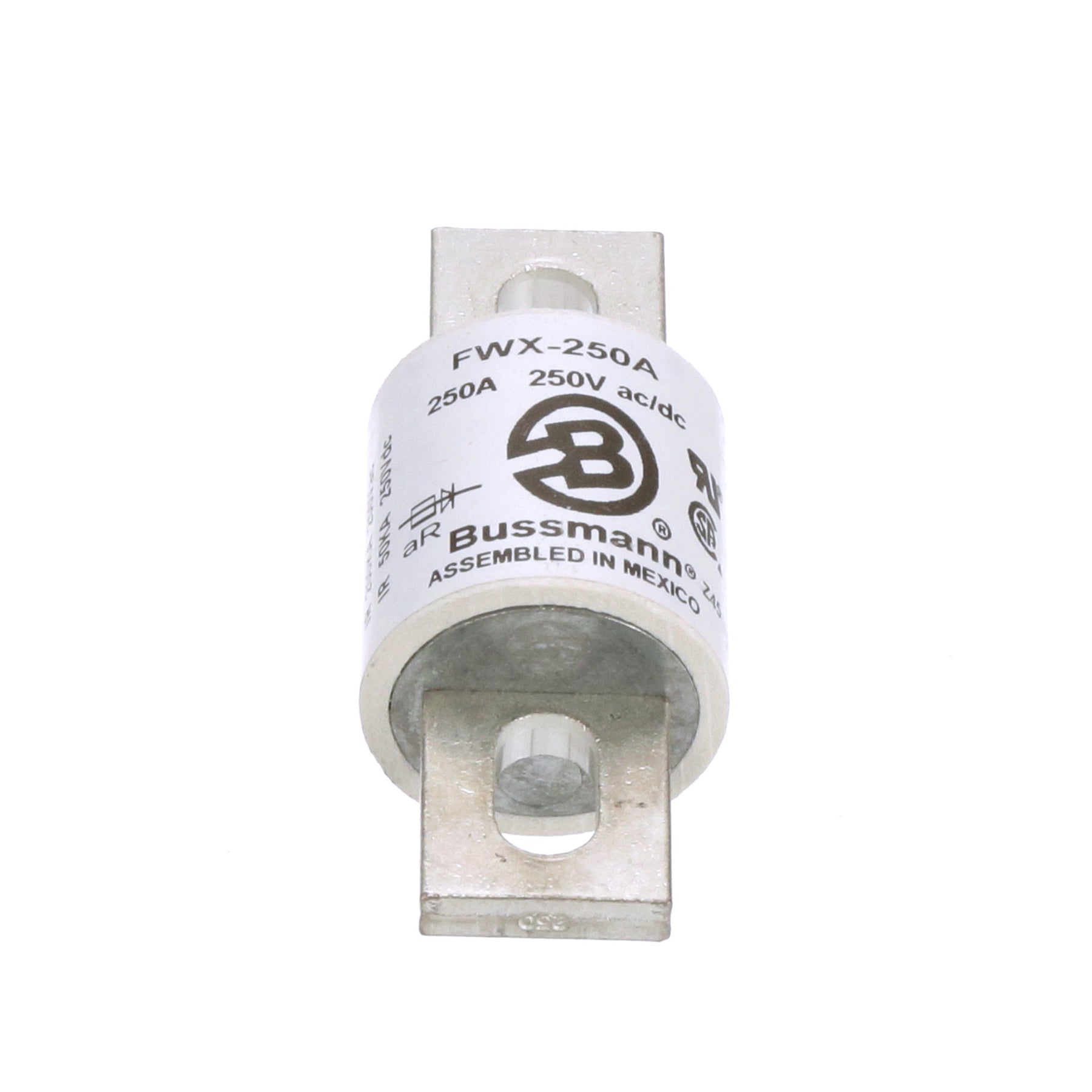

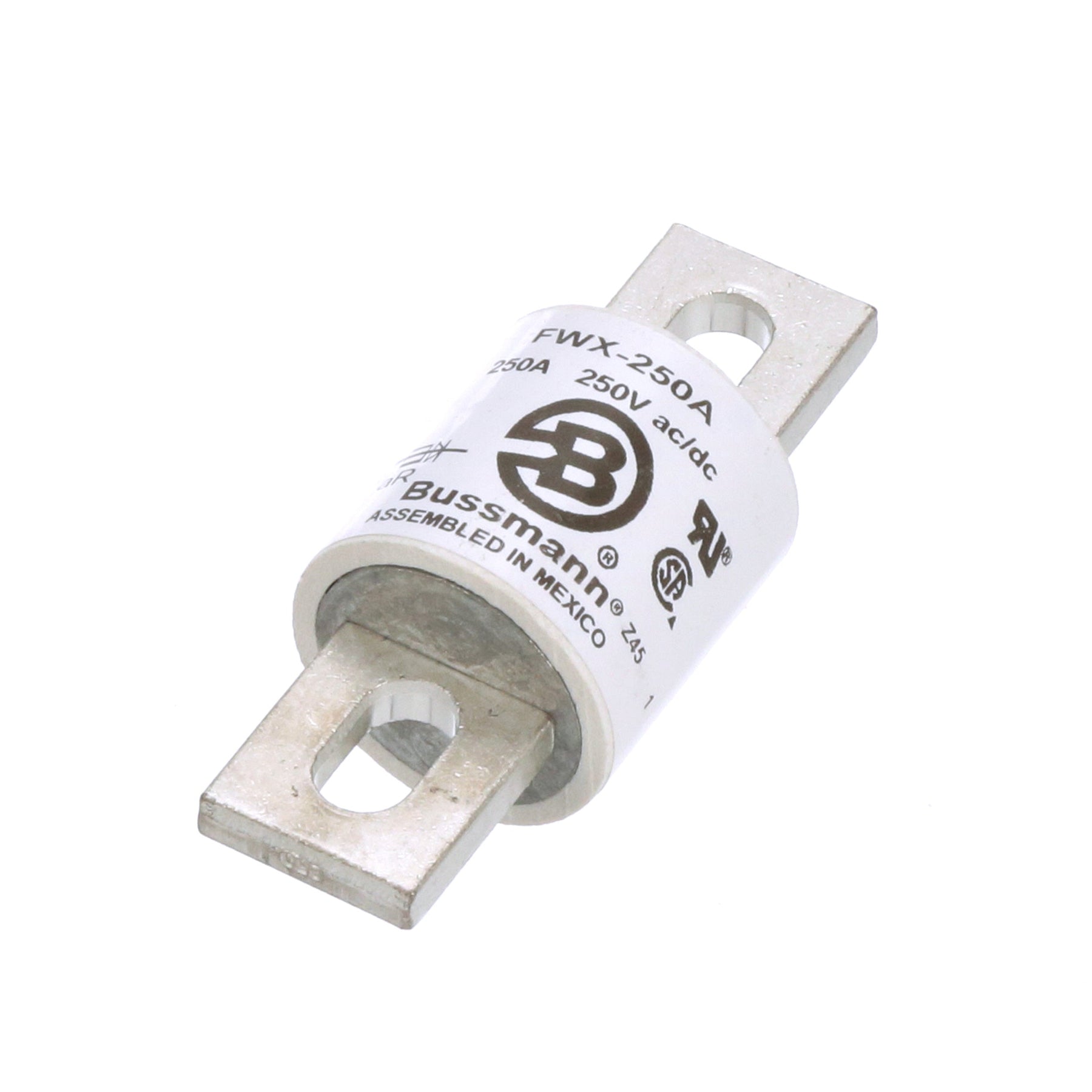

Bussmann FWX-250A - Low Voltage Fuse 250A (200kA AIC @250V)

Bussmann FWX-250A is a low-voltage current-limiting fuse designed for industrial circuit protection applications. It features a 250A current rating and 250V voltage rating with a high 200kA interrupting capacity for reliable fault protection. The fuse measures 1.5 inches in diameter with stud connections and single-barrel construction, weighing 1 lb for robust performance. It meets CE, CSA, and UL certification standards for safety compliance. Typical applications include industrial control panels, motor circuits, and power distribution systems where high-fault current protection is required.

Key Features & Specifications

• Type: FWX Series current-limiting fuse with stud connection
• Voltage Rating: 250V AC
• Current Rating: 250A
• Dimensions: 1.5" diameter x 3-27/32" length
• Standards: CE, CSA Certified, UL Recognized
• Applications: Industrial control panels, motor circuits, power distribution
• AIC rating: 200kA@250V
• Connection: Stud
• Barrels: 1
• Fuse Class: FWX
• Weight: 1 lb
• Certification: CE, CSA Certified, UL Recognized

Product Identification

• UPC: 051712150682
• GTIN: 00051712150682
