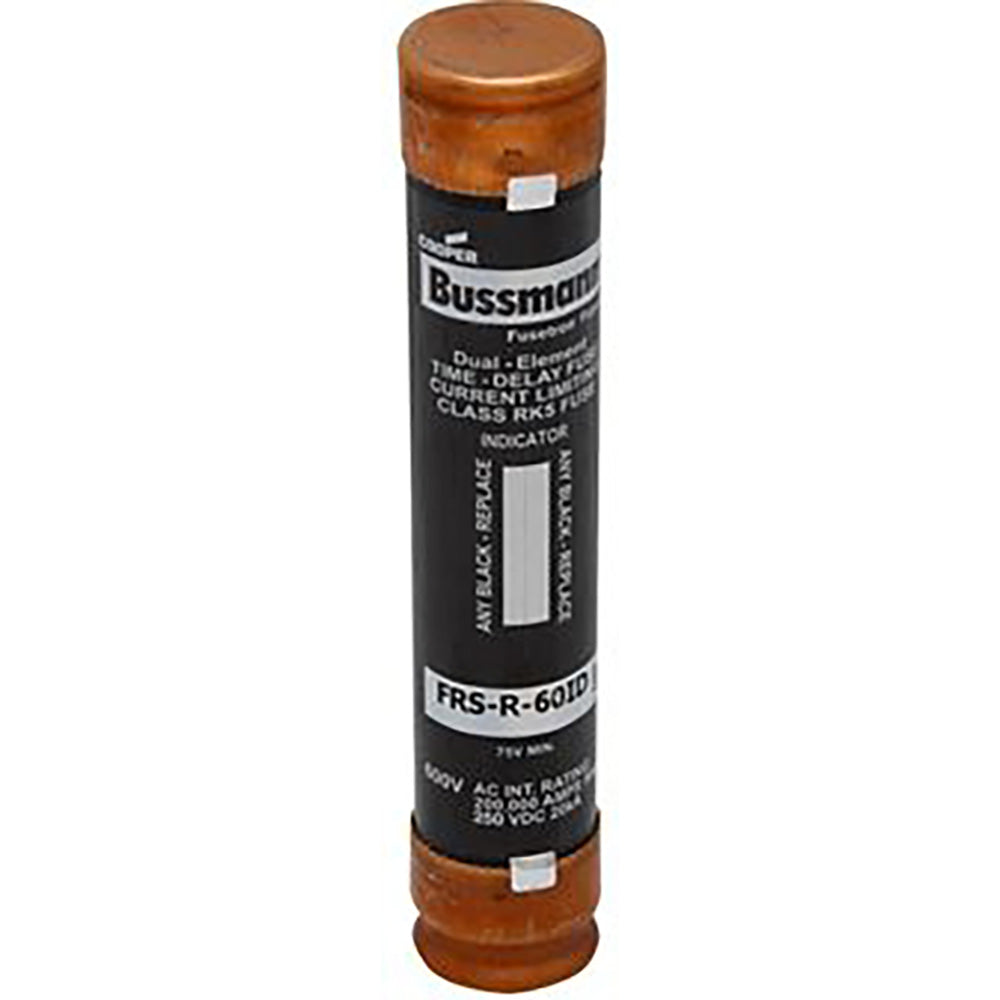

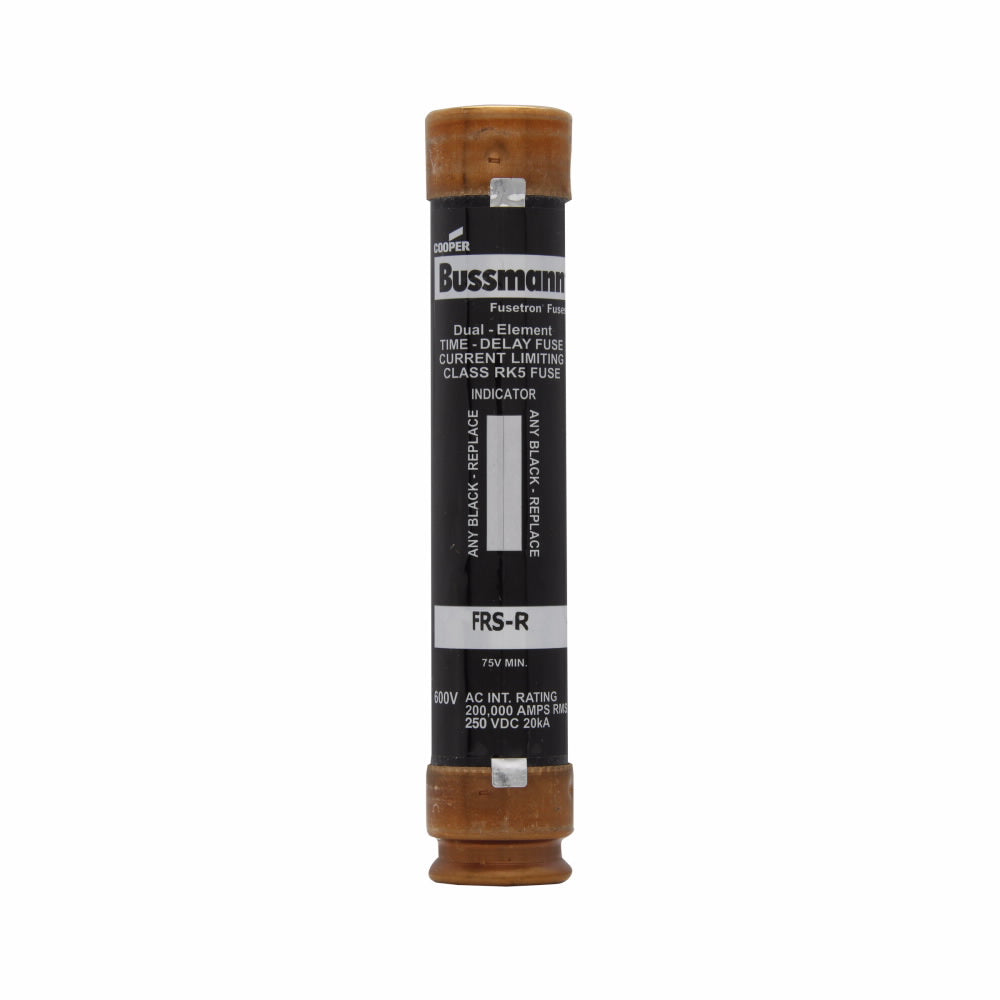

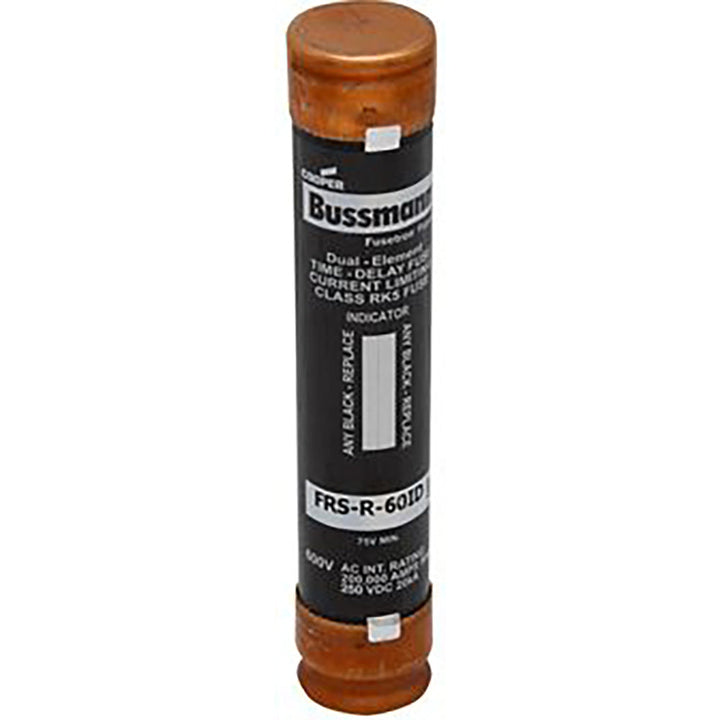

Bussmann FRS-R-60ID - RK5 Time-Delay Fuse 60A (200kA AIC, 600V)

The Bussmann FRS-R-60ID is a time-delay, current-limiting fuse from the Fusetron family designed to provide reliable circuit protection for motors, transformers, and feeders against overloads and short circuits. It features a 600V AC voltage rating and a 60A current rating, ensuring robust performance in demanding electrical environments. The fuse is constructed as a single-barrel unit with a 1.06-inch diameter and a 5-1/2 inch length, contributing to a total weight of 2 lb. It complies with major industry standards, including UL 248-12 and CSA Certification Class 1422-01, and carries the CE mark. This RK5 class fuse is commonly applied in industrial power distribution systems, panelboards, and motor control centers where a high 200kA interrupting rating at 600V is required for safety and equipment protection.

Key Features & Specifications

• Type: Time-delay, current-limiting, low-voltage fuse, single barrel
• Voltage Rating: 600V AC
• Current Rating: 60A
• Dimensions: 5-1/2 inch length, 1.06 inch diameter
• Standards: CE, CSA Certification Class 1422-01, UL 248-12 Guide JDDZ
• Applications: Motor, transformer, and feeder circuit protection in industrial power distribution
• AIC rating: 200kA @ 600V AC
• Class Rating: RK5
• Barrels: 1
• Weight: 2 lb

Product Identification

• UPC: 051712204668
• GTIN: 00051712204668
