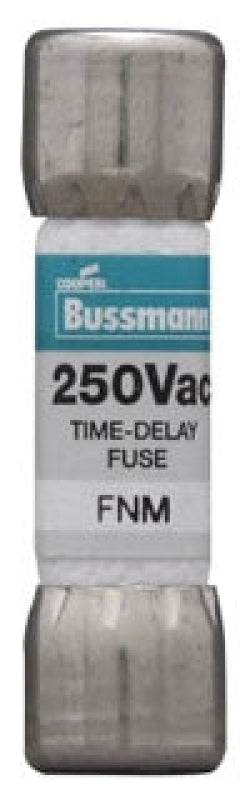

Bussmann FNM-6/10 - Low Voltage Time-Delay Fuse 6A 250V (35kA AIC, Class 1422-01)

Bussmann FNM-6/10 is a low-voltage fuse designed for circuit protection in industrial electrical systems. This 6A rated fuse operates at 250V AC with a 35kA interrupting capacity, providing reliable overcurrent protection. The fuse features a compact 1-1/2 inch length with 0.41 inch diameter ferrule non-rejection connection and single-barrel construction. It complies with UL-248-14, CSA Class 1422-01, and CE standards for safety and performance. Typical applications include motor control centers, industrial control panels, and electrical distribution equipment requiring Class 1422-01 protection.

Key Features & Specifications

• Type: Low-voltage time-delay fuse with ferrule non-rejection connection
• Voltage Rating: 250V AC
• Current Rating: 6A
• Dimensions: 1-1/2 inch length, 0.41 inch diameter
• Standards: UL-248-14 Guide JDYX, CSA Class 1422-01, CE
• Applications: Industrial control circuits, motor protection, panelboards
• AIC rating: 35,000A @ 250V
• Connection: Ferrule Non-Rejection
• Barrels: 1
• Class Rating: 1422-01
• Weight: 1 lb
• Family: FNM Series
• Country of Origin: Mexico

Product Identification

• UPC: 051712520065
• GTIN: 00051712520065
