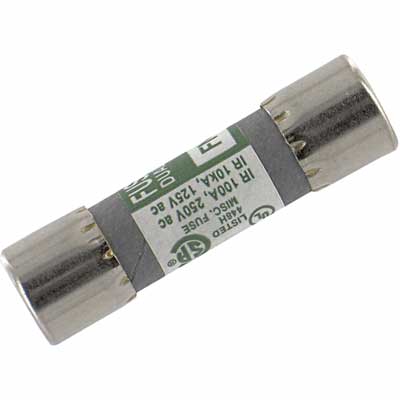

Bussmann FNM-2-1/2 - Low Voltage Fuse 2A 250V (100kA Interrupting Rating)

The Bussmann FNM-2-1/2 is a low-voltage fuse designed for circuit protection in industrial applications, featuring a 2A current rating and 250V voltage rating for reliable overcurrent protection. This single-barrel fuse measures 1-1/2 inches in length with a 0.41-inch diameter ferrule non-rejection connection and weighs 1 lb, constructed to meet rigorous industry standards. It complies with CE, CSA Class 1422-01, and UL-248-14 Guide JDYX certifications, ensuring safe operation with a 100kA interrupting rating at 250V. Typical applications include industrial control circuits, motor branch circuits, and electrical distribution systems requiring precise overcurrent protection.

Key Features & Specifications

• Type: FNM series low-voltage fuse with ferrule non-rejection connection
• Voltage Rating: 250V AC
• Current Rating: 2A
• Dimensions: 1-1/2 inches length, 0.41 inches diameter
• Standards: CE, CSA Class 1422-01, UL-248-14 Guide JDYX
• Applications: Industrial control circuits, motor protection, electrical distribution
• Connection: Ferrule Non-Rejection
• Barrels: 1
• AIC rating: 100kA@250V
• Class Rating: 1422-01
• Weight: 1 lb

Product Identification

• UPC: 051712520225
• GTIN: 00051712520225
