Littelfuse FLSR225ID - RK5 Dual-Element Time-Delay Fuse 225A 600V (200kA AIC)
FLSR225ID Littelfuse FLSR_ID Series - UL Class RK5 Dual-Element Time-Delay Fuses with Indication Low Voltage Fuse 600V 225A Fuse - Essential Electric Supply
FLSR225ID Littelfuse FLSR_ID Series - UL Class RK5 Dual-Element Time-Delay Fuses with Indication Low Voltage Fuse 600V 225A Fuse - Essential Electric Supply
FLSR225ID Littelfuse FLSR_ID Series - UL Class RK5 Dual-Element Time-Delay Fuses with Indication Low Voltage Fuse 600V 225A Fuse - Essential Electric Supply
FLSR225ID Littelfuse FLSR_ID Series - UL Class RK5 Dual-Element Time-Delay Fuses with Indication Low Voltage Fuse 600V 225A Fuse - Essential Electric Supply
FLSR225ID Littelfuse FLSR_ID Series - UL Class RK5 Dual-Element Time-Delay Fuses with Indication Low Voltage Fuse 600V 225A Fuse - Essential Electric Supply
FLSR225ID Littelfuse FLSR_ID Series - UL Class RK5 Dual-Element Time-Delay Fuses with Indication Low Voltage Fuse 600V 225A Fuse - Essential Electric Supply
FLSR225ID Littelfuse FLSR_ID Series - UL Class RK5 Dual-Element Time-Delay Fuses with Indication Low Voltage Fuse 600V 225A Fuse - Essential Electric Supply
Littelfuse FLSR225ID - RK5 Dual-Element Time-Delay Fuse 225A 600V (200kA AIC)

Littelfuse FLSR225ID - RK5 Dual-Element Time-Delay Fuse 225A 600V (200kA AIC)

Littelfuse
Price
Save $320.17
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price

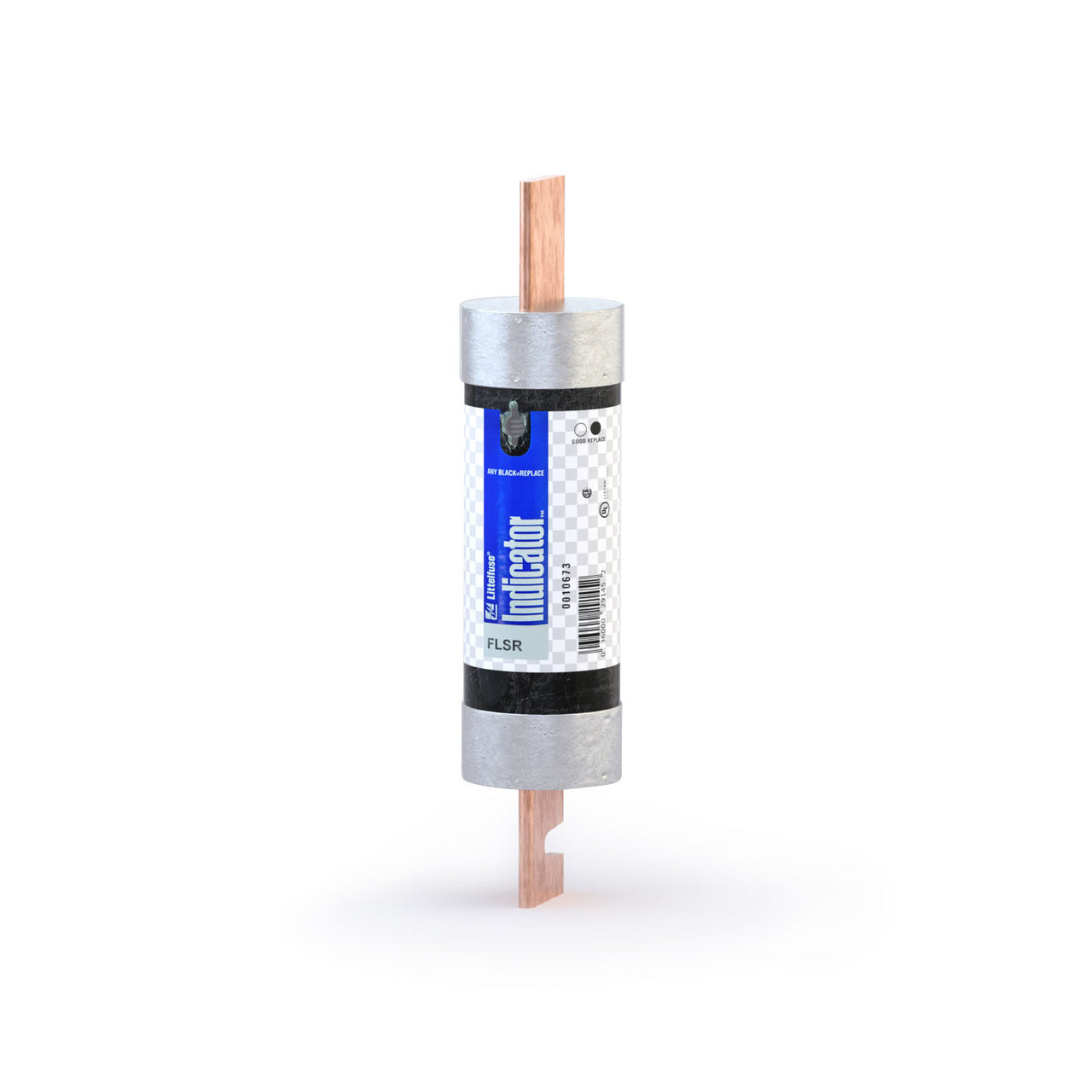

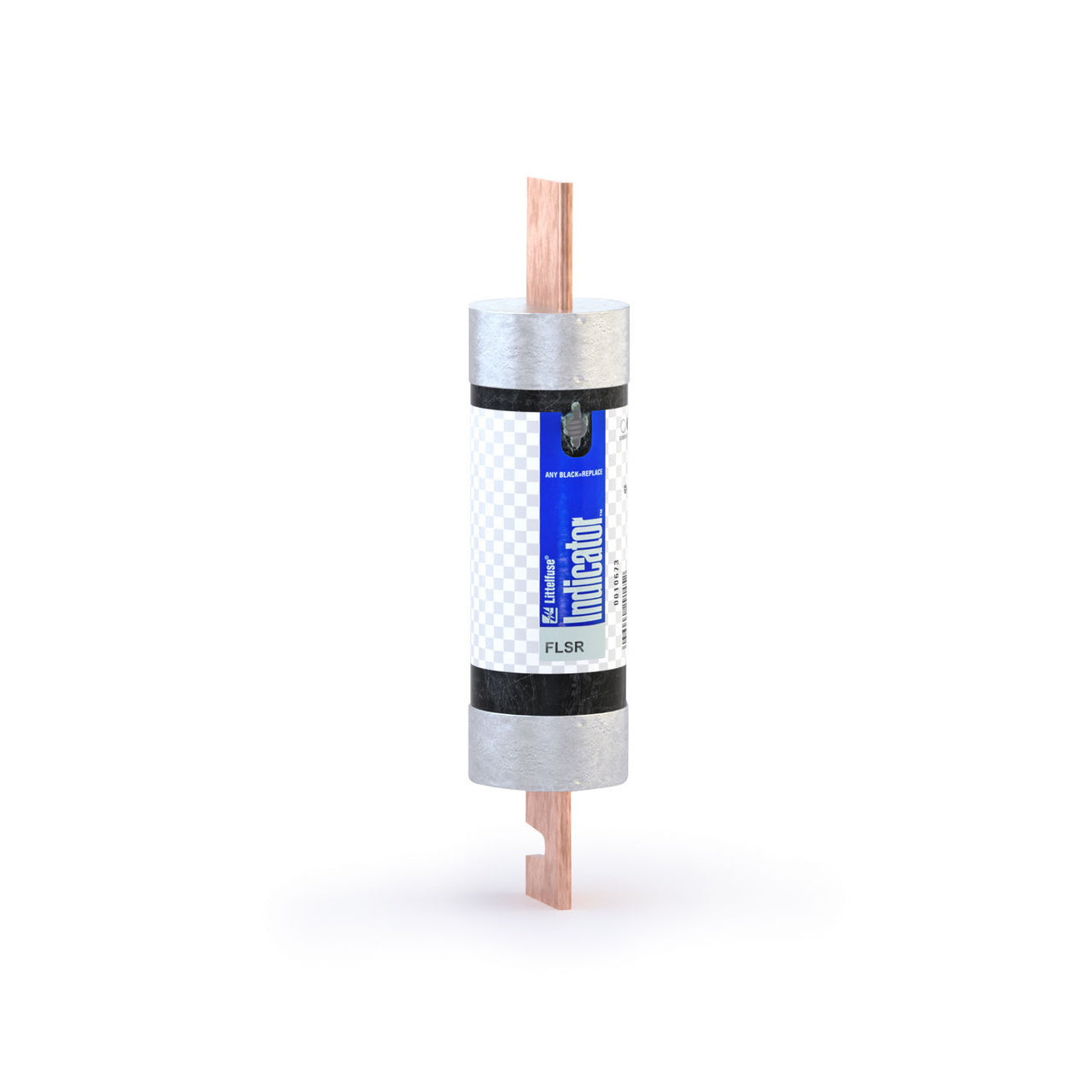

Littelfuse FLSR225ID is a UL Class RK5 dual-element time-delay fuse with visual indication, designed for overcurrent protection in industrial electrical systems. Rated for 600V AC/DC operation with a 225A current capacity, it features a rejection blade connection and provides 200kA interrupting capacity at rated voltage. The fuse measures 11-5/8" in length with a 2.59" diameter barrel, constructed with CSA/cUL/UL-certified components for reliable performance. Compliant with UL 248-5 standards, this Mexico-manufactured fuse is ideal for motor branch circuits, transformers, and feeder protection in commercial/industrial power distribution.

Key Features & Specifications
  • Type: Dual-element time-delay fuse with visual indication (FLSR_ID Series)
  • Voltage Rating: 600V AC/DC
  • Current Rating: 225A
  • Dimensions: 11-5/8" length x 2.59" diameter
  • Weight: 3.48 lb
  • Standards: UL 248-5, CSA, cUL
  • Applications: Motor circuits, transformers, feeder protection
  • Class Rating: RK5
  • Connection: Rejection blade
  • Barrels: 1
  • AIC rating: 200kA@600V


Product Identification
  • UPC: 07945802556
  • GTIN: 00079458025569
