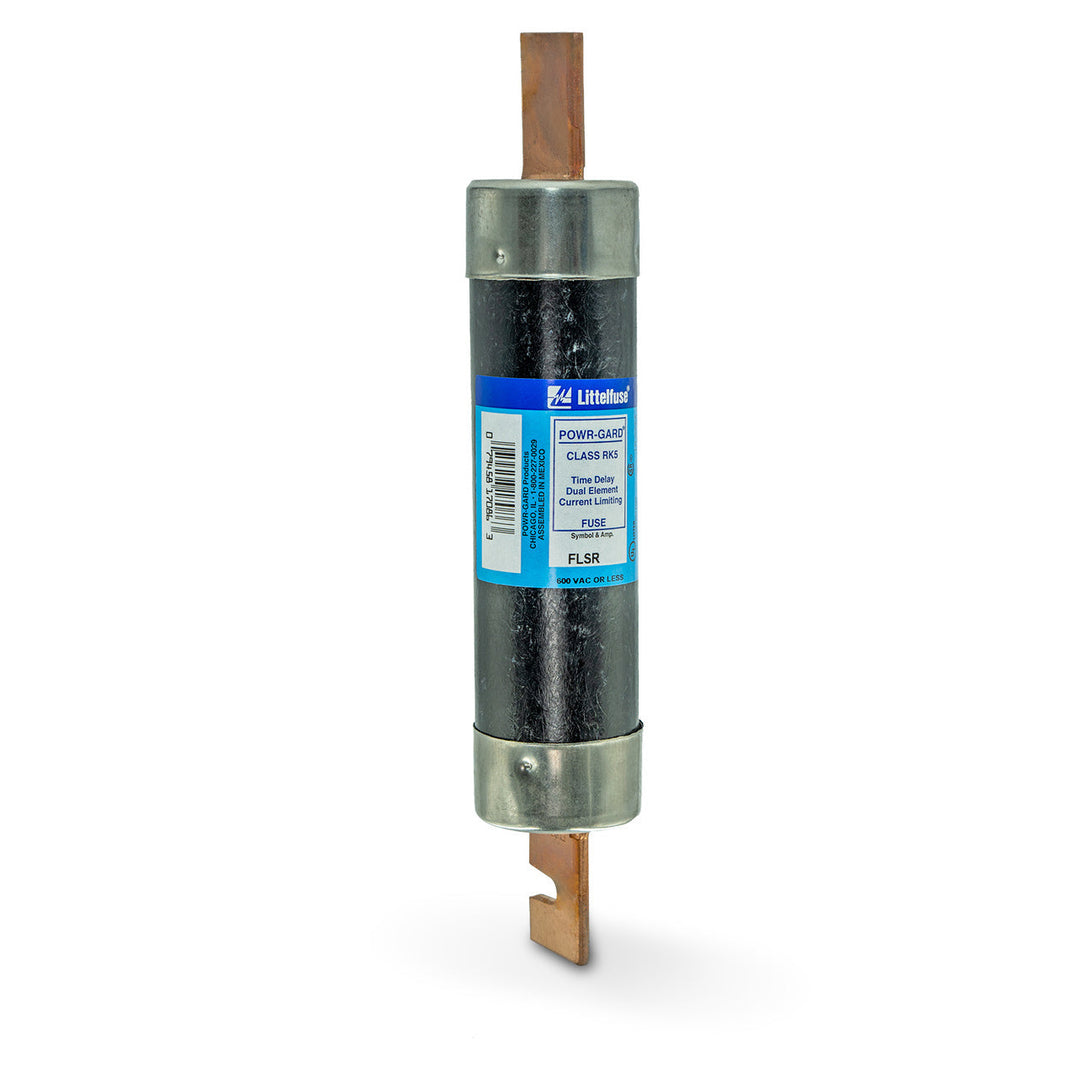

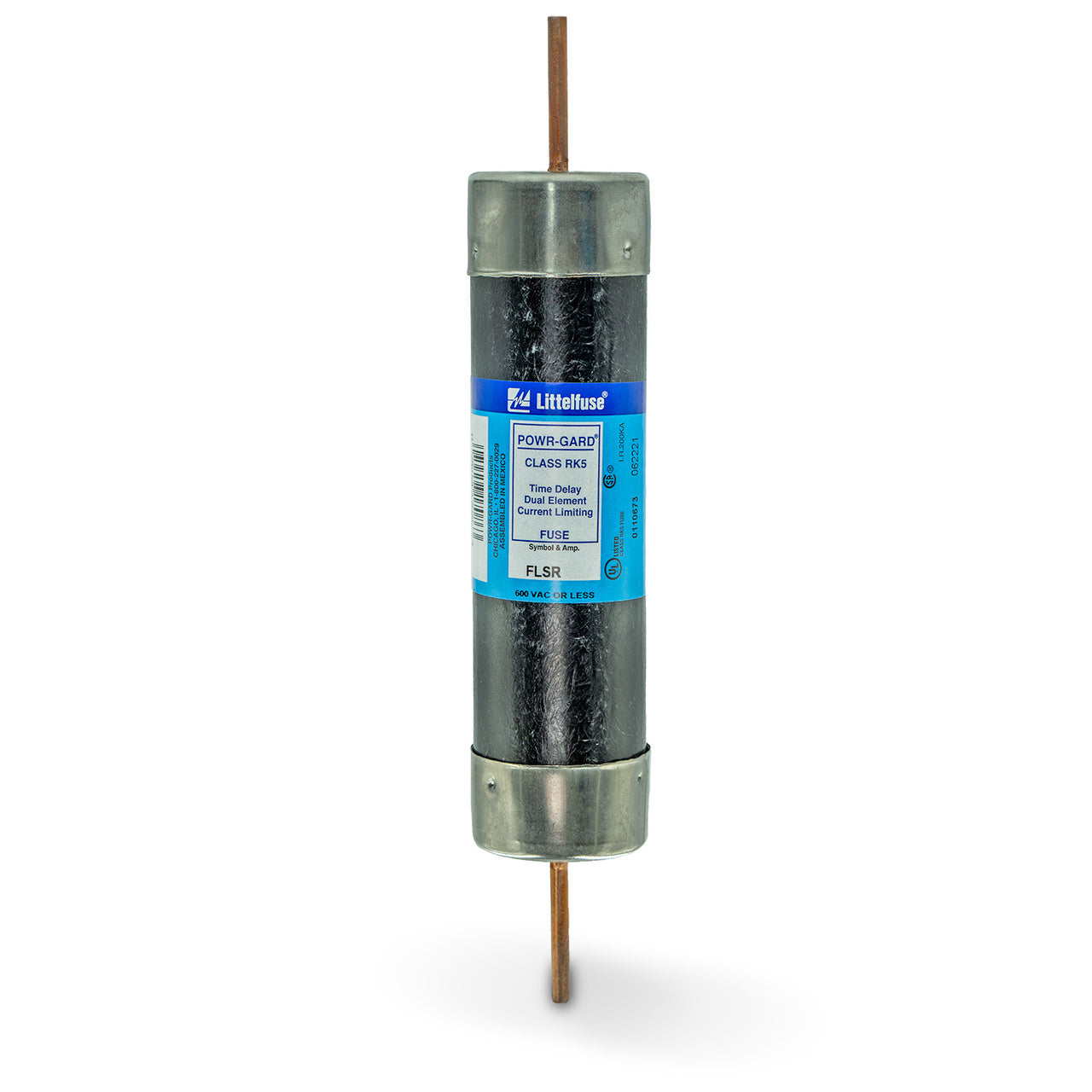

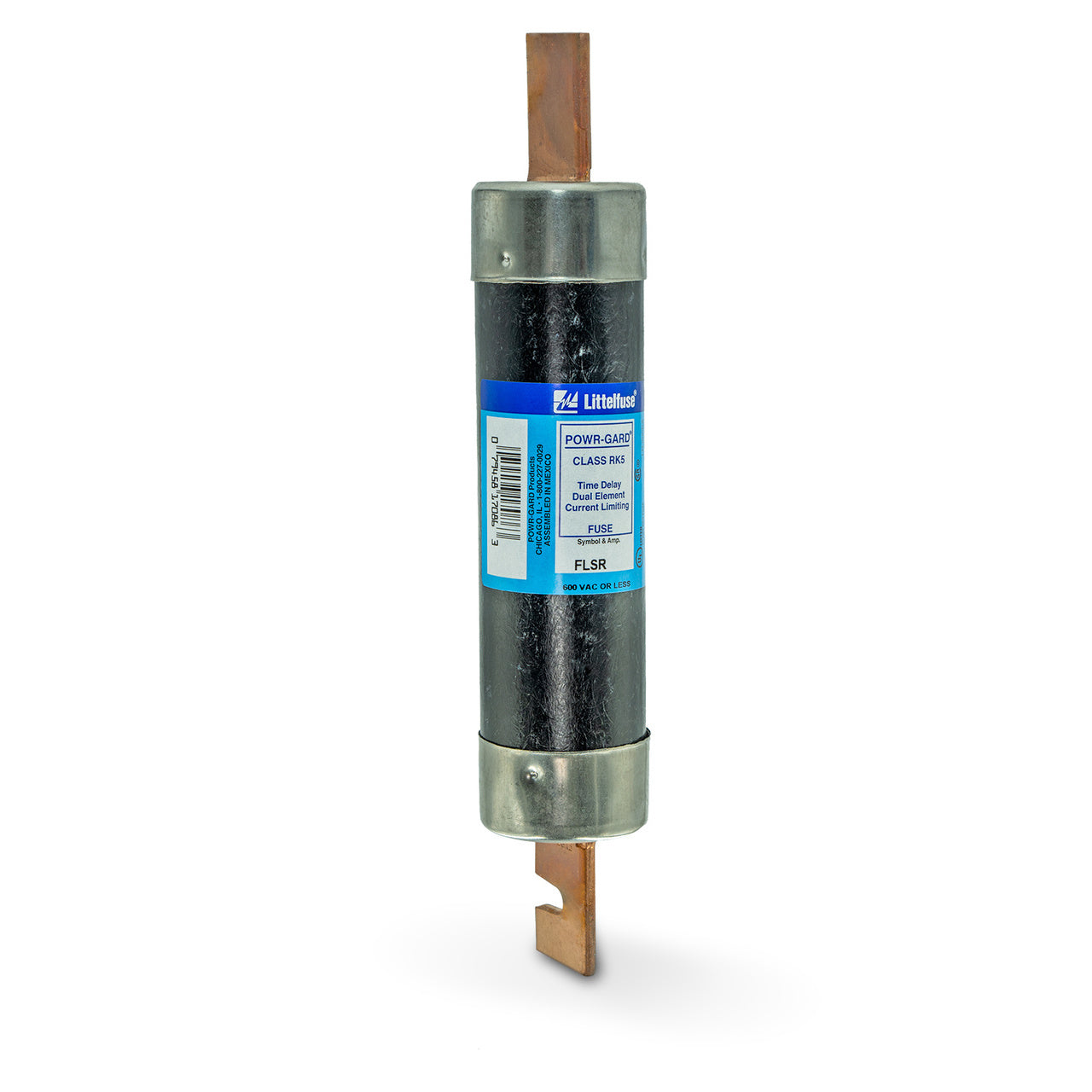

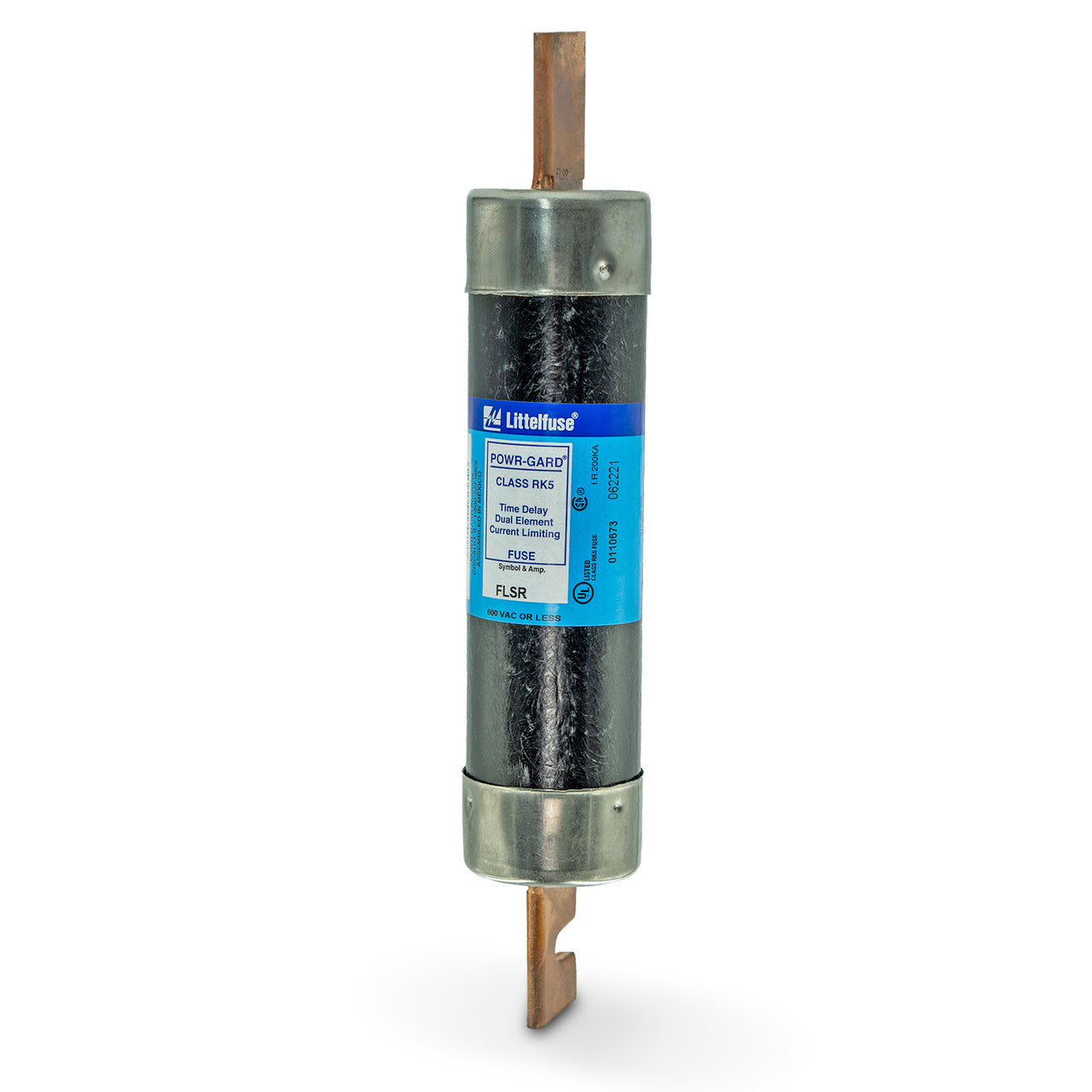

Littelfuse FLSR110 - RK5 Dual-Element Time-Delay Fuse 110A (200kA@600V Interrupt Rating)

Littelfuse FLSR110 is a UL Class RK5 dual-element time-delay fuse designed for robust circuit protection in industrial applications. Rated for 600V AC/DC systems with a 110A current capacity, it features a 200kA interrupting rating for high-fault scenarios. The fuse measures 9-5/8" in length with a 1.84" diameter barrel construction, weighing 1 lb for durable handling. It meets CE, UL 248-12 Class RK5, CSA, and QPL-W-F-1814 standards for reliable performance in motor protection, transformer circuits, and power distribution systems.

Key Features & Specifications

• Type: Dual-element time-delay fuse with RK5 classification
• Voltage Rating: 600V AC/DC
• Current Rating: 110A
• Dimensions: 9-5/8" length, 1.84" diameter
• Standards: CE, UL 248-12 Class RK5, CSA, QPL-W-F-1814
• Applications: Motor circuits, transformers, power distribution
• Class Rating: RK5
• Barrels: 1
• AIC rating: 200kA@600V
• Weight: 1 lb

Product Identification

• UPC: 07945817083
• GTIN: 00079458170832
