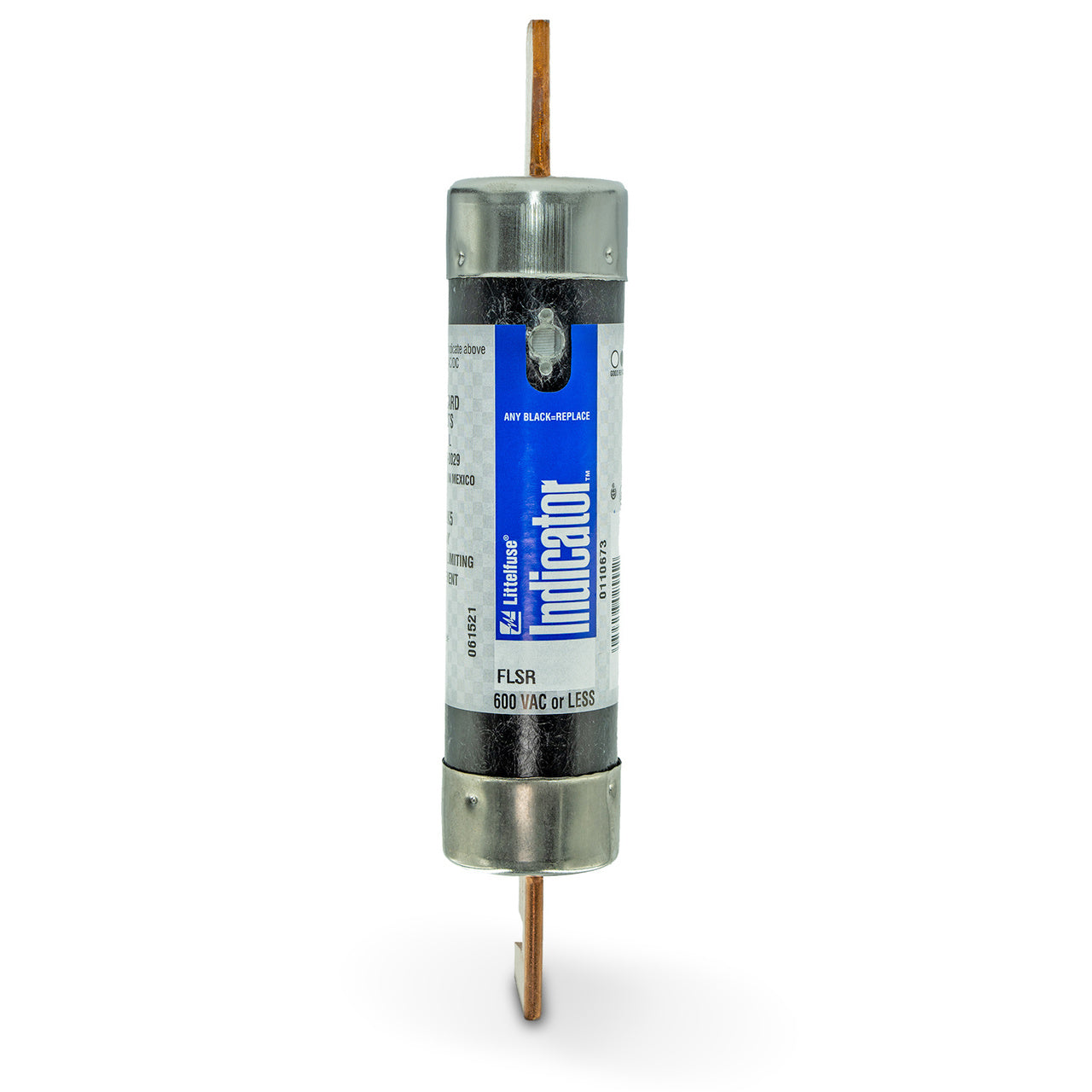

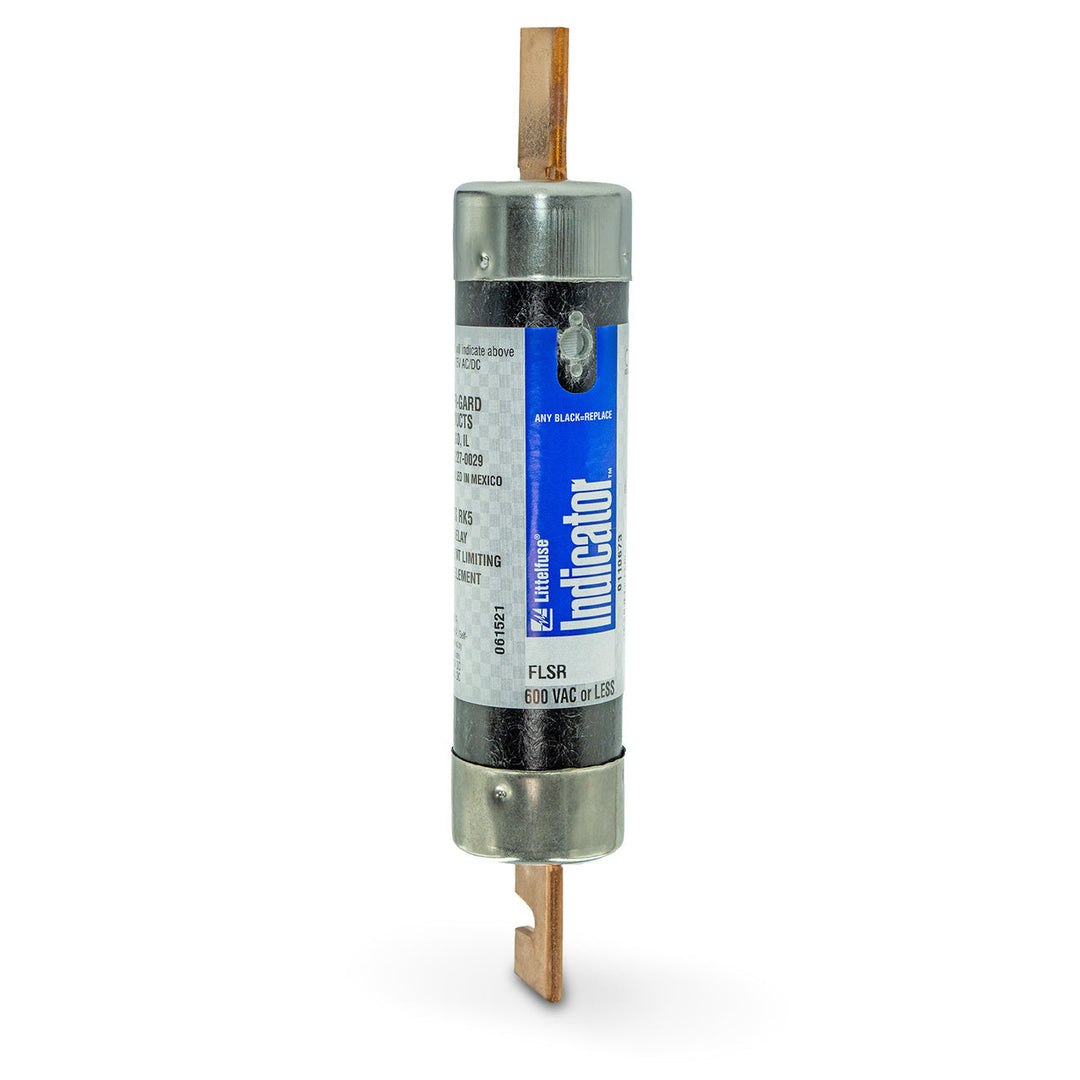

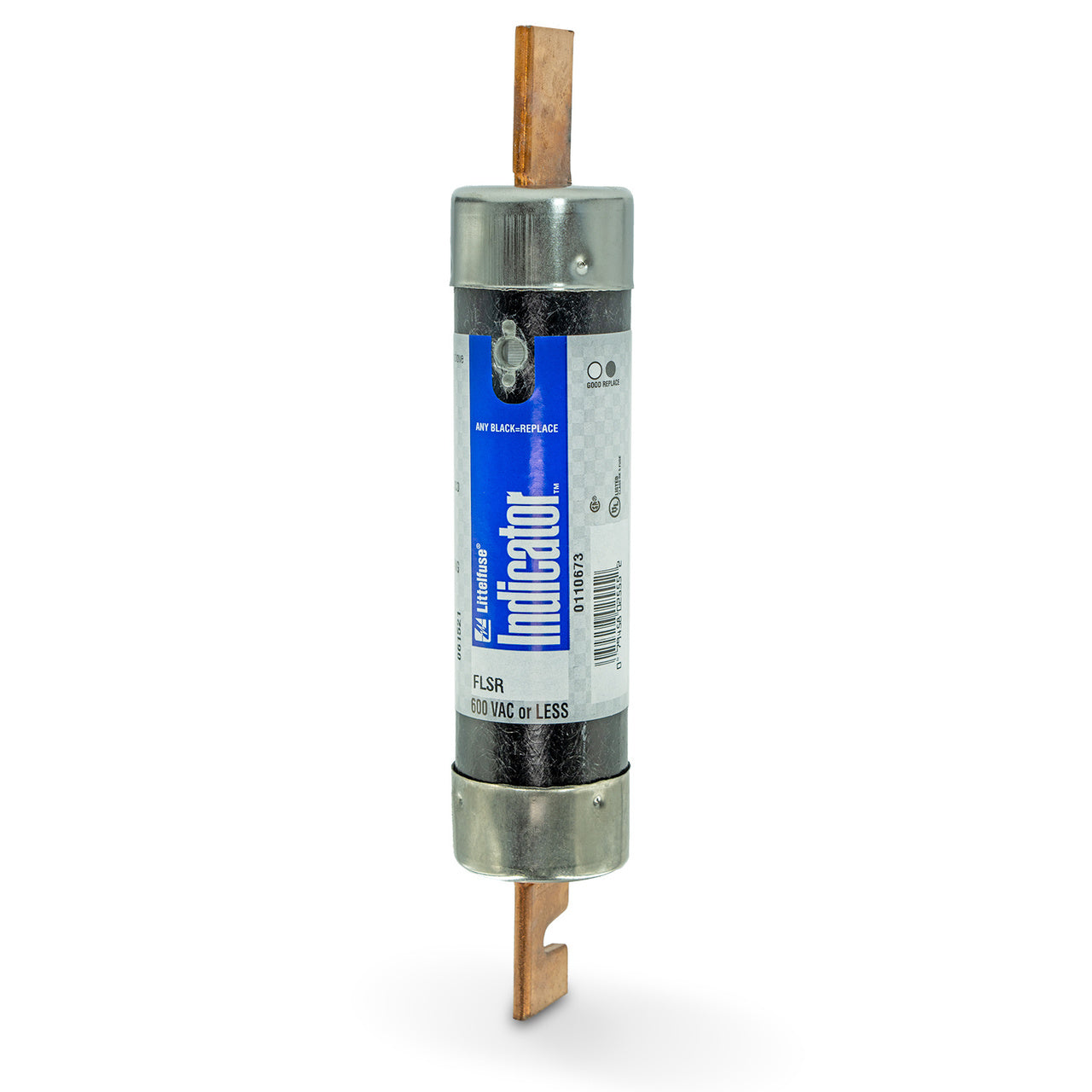

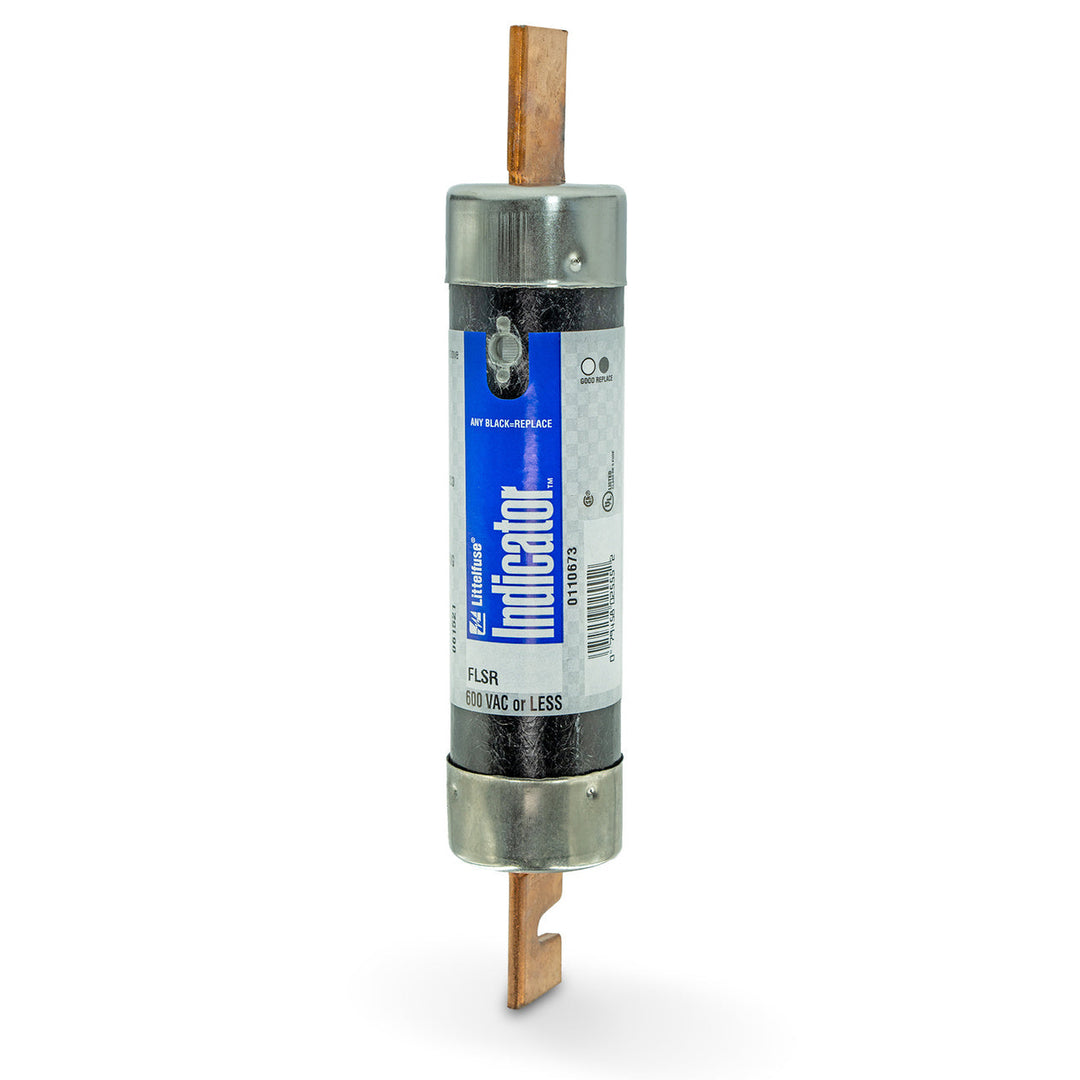

Littelfuse FLSR-175ID - RK5 Class Fuse 175A@600V (200kA AIC)

Littelfuse FLSR-175ID is a time-delay, current-limiting fuse from the Powr-Gard family, designed for circuit protection in industrial electrical systems. It features a 600V AC/DC voltage rating and 175A current rating with a 200kA interrupting capacity at 600V, housed in a compact 1.84-inch diameter plug-in barrel configuration with RK5 class rating. The fuse's current-limiting design provides selective coordination and overload protection while meeting industry standards for low-voltage applications. Typical uses include motor branch circuits, transformers, and power distribution equipment requiring high interrupting capacity.

Key Features & Specifications

• Type: Time-delay current-limiting fuse (FLSR_ID)
• Voltage Rating: 600V AC/DC
• Current Rating: 175A
• Dimensions: 1.84" diameter
• Standards: RK5 class rated
• Applications: Motor circuits, transformers, power distribution
• Connection: Plug-In
• Barrels: 1
• AIC rating: 200kA@600V
• Weight: 1 lb

Product Identification

• UPC: 07945802554
• GTIN: 00079458025545
