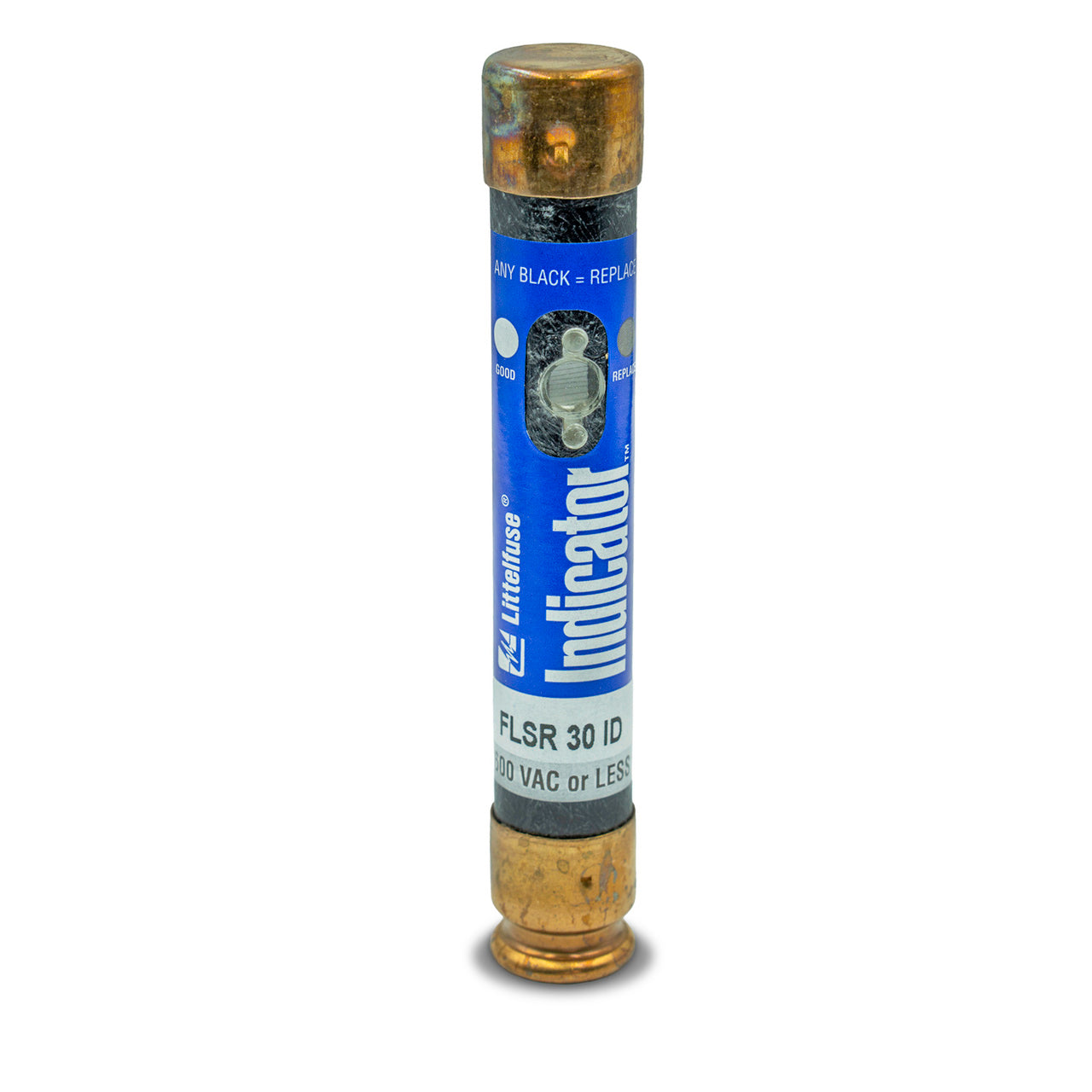

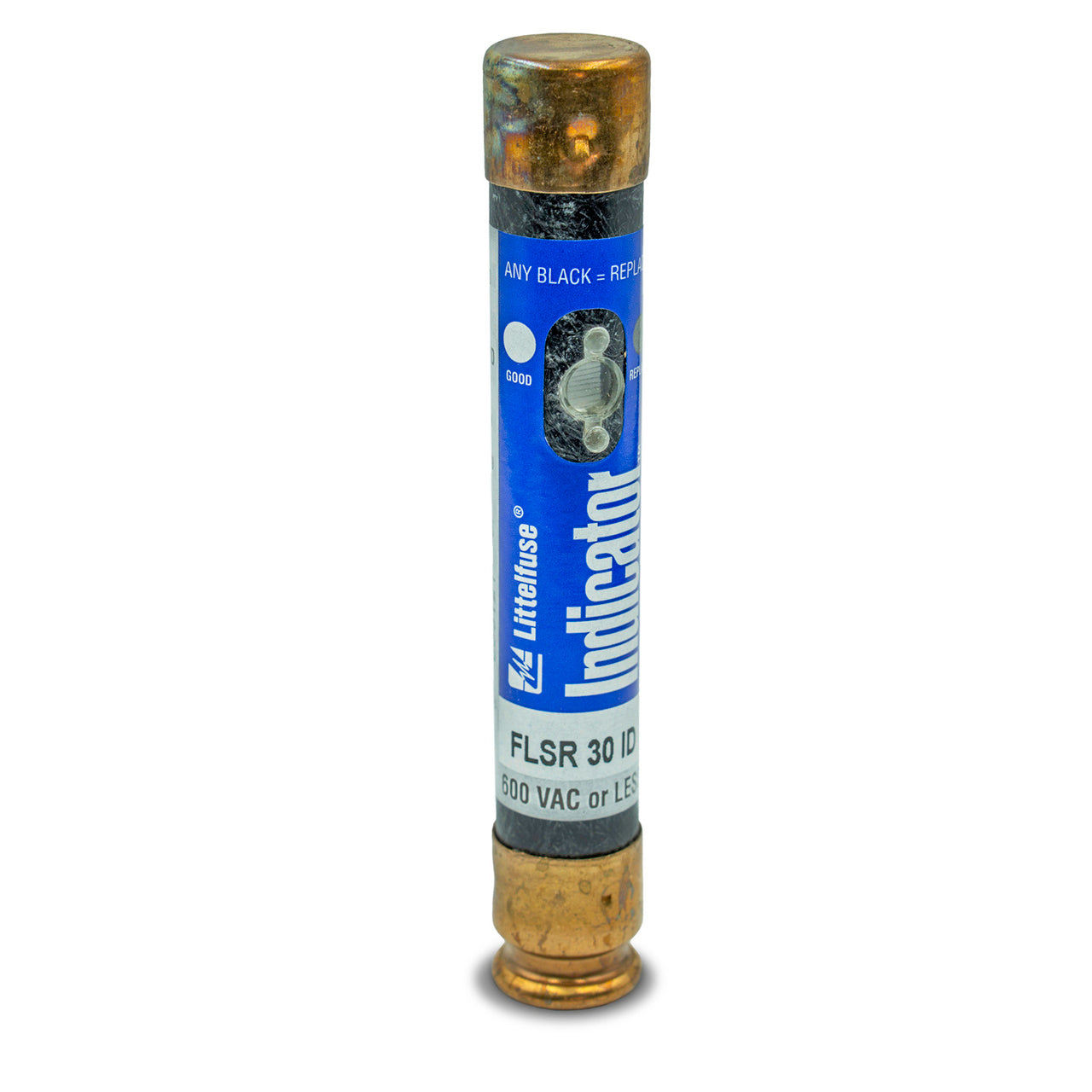

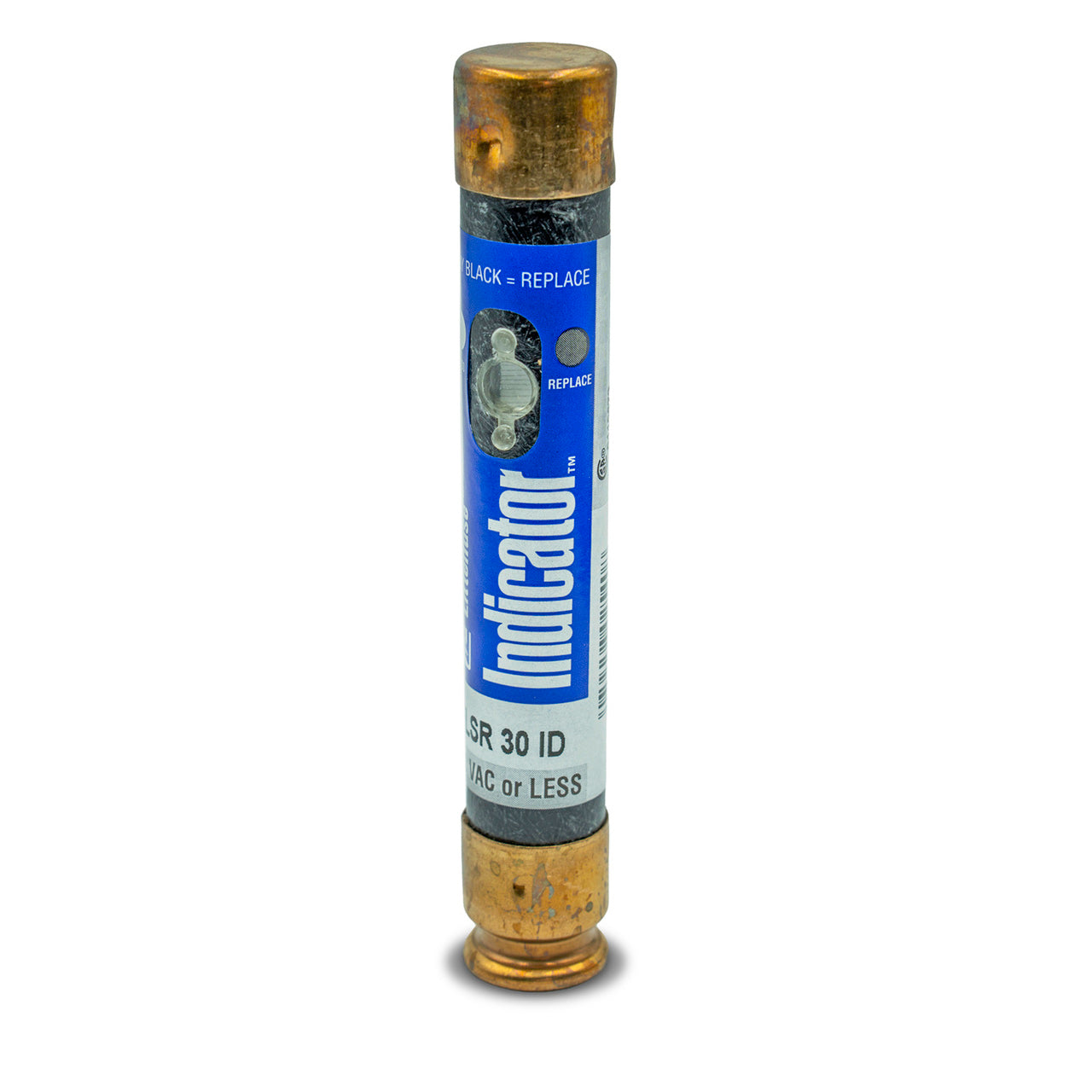

Littelfuse FLSR-030ID - RK5 Time-Delay Fuse 30A@600V (200kA AIC)

Littelfuse FLSR-030ID is a time-delay low-voltage fuse designed for circuit protection in industrial power distribution systems. This RK5-class fuse features a 600V AC/DC voltage rating and 30A current rating with a 200kA interrupting capacity at 600V for reliable short-circuit protection. The compact 0.81-inch diameter ferrule design features a single-barrel construction with time-delay characteristics for motor circuit applications. Compliant with UL/CSA standards, this Powr-Gard series fuse is engineered for use in panelboards, switchgear, and industrial control equipment requiring selective coordination.

Key Features & Specifications

• Type: Time-delay low-voltage fuse (FLSR_ID) with RK5 class rating
• Voltage Rating: 600V AC/DC
• Current Rating: 30A
• Dimensions: 0.81" diameter ferrule connection
• Standards: UL/CSA compliant
• Applications: Industrial power distribution, motor circuits, panelboards
• AIC rating: 200kA@600V
• Connection: Ferrule
• Barrels: 1
• Class Rating: RK5

Product Identification

• UPC: 07945802540
• GTIN: 00079458025408
