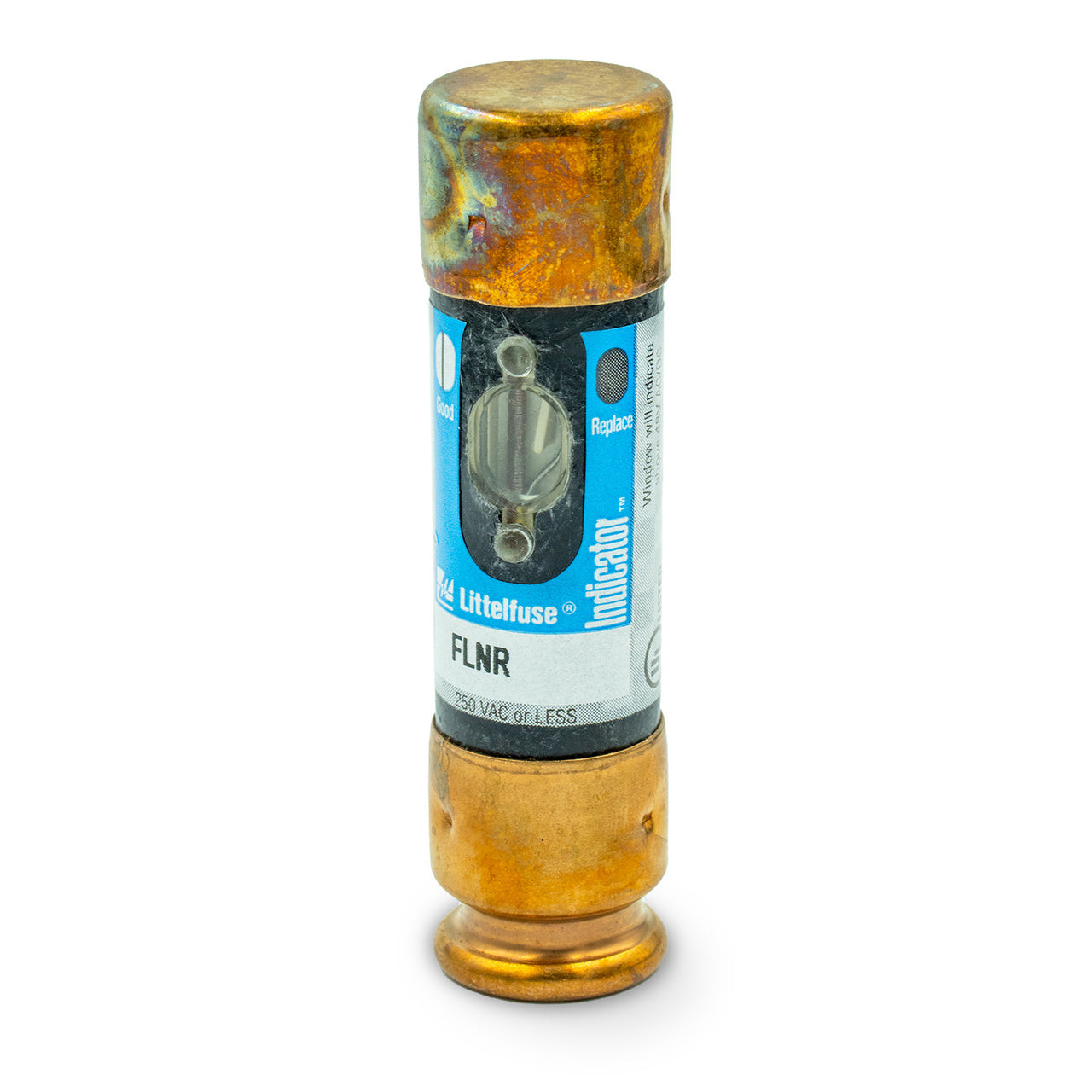

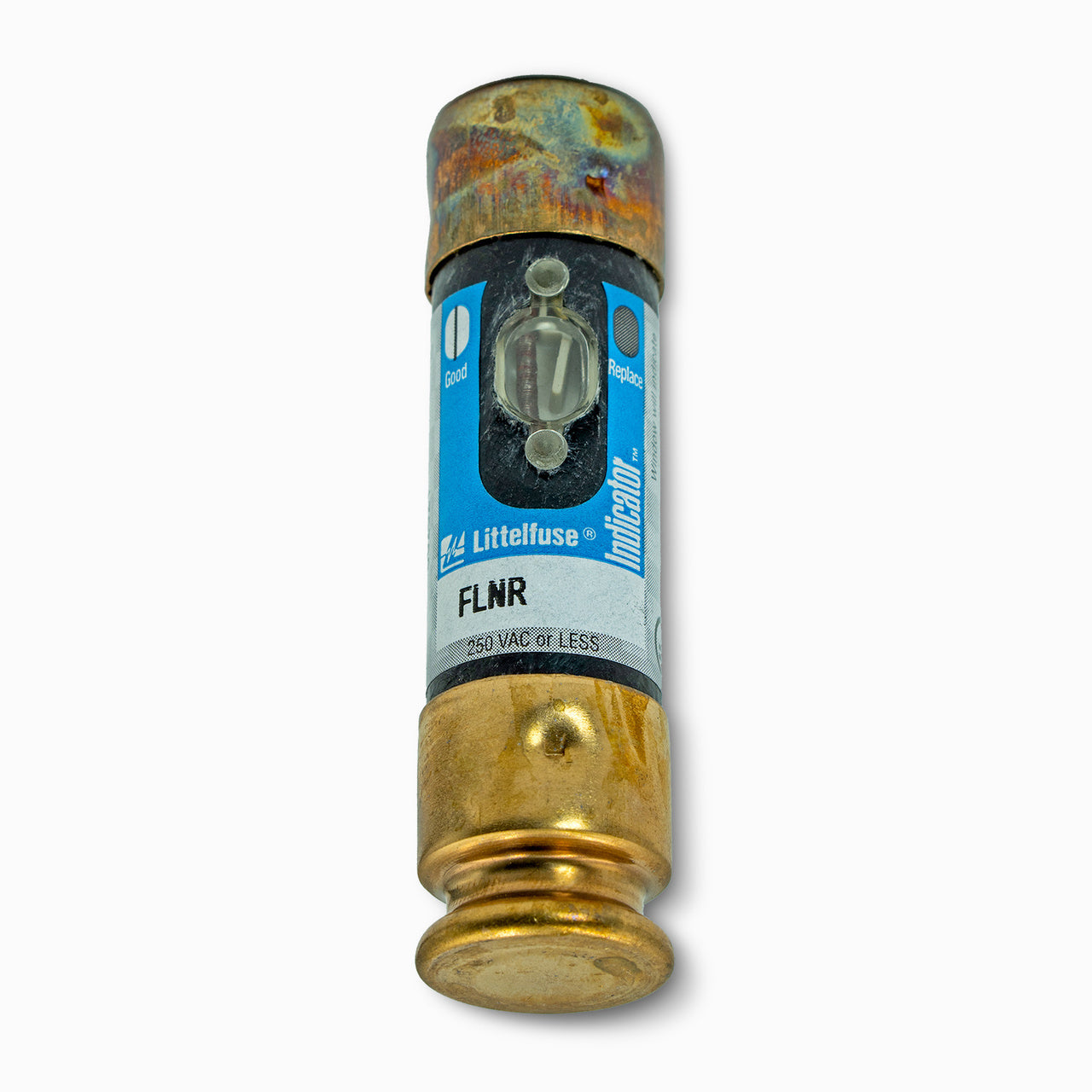

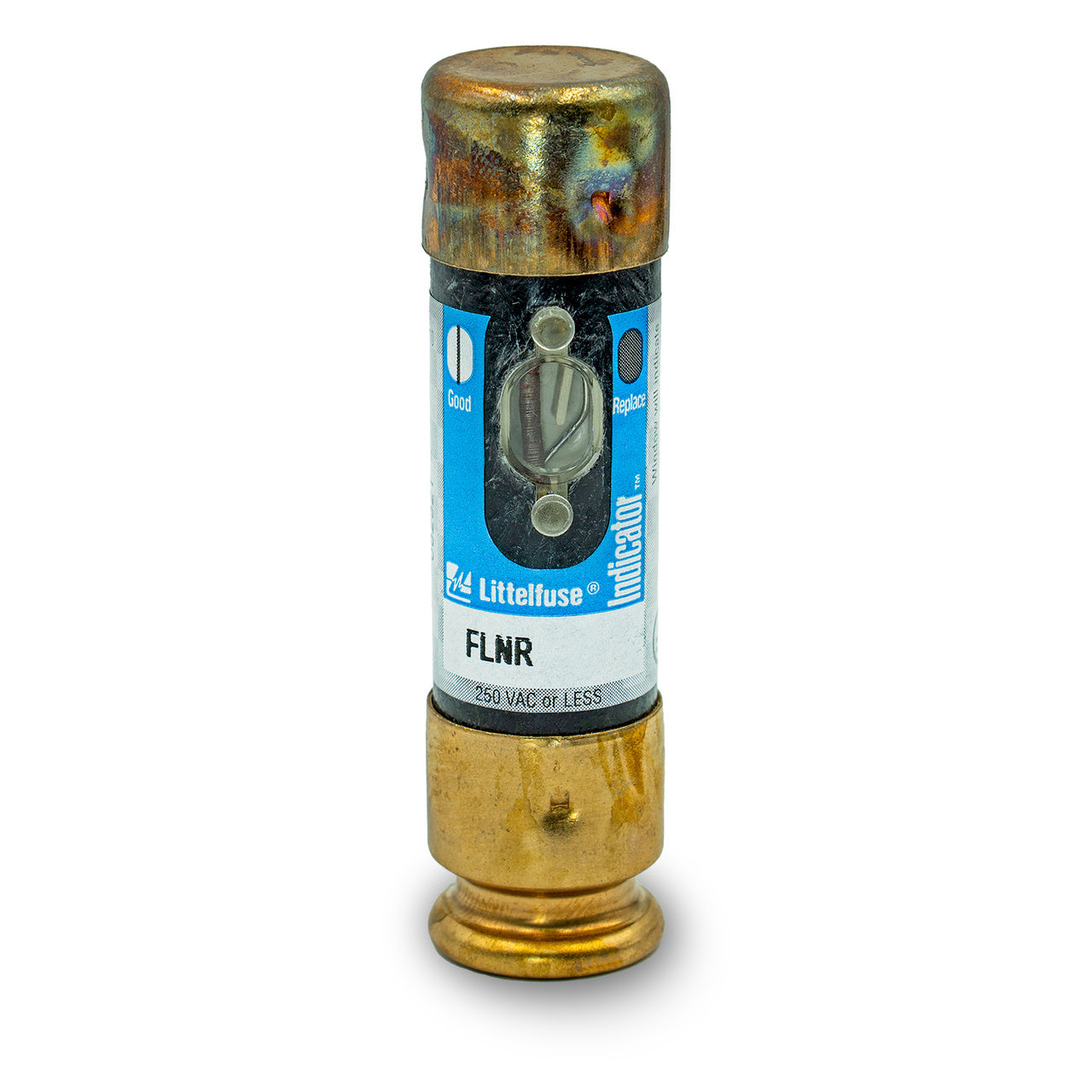

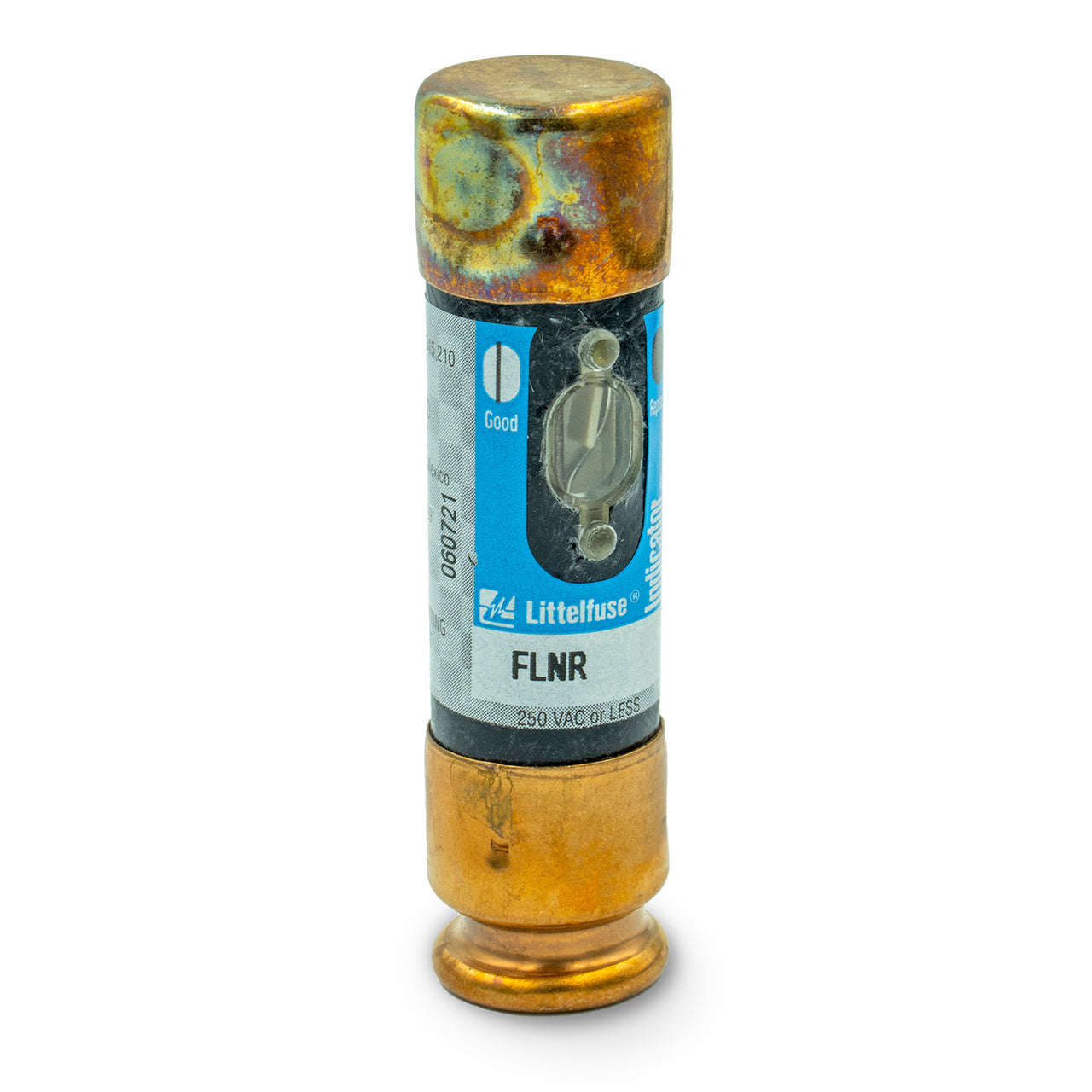

Littelfuse FLNR060ID - RK5 Time-Delay Fuse 60A 250V (200kA AIC)

Littelfuse FLNR060ID is a UL Class RK5 dual-element time-delay fuse designed for circuit protection in industrial applications. Rated for 250V AC/DC systems with a 60A current capacity, it features a 200kA interrupting rating at 250V for reliable overcurrent protection. The fuse measures 0.81" in diameter with ferrule rejection terminals and time-delay characteristics for motor circuit applications. Certified to CSA, cUL, and UL standards, it's commonly used in panelboards, switchgear, and industrial control systems requiring durable protection.

Key Features & Specifications

• Type: UL Class RK5 dual-element time-delay fuse with indication
• Voltage Rating: 250V AC/DC
• Current Rating: 60A
• Dimensions: 0.81" diameter x 3" length
• Standards: CSA, cUL, UL listed
• Applications: Industrial control systems, panelboards, switchgear
• Class Rating: RK5
• Connection: Ferrule rejection
• Barrels: 1
• Velocity: Time-delay (TD)
• AIC rating: 200kA@250V
• Weight: 0.12 lb

Product Identification

• UPC: 079458023848
• GTIN: 00079458023848
