Littelfuse FLNR060 - RK5 Time-Delay Fuse 60A 250V (200kA AIC)
FLNR060 Littelfuse FLNR Series - UL Class RK5 Dual-Element Time-Delay Fuses Low Voltage Fuse 250V 60A Fuse - Essential Electric Supply
FLNR060 Littelfuse FLNR Series - UL Class RK5 Dual-Element Time-Delay Fuses Low Voltage Fuse 250V 60A Fuse - Essential Electric Supply
FLNR060 Littelfuse FLNR Series - UL Class RK5 Dual-Element Time-Delay Fuses Low Voltage Fuse 250V 60A Fuse - Essential Electric Supply
FLNR060 Littelfuse FLNR Series - UL Class RK5 Dual-Element Time-Delay Fuses Low Voltage Fuse 250V 60A Fuse - Essential Electric Supply
FLNR060 Littelfuse FLNR Series - UL Class RK5 Dual-Element Time-Delay Fuses Low Voltage Fuse 250V 60A Fuse - Essential Electric Supply
Littelfuse FLNR060 - RK5 Time-Delay Fuse 60A 250V (200kA AIC)

Littelfuse FLNR060 - RK5 Time-Delay Fuse 60A 250V (200kA AIC)

Littelfuse
Price
Save $13.44
/
Title
  • Low stock - 7 items left
  • Backordered, shipping soon
Call for Price

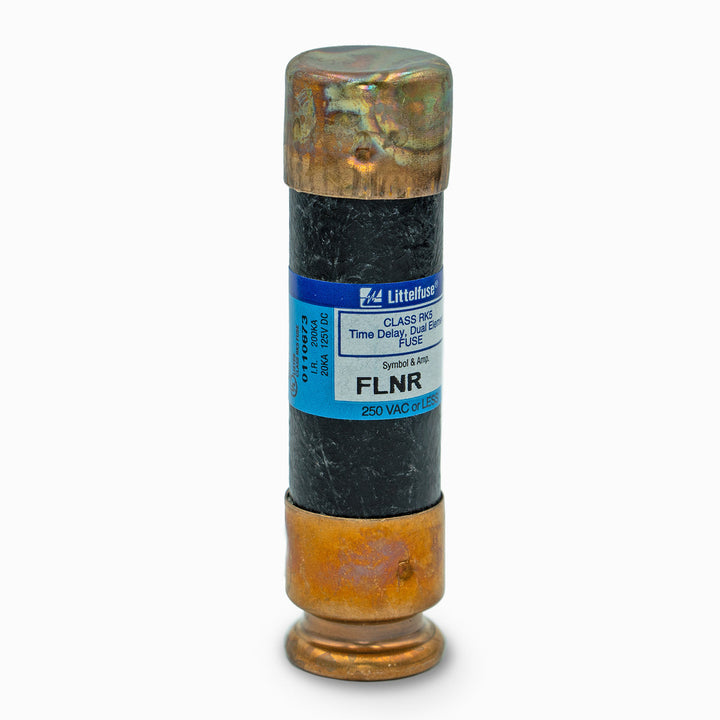

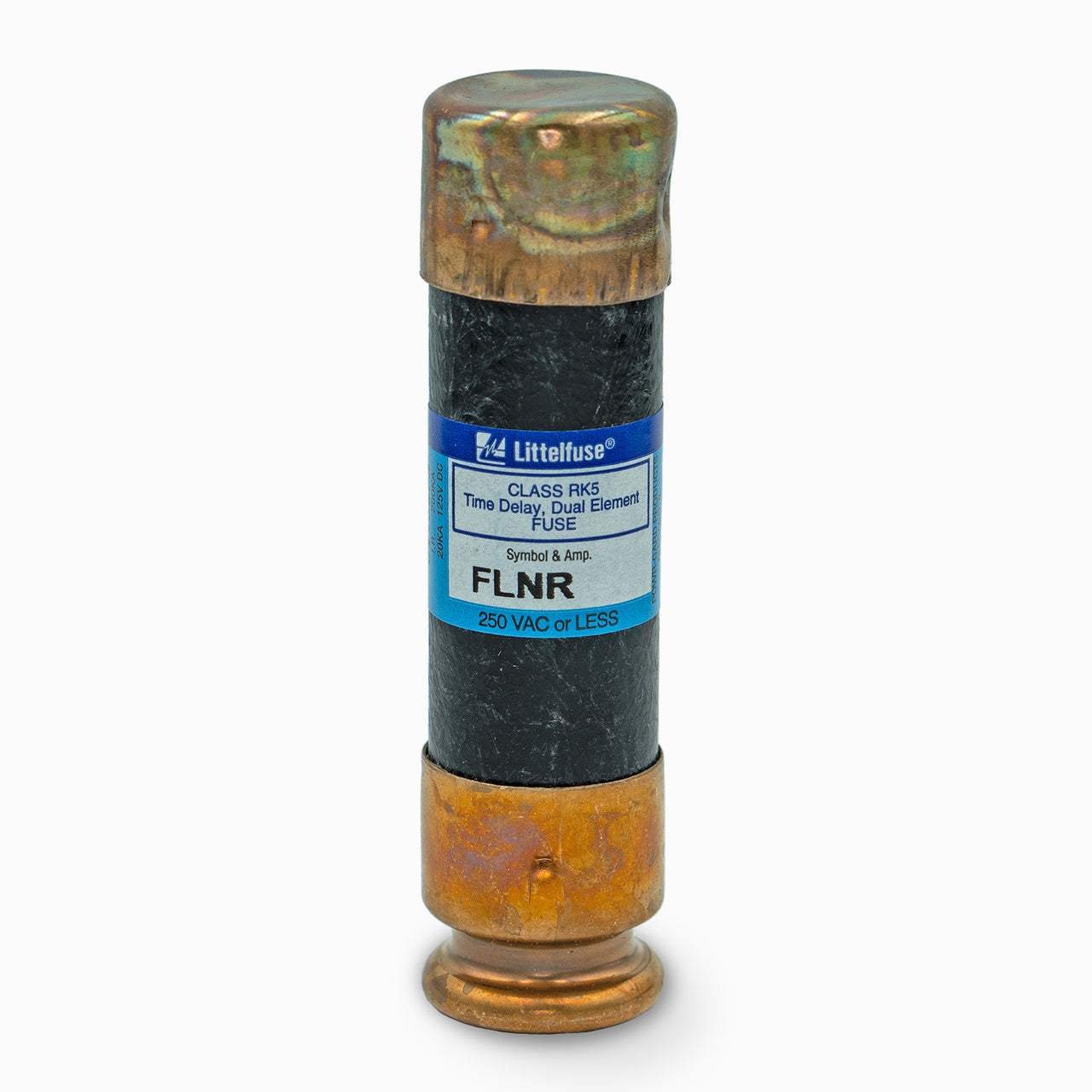

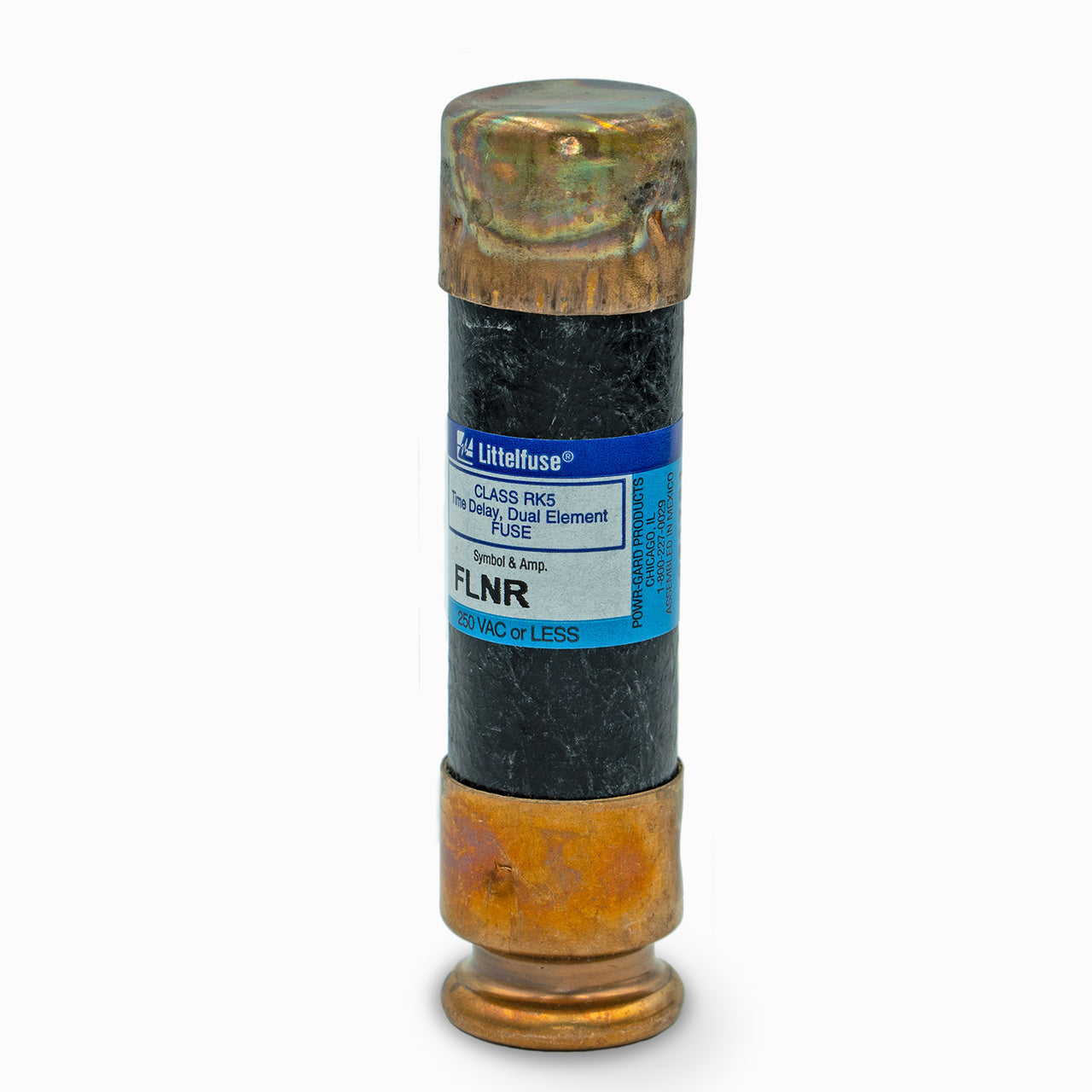

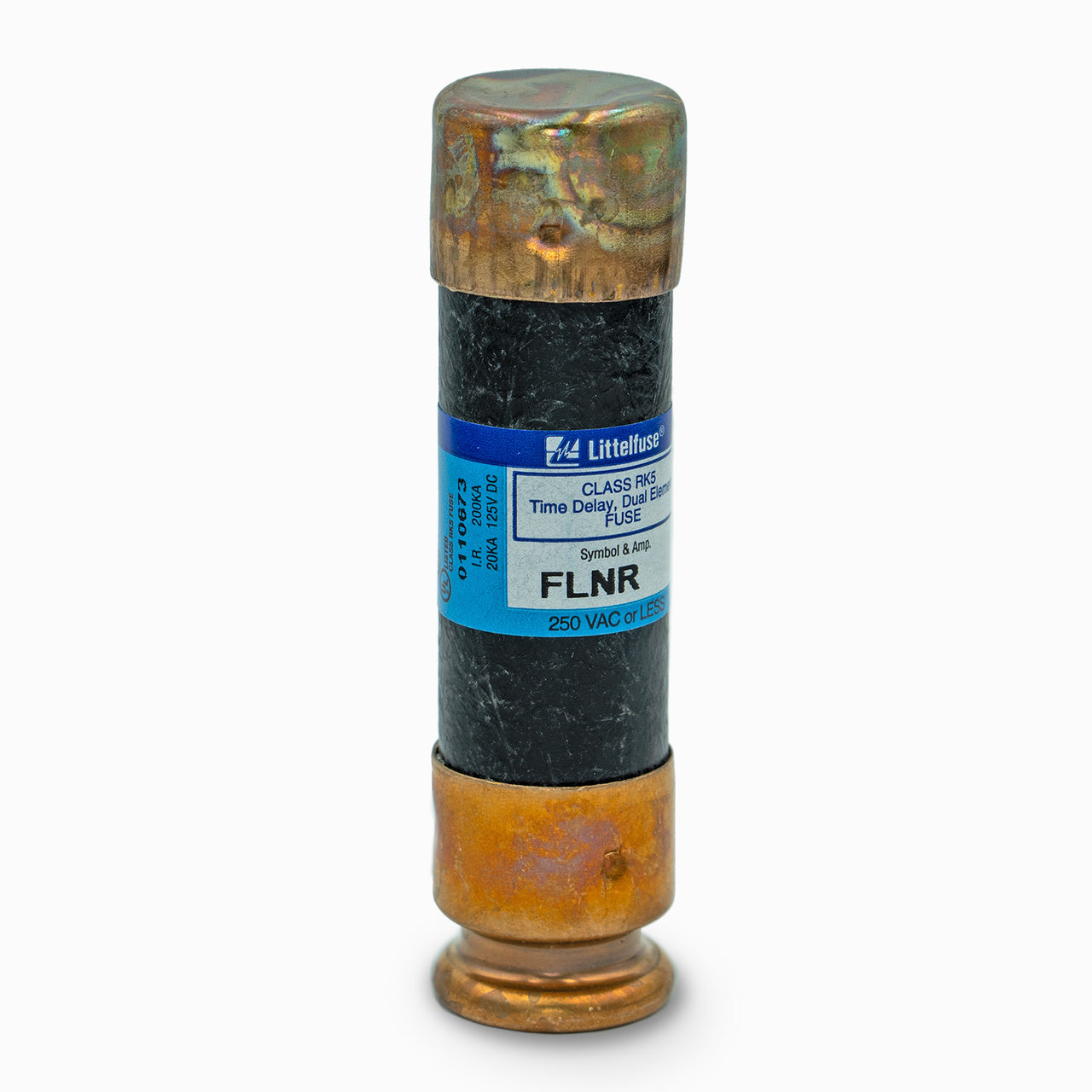

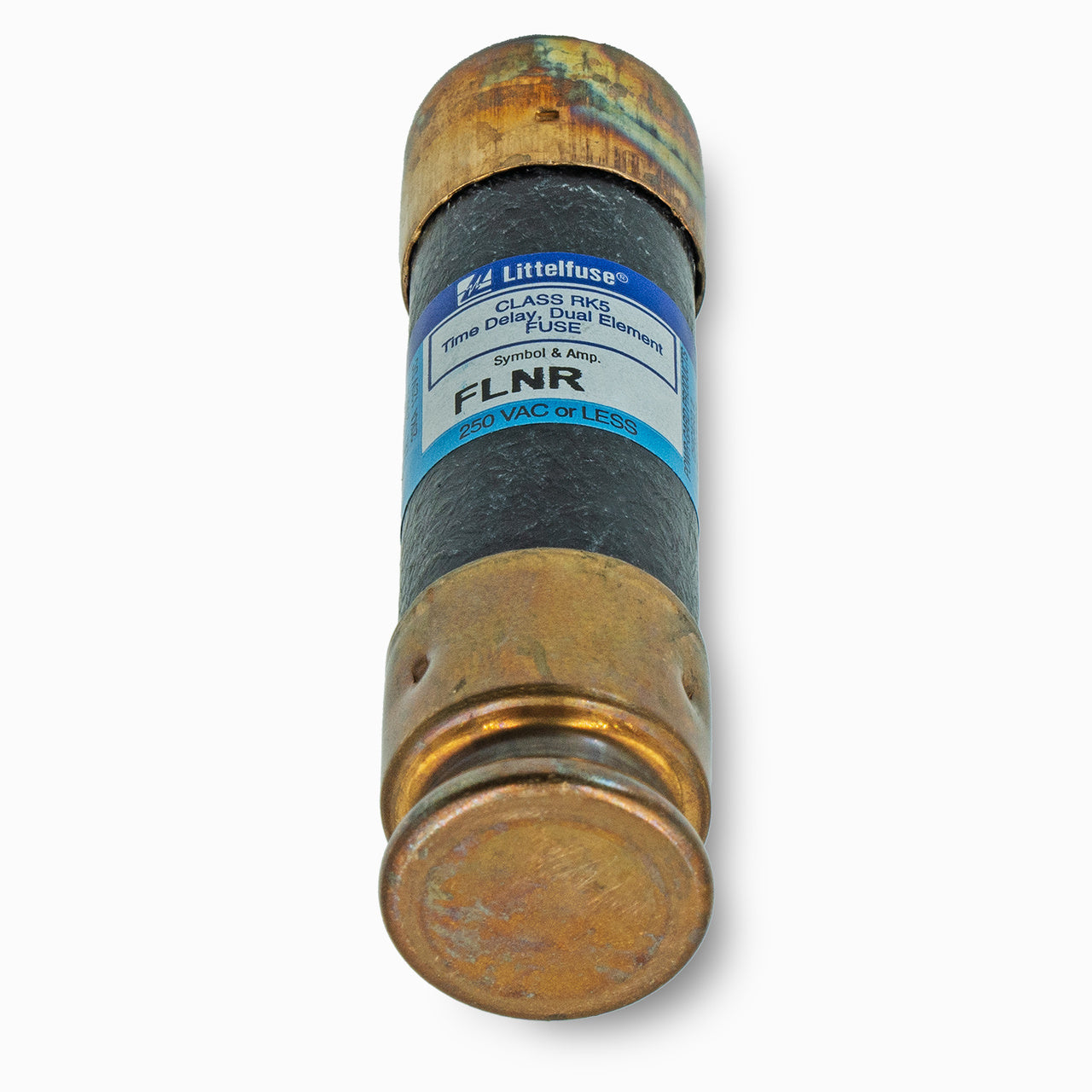

Littelfuse FLNR060 is a UL Class RK5 dual-element time-delay fuse designed for circuit protection in industrial electrical systems. Rated for 250V AC/DC operation with a 60A current rating, it features a ferrule rejection connection and time-delay characteristics for overload protection. The fuse measures 0.56" in diameter with a 3" length and weighs 0.44 lb, constructed with durable materials meeting UL 248-12 Class RK5, CSA, and CE standards. With a 200kA interrupting capacity at 250V, it provides reliable protection for motor circuits, transformers, and power distribution equipment in commercial and industrial applications.

Key Features & Specifications
  • Type: UL Class RK5 dual-element time-delay fuse
  • Voltage Rating: 250V AC/DC
  • Current Rating: 60A
  • Dimensions: 0.56" diameter x 3" length
  • Weight: 0.44 lb
  • Standards: UL 248-12 Class RK5, CSA, CE, QPL-W-F-1814
  • Applications: Motor circuits, transformers, power distribution
  • Connection: Ferrule rejection
  • Barrels: 1
  • Velocity: Time-delay (TD)
  • AIC rating: 200kA@250V
  • Class Rating: RK5
Product Identification
  • UPC: 07945815078
  • GTIN: 00079458150780
