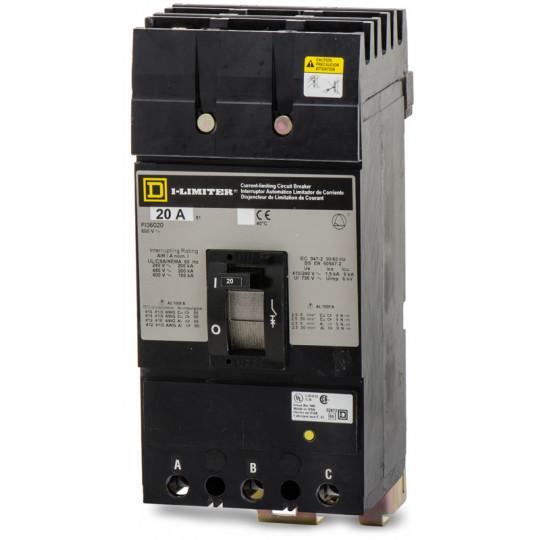

Square D FI36020 - Molded Case Circuit Breaker, 20A 600V 3-Pole
Square D FI36020 - Molded Case Circuit Breaker, 20A 600V 3-Pole

Square D FI36020 - Molded Case Circuit Breaker, 20A 600V 3-Pole

Square D
Price
Save $1,611.73
/
Condition
  • Low stock - 1 item left
  • Backordered, shipping soon
Call for Price
Square D FI36020 is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in three-phase industrial power distribution systems. It features a 20A current rating and a 600V AC voltage rating, housed within a compact F-frame design measuring 475.49 mm (18.72 in) in length and weighing 12 lb. The breaker is constructed for robust performance across an operating temperature range of -25 to 70 °C and offers thermal-magnetic protection with long-time and instantaneous (LI) trip functions. It complies with industry standards for applications requiring a high interrupting capacity of 200kA at 480V AC, making it suitable for use in panelboards and switchboards within commercial and industrial facilities.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Thermal-Magnetic Protection with Long-Time and Instantaneous (LI) Trip
  • Voltage Rating: 600V AC
  • Current Rating: 20A
  • Dimensions: 475.49 mm Length (18.72 in)
  • Standards: Industry Standard for High Interrupting Capacity
  • Applications: Industrial and Commercial Power Distribution in Panelboards and Switchboards
  • Phase: 3
  • AIC Rating: 200kA @ 480V AC
  • Connection: I-Line Style Plug-In
  • Poles: 3
  • Protection: Thermal Magnetic
  • Functions: LI - Long-Time and Instantaneous Trip
  • Frame Size: F Frame
  • Trip Type: Thermal-Magnetic
  • Temp Rating: -25 to 70 °C (-13 to 158 °F)
  • Weight: 12 lb


Product Identification
  • UPC: 785901210672
  • GTIN: 00785901210672
