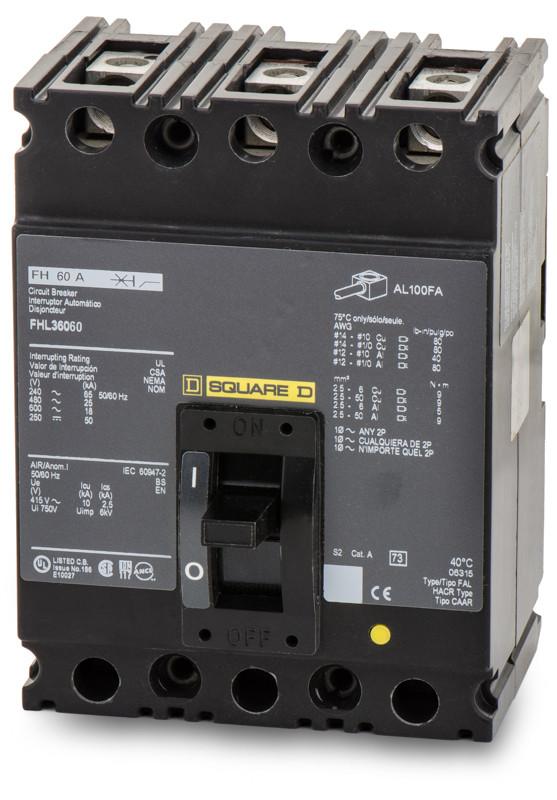

Square D FHL36060 - Molded Case Circuit Breaker 60A 600V 3P
Square D FHL36060 - Molded Case Circuit Breaker 60A 600V 3P

Square D FHL36060 - Molded Case Circuit Breaker 60A 600V 3P

Square D
Price
Save $1,365.73
/
Condition
  • Low stock - 3 items left
  • Backordered, shipping soon
Call for Price
Square D FHL36060 is a three-pole molded case circuit breaker designed to provide reliable overcurrent and short-circuit protection for three-phase industrial power distribution systems. It features a 60A current rating and a 600V AC voltage rating, housed within a compact F-frame measuring 162.6 mm H x 114.3 mm W x 104.9 mm D and weighing 4.817 lb. The breaker is UL Listed and CSA certified, incorporating a thermal-magnetic trip unit with long-time and instantaneous (LI) functions for coordinated protection. Its feed-thru connection and 25kA interrupting capacity at 480V AC make it suitable for panelboards, switchboards, and industrial control panels.

Key Features & Specifications
  • Type: Three-pole, molded case circuit breaker with thermal-magnetic protection and LI (Long-time and Instantaneous) trip functions
  • Voltage Rating: 600V AC
  • Current Rating: 60A
  • Dimensions: 6.4 in (162.6 mm) H x 4.5 in (114.3 mm) W x 4.13 in (104.90 mm) D
  • Standards: UL Listed, CSA Certified
  • Applications: Industrial power distribution, panelboards, switchboards, and control panels
  • Phase: 3
  • AIC Rating: 25kA @ 480V AC
  • Connection: Feed-Thru
  • Poles: 3
  • Protection: Thermal Magnetic
  • Functions: LI - Long-Time and Instantaneous Trip
  • Frame Size: F Frame
  • Weight: 4.817 lb
  • Family: FHL Series


Product Identification
  • UPC: 785901241461
  • GTIN: 00785901241461
