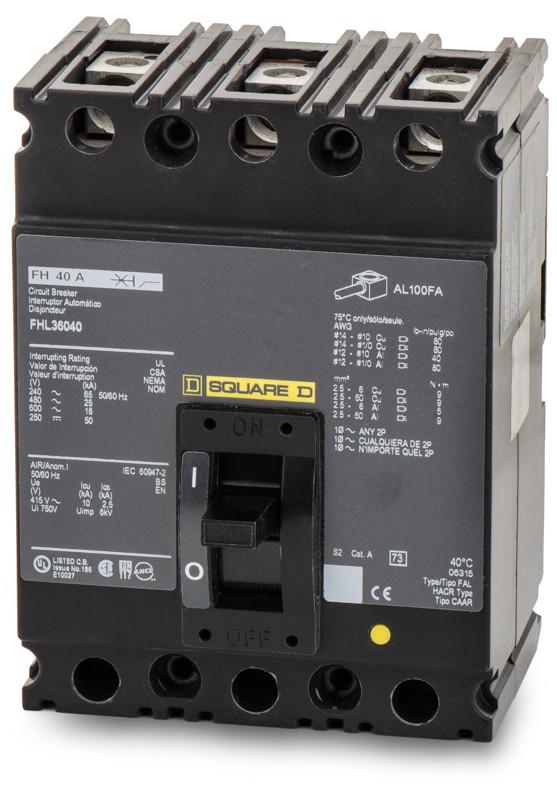

Square D FHL36040 - Molded Case Circuit Breaker, 40A 600V 3P
Square D FHL36040 - Molded Case Circuit Breaker, 40A 600V 3P

Square D FHL36040 - Molded Case Circuit Breaker, 40A 600V 3P

Square D
Price
Save $1,506.32
/
Condition
  • Low stock - 1 item left
  • Backordered, shipping soon
Call for Price
Square D FHL36040 is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in three-phase industrial power distribution systems. It features a 40A current rating and a 600V AC voltage rating, housed within a compact F-frame measuring 162.6 mm H x 114.3 mm W x 104.9 mm D and weighing 5.099 lb. The breaker is CSA and UL listed, ensuring compliance with North American safety standards, and its thermal-magnetic protection with long-time and instantaneous (LI) trip functions makes it suitable for protecting feeders and branch circuits in commercial and industrial panels.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, FHL Series, Thermal-Magnetic Protection
  • Voltage Rating: 600V AC
  • Current Rating: 40A
  • Dimensions: 6.4 in (162.6 mm) H x 4.5 in (114.3 mm) W x 4.13 in (104.90 mm) D
  • Standards: CSA-UL LISTED
  • Applications: Industrial power distribution, feeder and branch circuit protection
  • Switch Type: Circuit Breaker
  • Configuration: Fixed
  • Phase: 3
  • Amperage: 40A
  • AIC Rating: 25kA @ 480V
  • Connection: Feed-Thru
  • Poles: 3
  • Protection: Thermal Magnetic
  • Functions: LI - Long-Time and Instantaneous Trip
  • Frame Size: F Frame
  • Trip Type: Thermal-Magnetic
  • Breaker Type: Molded Case
  • Mounting: Panel Mount
  • Certification: CSA, UL
  • Circuit Breaker Mounting Style: Fixed
  • Terminal Connection: Screw
  • Standards: UL 489, CSA C22.2 No. 5


Product Identification
  • UPC: 785901241447
  • GTIN: 00785901241447
