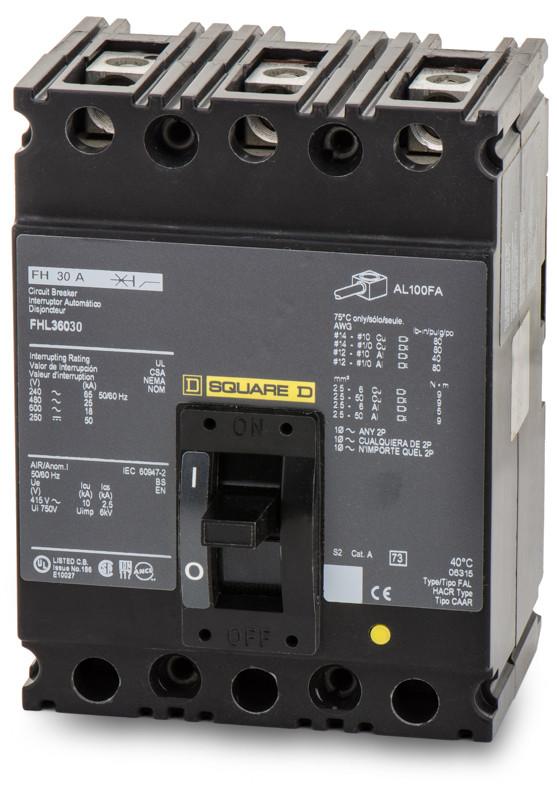

Square D FHL36030 - Molded Case Circuit Breaker, 30A 600V 3P
Square D FHL36030 - Molded Case Circuit Breaker, 30A 600V 3P

Square D FHL36030 - Molded Case Circuit Breaker, 30A 600V 3P

Square D
Price
Save $-785.89
/
Condition
  • Low stock - 4 items left
  • Backordered, shipping soon
Call for Price
Square D FHL36030 is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in three-phase industrial power distribution systems. It features a 30A current rating and a 600V AC voltage rating, housed within a compact F-frame design measuring 162.6 mm H x 114.3 mm W x 104.9 mm D and weighing 4.791 lb. The breaker is UL LISTED and utilizes a thermal-magnetic trip unit with long-time and instantaneous (LI) protection functions, offering an interrupting capacity of 25kA at 480V AC. Its feed-thru connection and robust construction make it suitable for panelboards, switchboards, and industrial control panels.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Thermal-Magnetic Protection, FHL Series
  • Voltage Rating: 600V AC
  • Current Rating: 30A
  • Dimensions: 6.4 in (162.6 mm) H x 4.5 in (114.3 mm) W x 4.13 in (104.90 mm) D
  • Standards: UL LISTED
  • Applications: Industrial Power Distribution, Panelboards, Switchboards
  • Phase: 3
  • AIC Rating: 25kA @ 480V AC
  • Connection: Feed-Thru
  • Poles: 3
  • Protection: Thermal Magnetic
  • Functions: Long-Time and Instantaneous (LI)
  • Frame Size: F Frame
  • Weight: 4.791 lb


Product Identification
  • UPC: 785901241430
  • GTIN: 00785901241430
