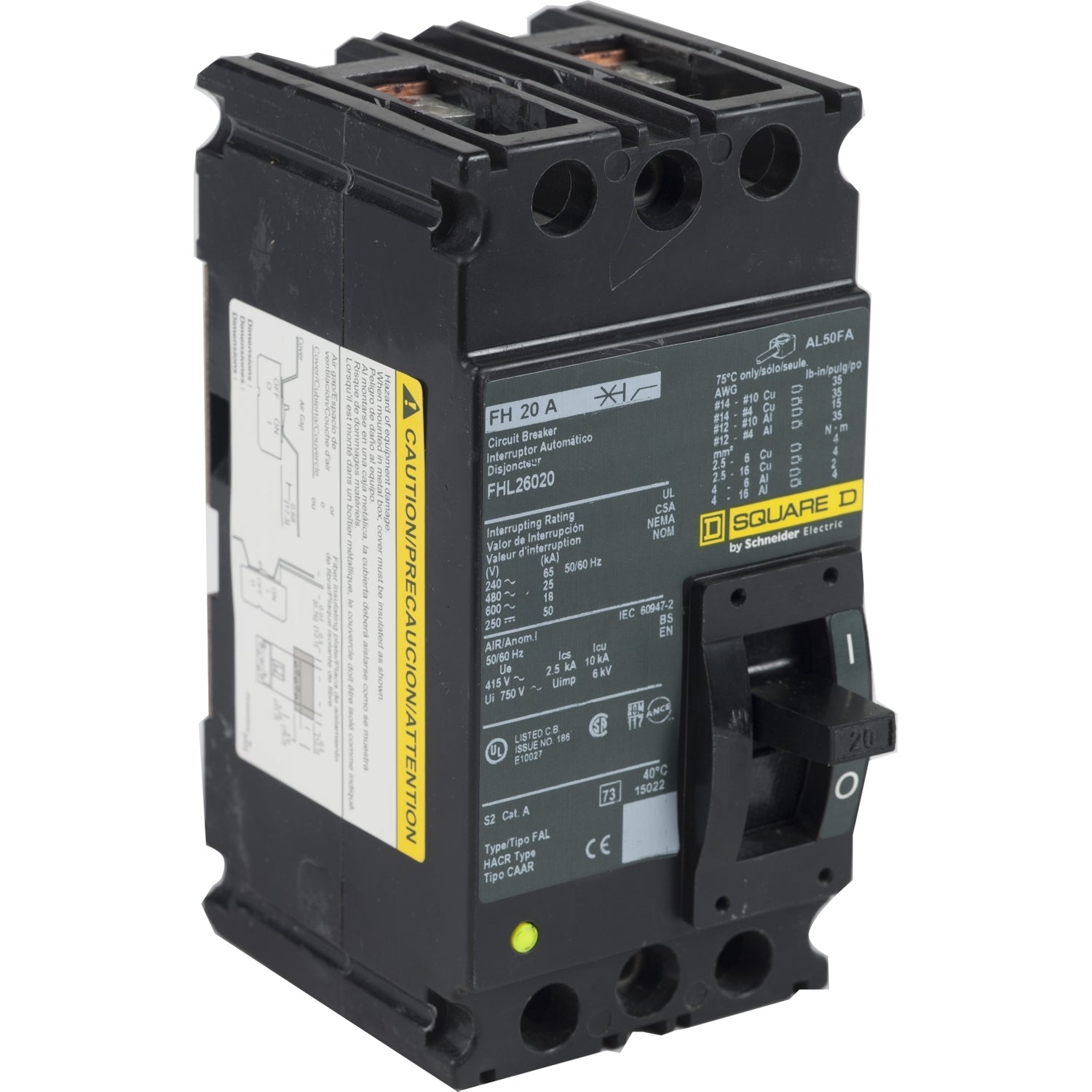

Square D FHL26020 - Molded Case Circuit Breaker 20A 600V 2-Pole
Square D FHL26020 - Molded Case Circuit Breaker 20A 600V 2-Pole

Square D FHL26020 - Molded Case Circuit Breaker 20A 600V 2-Pole

Square D
Price
Save $1,407.46
/
Condition
  • Low stock - 1 item left
  • Backordered, shipping soon
Call for Price
Square D FHL26020 is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in industrial electrical systems. It features a 20A current rating and a 600V voltage rating, housed within a compact F-frame design measuring 162.6 mm H x 76.2 mm W x 104.9 mm D and weighing 3.051 lb. The breaker is UL LISTED and CSA certified, utilizing a thermal-magnetic trip unit with long-time and instantaneous functions to ensure compliance with industry safety standards. Its 2-pole, feed-thru configuration with a 25kA interrupting capacity at 480V makes it suitable for protecting branch circuits and equipment in commercial and industrial panelboards.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Thermal-Magnetic Protection
  • Voltage Rating: 600V AC
  • Current Rating: 20A
  • Dimensions: 6.4 in (162.6 mm) H x 3 in (76.2 mm) W x 4.13 in (104.90 mm) D
  • Standards: UL LISTED, CSA
  • Applications: Industrial Panelboards, Branch Circuit Protection
  • Switch Type: Circuit Breaker
  • Configuration: Feed-Thru
  • Phase: 1
  • AIC rating: 25kA @ 480V
  • Connection: Feed-Thru
  • Poles: 2
  • Protection: Thermal Magnetic
  • Functions: Long Time and Instantaneous
  • Frame Size: F Frame
  • Wire Size: Accepts #14 to #4 AWG Copper, #12 to #4 AWG Aluminum
  • Certification: UL LISTED-CSA
  • Family: FHL Series
  • Weight: 3.051 lb


Product Identification
  • UPC: 785901368540
  • GTIN: 00785901368540
