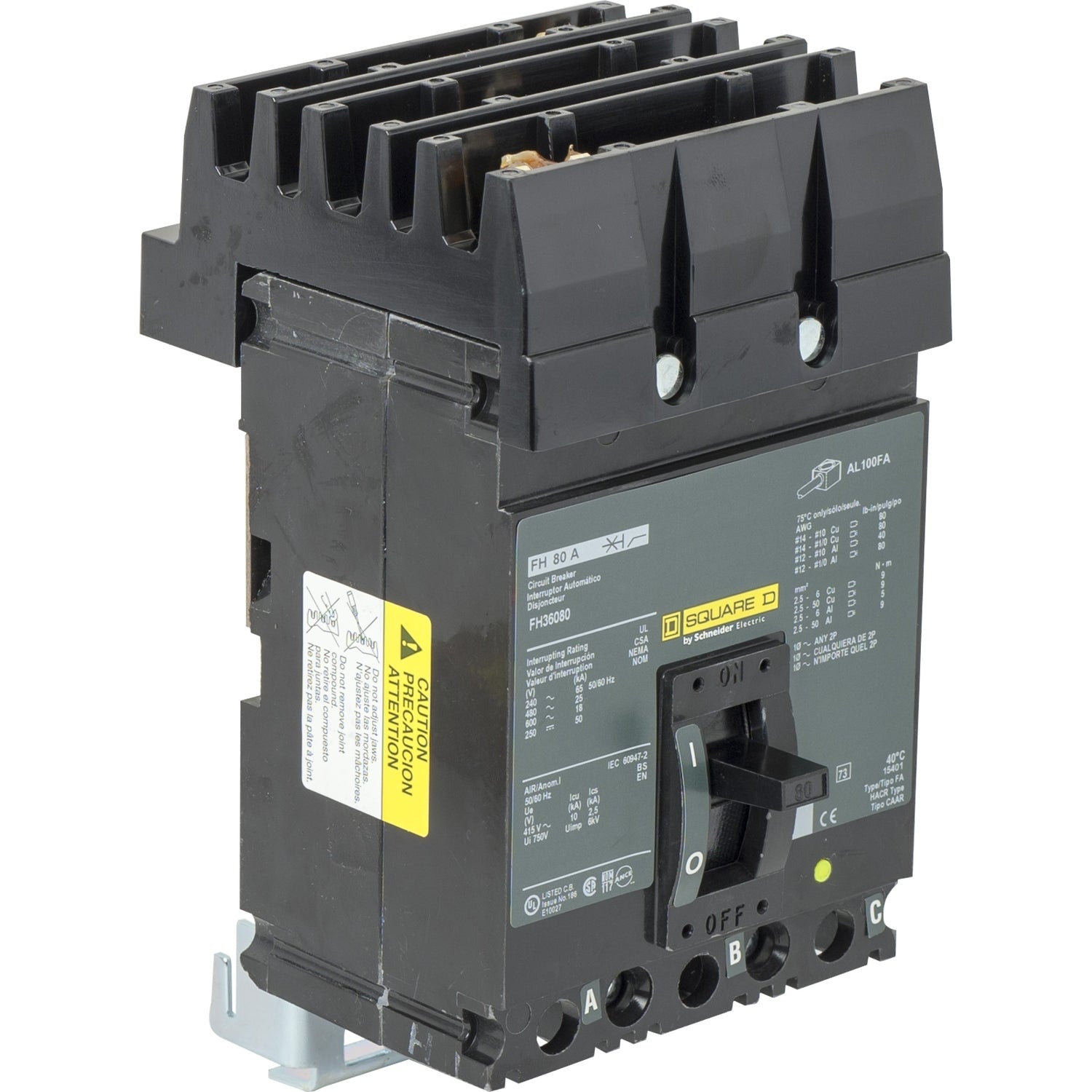

Square D FH36080 is a molded case circuit breaker designed for providing reliable overcurrent protection in three-phase industrial power distribution systems. It features a thermal-magnetic trip unit with long-time and instantaneous (LI) protection functions, rated for 80A at 600V AC with an interrupting capacity of 25kA at 480V. The breaker is constructed in a compact F-frame size with dimensions of 162.6 mm H x 114.3 mm W x 104.9 mm D and a weight of 6 lb, utilizing a plug-in I-Line style connection for simplified installation. It is engineered for operation in ambient temperatures from -25 to 70 °C and is suitable for integration into panelboards and switchboards requiring robust circuit protection.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Thermal-Magnetic Protection, I-Line Plug-In
  • Voltage Rating: 600V AC
  • Current Rating: 80A
  • Dimensions: 162.6 mm H x 114.3 mm W x 104.9 mm D (6.4 in x 4.5 in x 4.13 in)
  • Standards: Designed to meet applicable industry standards
  • Applications: Industrial power distribution, panelboards, switchboards
  • Switch Type: Circuit Breaker
  • Configuration: 3-Pole
  • Phase: 3
  • AIC rating: 25kA @ 480V
  • Connection: I-Line Style Plug-In
  • Poles: 3
  • Protection: Thermal Magnetic
  • Functions: LI - Long-Time and Instantaneous Trip
  • Frame Size: F Frame
  • Trip Type: Thermal-Magnetic
  • Temp Rating: -25 to 70 °C (-13 to 158 °F)
  • Weight: 6 lb
  • Family: I-Line
  • Country of Origin: Mexico


Product Identification
  • UPC: 785901342595
  • GTIN: 00785901342595
