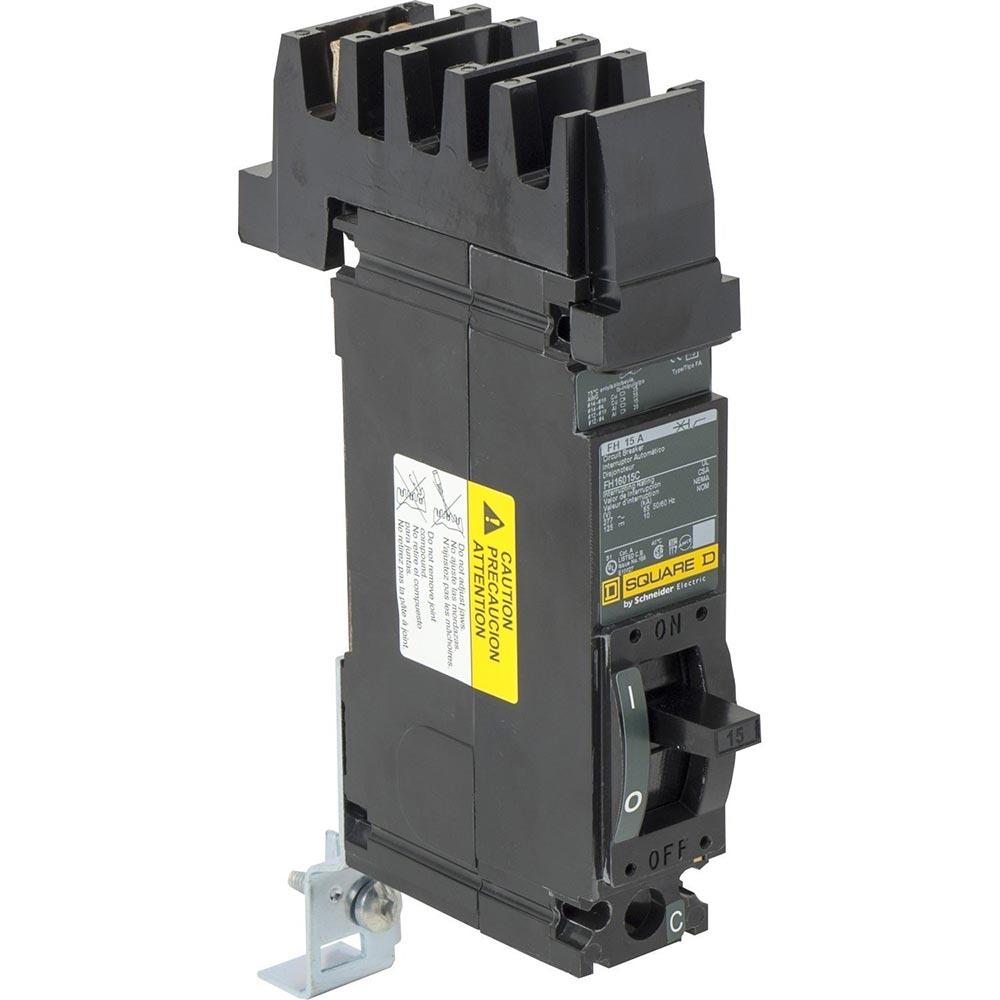

Square D FH16015C - Molded Case Breaker 15A 1P (277V, 25kA I-Line)
Square D FH16015C - Molded Case Breaker 15A 1P (277V, 25kA I-Line)

Square D FH16015C - Molded Case Breaker 15A 1P (277V, 25kA I-Line)

Square D
Price
Save $450.89
/
Condition
  • Low stock - 2 items left
  • Backordered, shipping soon
Call for Price
Square D FH16015C is a molded case circuit breaker designed for providing reliable overcurrent protection in industrial and commercial electrical systems. It features a 15A current rating and a 277V voltage rating, housed within a compact F Frame measuring 162.6 mm H x 38.1 mm W x 104.9 mm D and weighing 2 lb. This single-pole, plug-in breaker utilizes a thermal-magnetic trip mechanism for both long-time and instantaneous protection, is rated for 25kA interrupting capacity at 240V, and operates effectively across a temperature range of -25 to 70 °C. It is engineered for straightforward integration into I-Line panelboards, accepting aluminum or copper conductors from AWG 14 to AWG 4, and complies with relevant industry standards for safety and performance.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Thermal-Magnetic Protection, I-Line Plug-In
  • Voltage Rating: 277V AC
  • Current Rating: 15A
  • Dimensions: 162.6 mm H x 38.1 mm W x 104.9 mm D (6.4 in x 1.5 in x 4.13 in)
  • Standards: Meets applicable industry standards for circuit protection
  • Applications: Industrial and commercial electrical distribution, panelboard protection
  • Switch Type: Circuit Breaker
  • Configuration: Plug-In
  • Temp Rating: -25 to 70 °C (-13 to 158 °F)
  • Phase: 1
  • AIC Rating: 25kA @ 240V
  • Connection: I-Line Style Plug-In
  • Poles: 1
  • Protection: Thermal Magnetic
  • Functions: Long-Time and Instantaneous Trip
  • Frame Size: F Frame
  • Wire Size: AWG 14 to AWG 4, Aluminum/Copper
  • Weight: 2 lb


Product Identification
  • UPC: 078590156374
  • GTIN: 00785901563747
