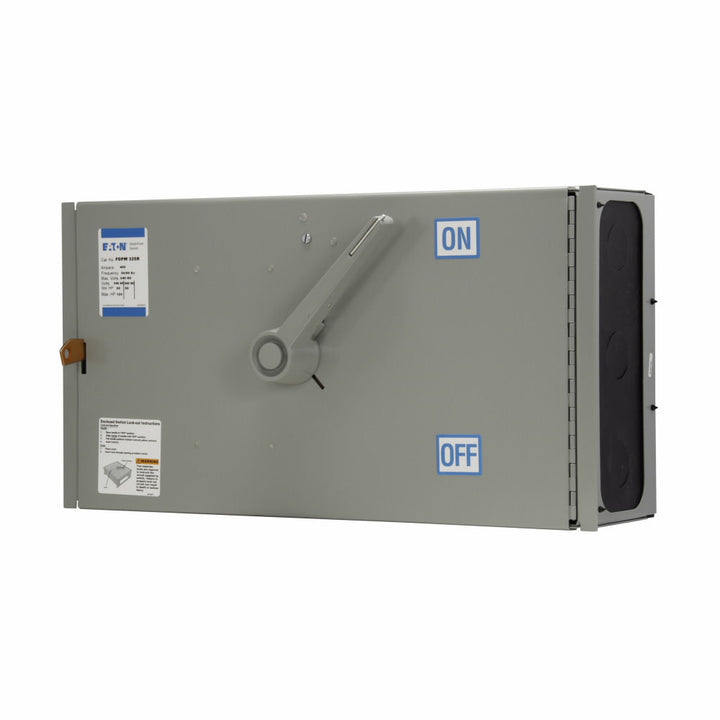

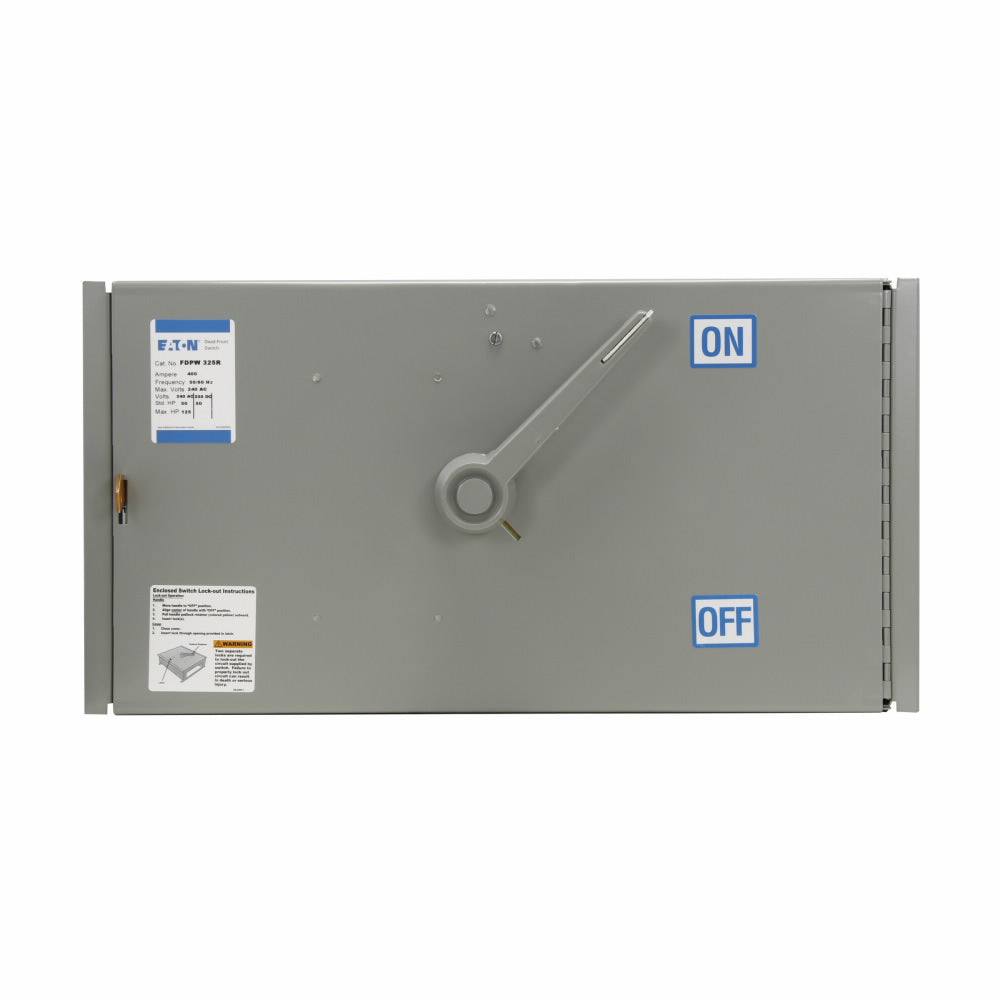

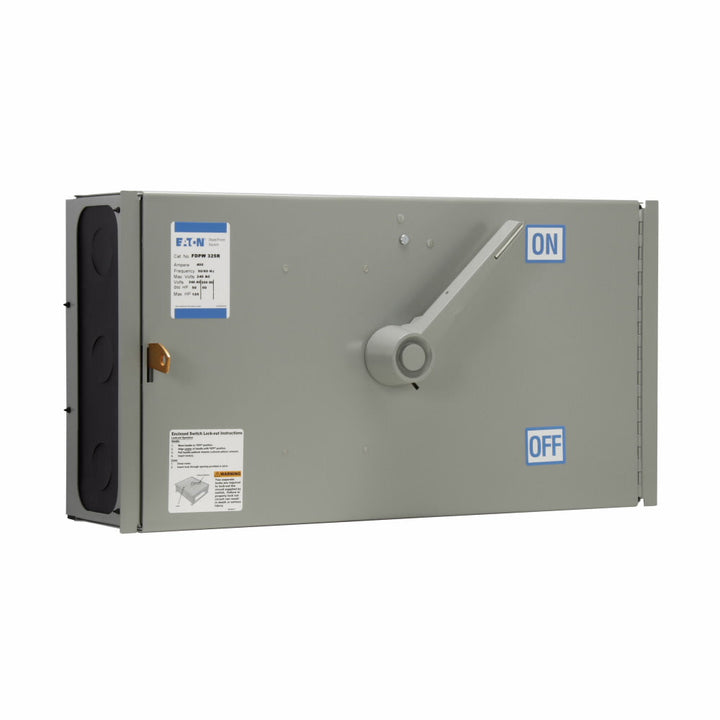

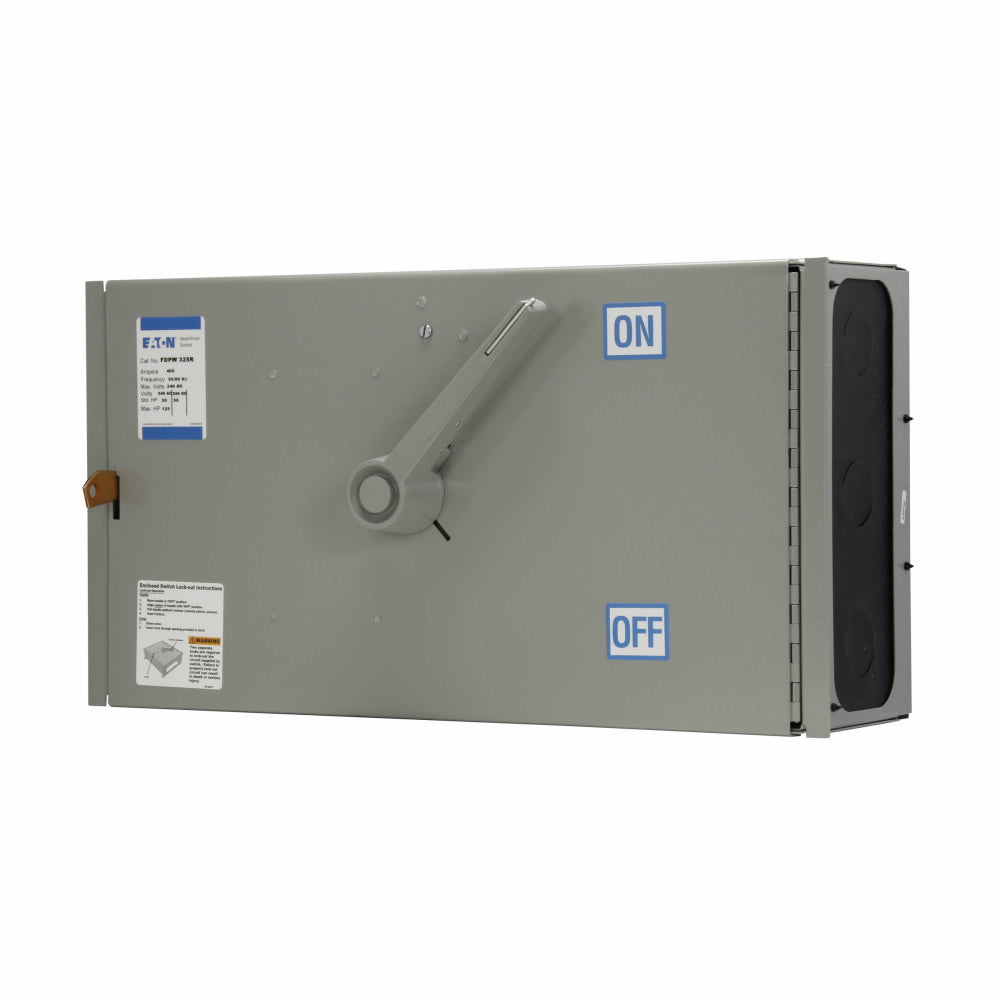

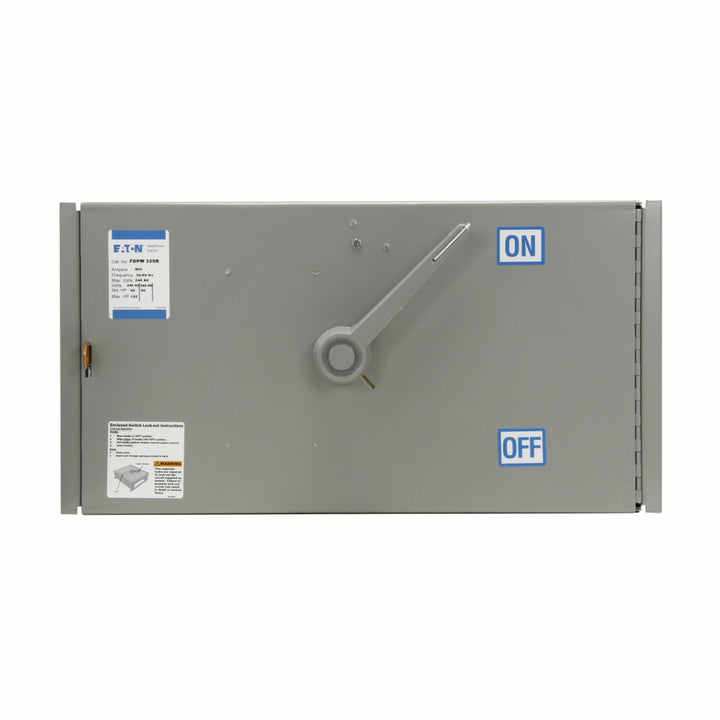

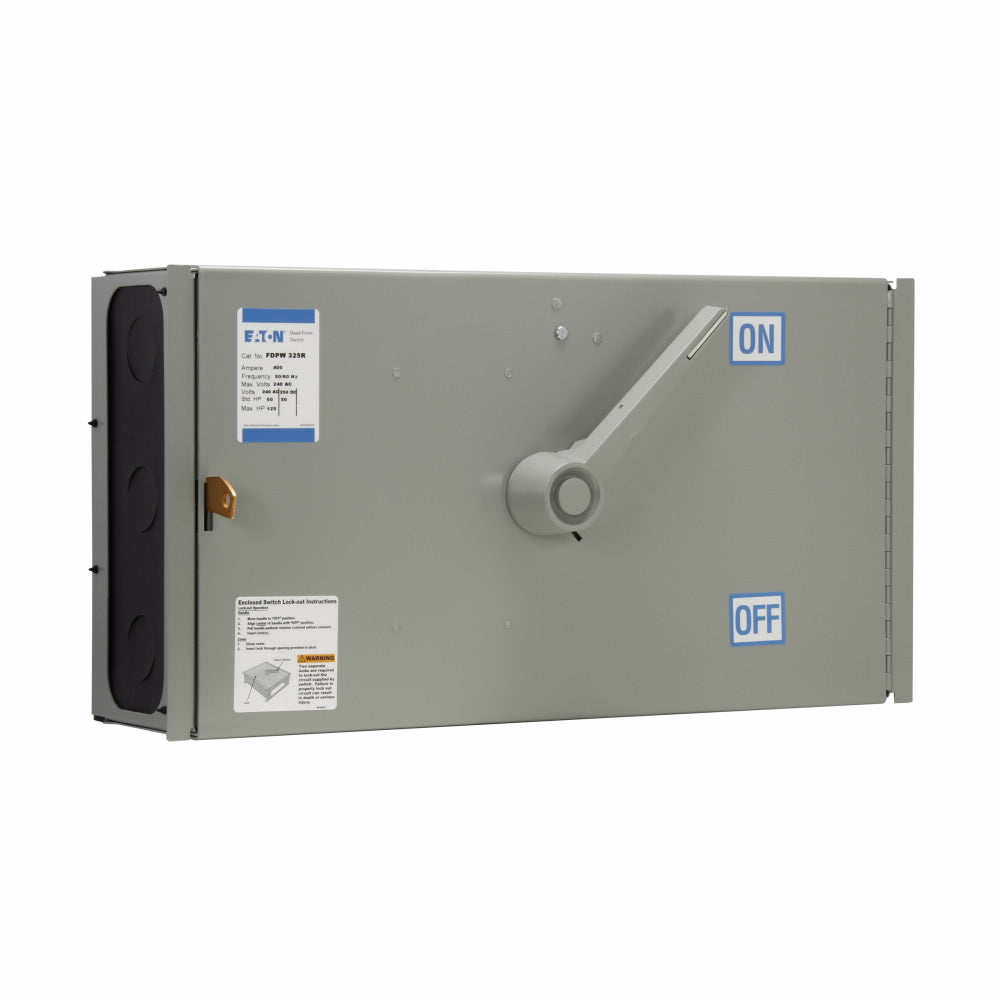

Cutler Hammer FDPW325R - Fusible Safety Switch, 400A 3-Pole

Price
Regular price $5,047.38
Regular price $2,210.00 Sale price $5,047.38
Save $-2,837.38
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon
The Cutler Hammer FDPW325R is a panel-mounted fusible safety switch designed to provide reliable circuit protection and isolation in industrial power distribution. It is rated for 240V AC operation with a 400A current capacity and features a robust three-pole, single-configuration design housed in a NEMA 1 enclosure measuring 25" x 10.5" x 16.5". This UL-listed switch is engineered for high fault protection with an interrupting rating of 200kA at 240V and is compatible with Class R, H, and K fuses for flexible protection schemes. Its construction supports wire sizes from 250-750 kcmil, making it suitable for demanding applications such as industrial control panels, motor control centers, and main service disconnects where dependable circuit protection is critical.

Key Features & Specifications
  • Type: Fusible Safety Switch, Panel Mount, Type FDPW
  • Voltage Rating: 240V AC
  • Current Rating: 400A
  • Configuration: Single
  • Poles: 3
  • Phase: 3
  • AIC Rating: 200kA @ 240V
  • Fuse Class: R, H, K
  • Wire Size: 250-750 kcmil or #3/0 AWG-250 kcmil
  • Switch Style: Fusible
  • NEMA Rating: 1
  • Dimensions: 25 in (L) x 10.5 in (H) x 16.5 in (W)
  • Weight: 45.2 lb
  • Standards/Certification: UL Listed
  • Compatible Frames: TFJ
  • Country of Origin: Mexico


Product Identification
  • UPC: 786679913253
  • GTIN: 00786679913253
