Westinghouse FDPT3211R - Fusible Disconnect Switch 3P 30A (200kA AIC @240V)
Westinghouse FDPT3211R - Fusible Disconnect Switch 3P 30A (200kA AIC @240V)
Westinghouse FDPT3211R - Fusible Disconnect Switch 3P 30A (200kA AIC @240V)
Westinghouse FDPT3211R - Fusible Disconnect Switch 3P 30A (200kA AIC @240V)

Westinghouse FDPT3211R - Fusible Disconnect Switch 3P 30A (200kA AIC @240V)

Westinghouse
Price
Save $-257.31
/
Title
  • Low stock - 1 item left
  • Backordered, shipping soon
Call for Price

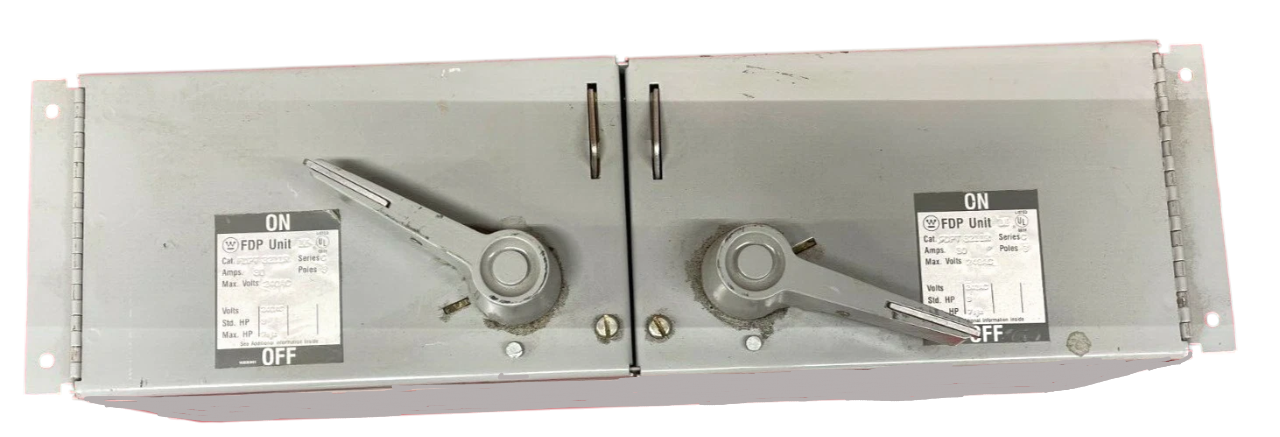

Westinghouse FDPT3211R is a fusible disconnect switch designed for industrial power distribution systems requiring reliable circuit protection. This 3-phase switch features a 240V voltage rating and 30A current capacity with a 200kA interrupting rating at 240V for high-fault protection. The rugged NEMA 1 enclosure houses a dual/twin configuration with three poles, compatible with ED frames and accepting R, H, or K-class fuses. UL-listed and built to industrial standards, it serves critical applications in manufacturing plants, data centers, and heavy machinery power control systems where fused isolation is required.

Key Features & Specifications
  • Type: Fusible disconnect switch with NEMA 1 enclosure
  • Voltage Rating: 240V AC
  • Current Rating: 30A
  • Configuration: Dual/Twin
  • Poles: 3
  • Phase: 3
  • AIC Rating: 200kA@240V
  • Fuse Class: R, H, K
  • Compatible Frames: ED
  • Switch Style: Fusible
  • NEMA Rating: 1
  • Weight: 25 lb
  • Standards: UL listed
  • Applications: Industrial power distribution, motor control centers, panelboards
Product Identification
  • UPC: 782113631547
  • GTIN: 00782274057002
