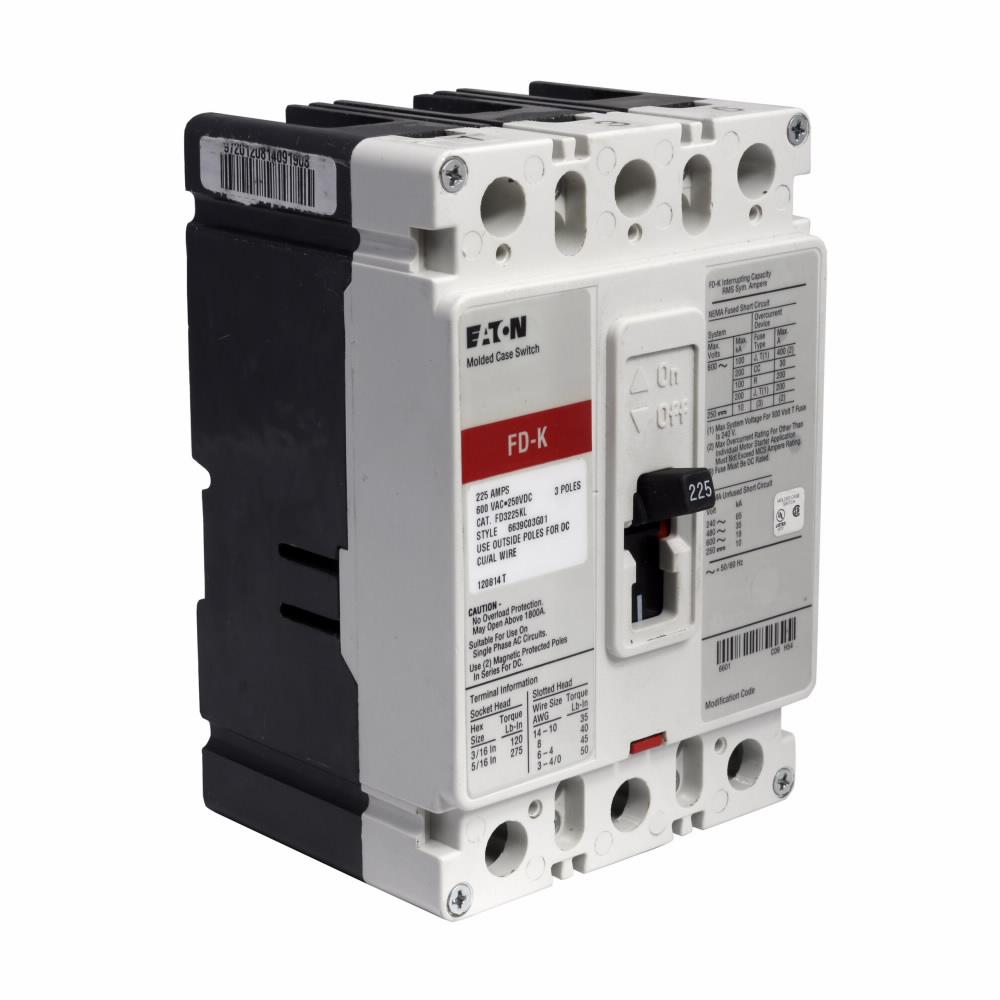

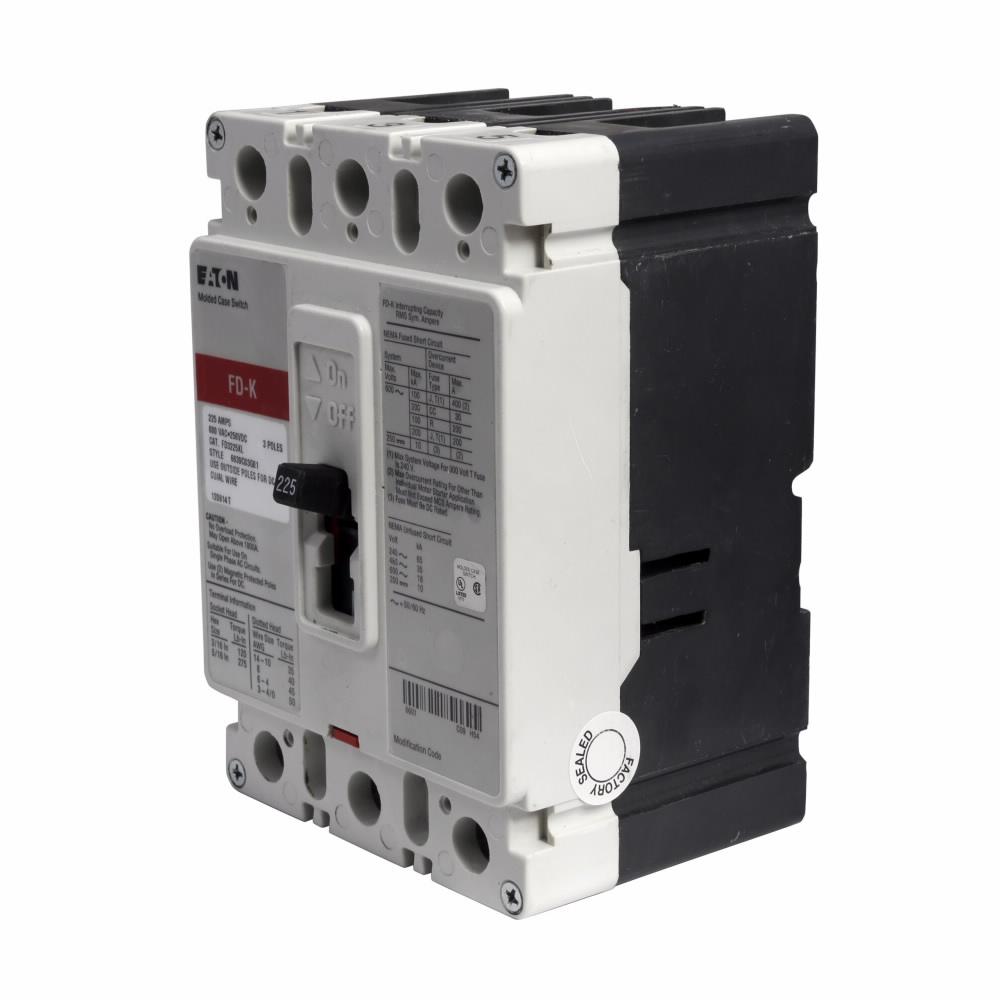

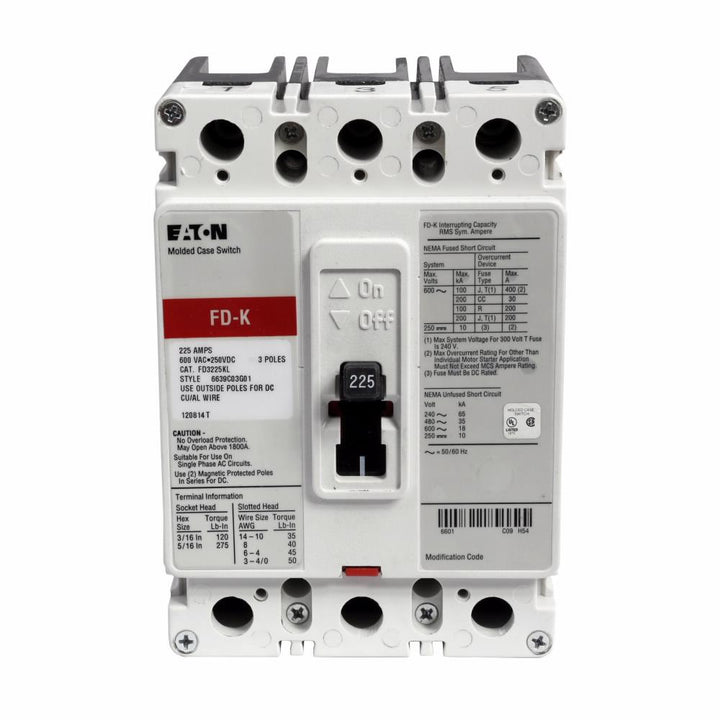

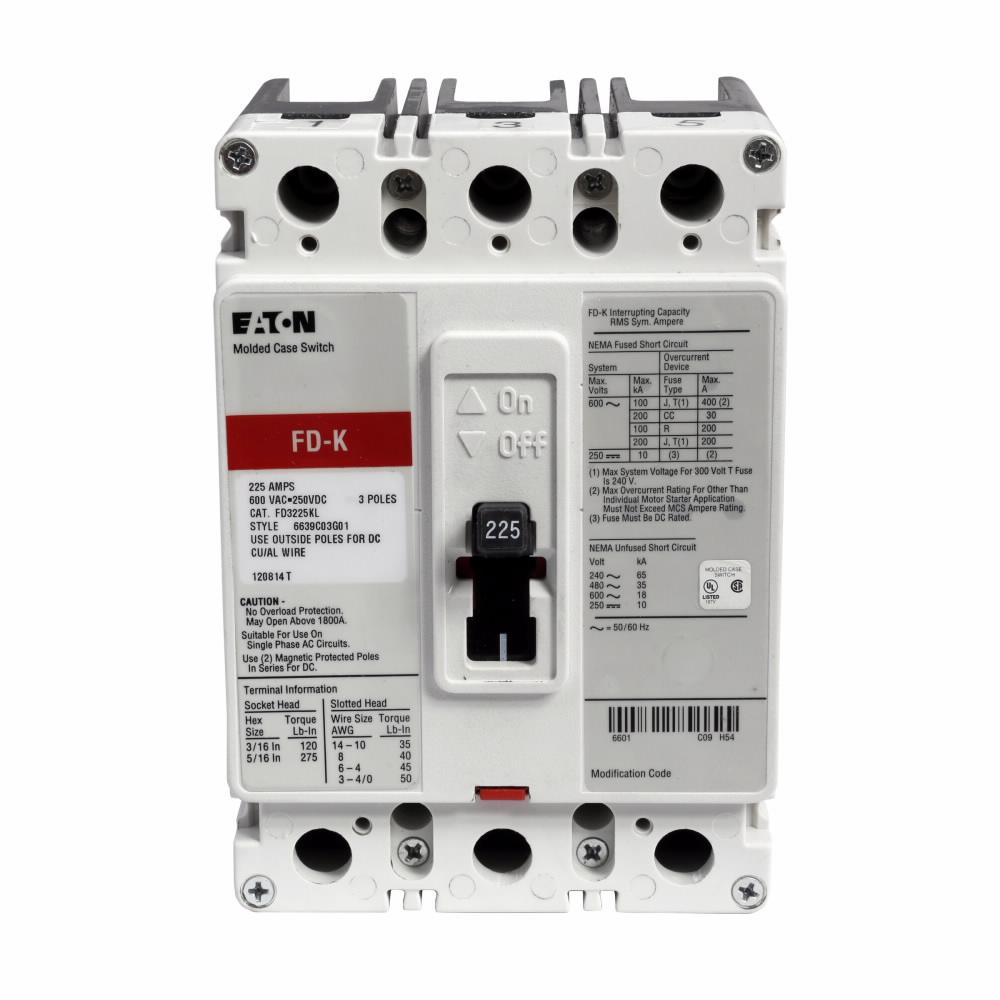

Cutler Hammer FD3225K - Molded Case Circuit Breaker 225A 600V 3P
Cutler Hammer FD3225K - Molded Case Circuit Breaker 225A 600V 3P
Cutler Hammer FD3225K - Molded Case Circuit Breaker 225A 600V 3P
Cutler Hammer FD3225K - Molded Case Circuit Breaker 225A 600V 3P
Cutler Hammer FD3225K - Molded Case Circuit Breaker 225A 600V 3P
Cutler Hammer FD3225K - Molded Case Circuit Breaker 225A 600V 3P

Cutler Hammer FD3225K - Molded Case Circuit Breaker 225A 600V 3P

Cutler Hammer
Price
Save $2,801.98
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Cutler Hammer FD3225K is a molded case circuit breaker designed for providing a main disconnect and branch circuit protection in three-phase industrial power distribution systems. It features a 600V AC voltage rating and a 225A current rating, housed within a compact F-frame design measuring 2.99 in (D) x 5.5 in (H) x 4 in (W) and weighing 4 lb. This non-automatic, bolt-on, three-pole disconnect switch is UL Listed and offers an interrupting capacity of 35kA at 480V AC. It is engineered for integration into panelboards and switchboards where a robust, manually operated circuit isolation point is required.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Non-Automatic Disconnect Switch (FD Type)
  • Voltage Rating: 600V AC
  • Current Rating: 225A
  • Dimensions: 2.99 in (Depth) x 5.5 in (Height) x 4 in (Width)
  • Standards: UL Listed
  • Applications: Main disconnect and branch protection in industrial three-phase power distribution
  • Switch Type: Manual Disconnect
  • Configuration: Bolt-On
  • Phase: 3
  • AIC Rating: 35kA @ 480V AC
  • Poles: 3
  • Protection: Non-Automatic (No Overcurrent Protection)
  • Functions: Circuit Isolation
  • Frame Size: F Frame
  • Weight: 4 lb
  • Certification: UL Listed
  • Family: Series C


Product Identification
  • UPC: 786679040676
  • GTIN: 00786679040676
