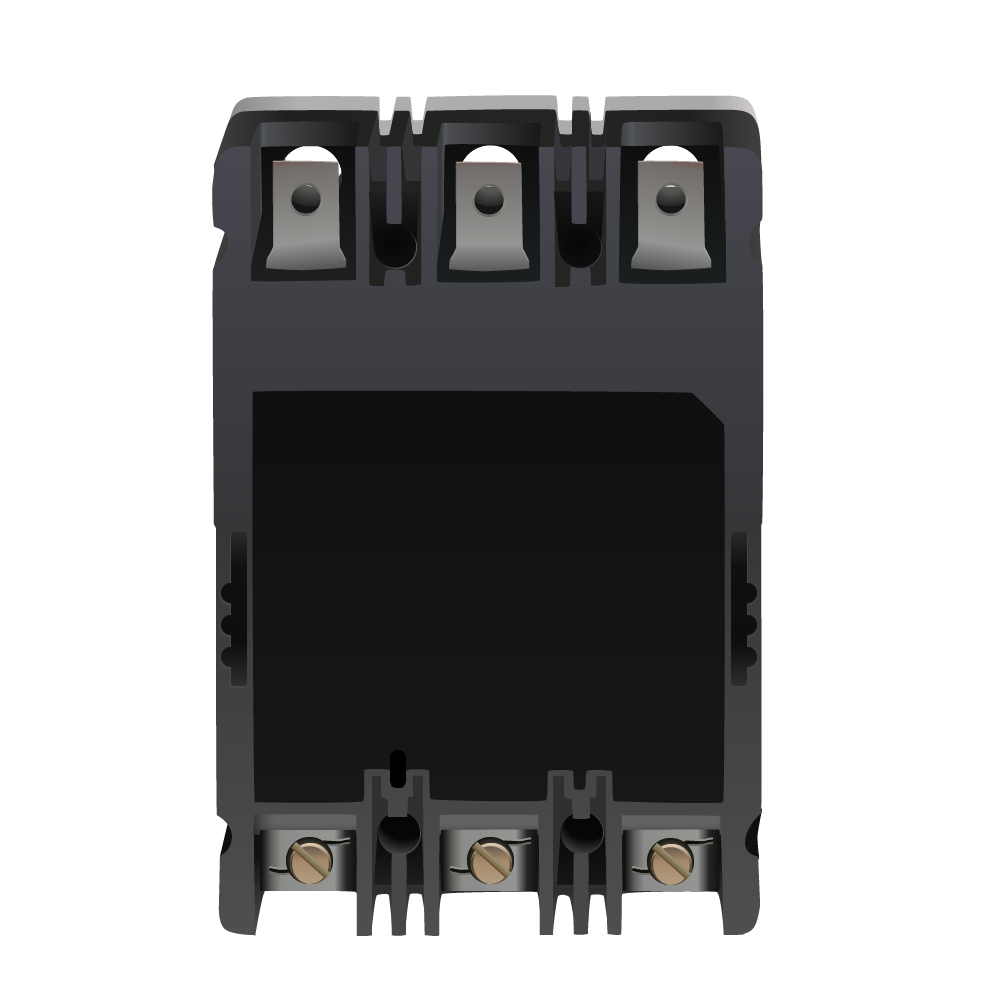

Cutler Hammer FD3150 - Molded Case Circuit Breaker 150A 600V 3P
Cutler Hammer FD3150 - Molded Case Circuit Breaker 150A 600V 3P
Cutler Hammer FD3150 - Molded Case Circuit Breaker 150A 600V 3P
Cutler Hammer FD3150 - Molded Case Circuit Breaker 150A 600V 3P

Cutler Hammer FD3150 - Molded Case Circuit Breaker 150A 600V 3P

Eaton
Price
Save $5,370.71
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
The Cutler Hammer FD3150 is a molded case circuit breaker designed to provide reliable overcurrent protection for three-phase industrial power distribution systems. It features a 150A continuous current rating and a 600V AC voltage rating, housed within a compact 225A frame with dimensions of 3.38" D x 6" H x 4.13" W and a weight of 4.5 lb. This thermal-magnetic breaker, offering long-time and instantaneous (LI) protection with a 35kA interrupting capacity at 480V, is constructed with bolt-on connections and load-side lugs compatible with wire sizes from 14 AWG to 1/0 AWG. It complies with UL, CSA, and IEC standards for use in switchboards, motor control centers, and enclosed controls from major manufacturers like Allen-Bradley and Rockwell Automation, operating effectively in ambient temperatures from -4°F to 158°F.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Thermal-Magnetic Protection, Bolt-On Connection
  • Voltage Rating: 600V AC
  • Current Rating: 150A
  • Frame Size: 225A/F
  • Poles: 3
  • AIC Rating: 35kA @ 480V AC
  • Phase Connection: 3-Phase, ABC
  • Functions: Long-Time and Instantaneous (LI)
  • Connection: Bolt-On, Load Side Lug
  • Wire Size Range: 14 AWG to 1/0 AWG
  • Dimensions: 3.38 in (Depth) x 6 in (Height) x 4.13 in (Width)
  • Weight: 4.5 lb
  • Operating Temperature: -4°F to 158°F (-20°C to 70°C)
  • Standards & Certification: UL Listed, CSA Certified, IEC Rated
  • Compatible Panel Types: Allen Bradley MCC, Eaton MCC, Rockwell Automation Enclosed Control, Switchboard, Westinghouse
  • Breaker Type: Standard
  • Family: Series C


Product Identification
  • UPC: 786679305799
  • GTIN: 00786679305799
