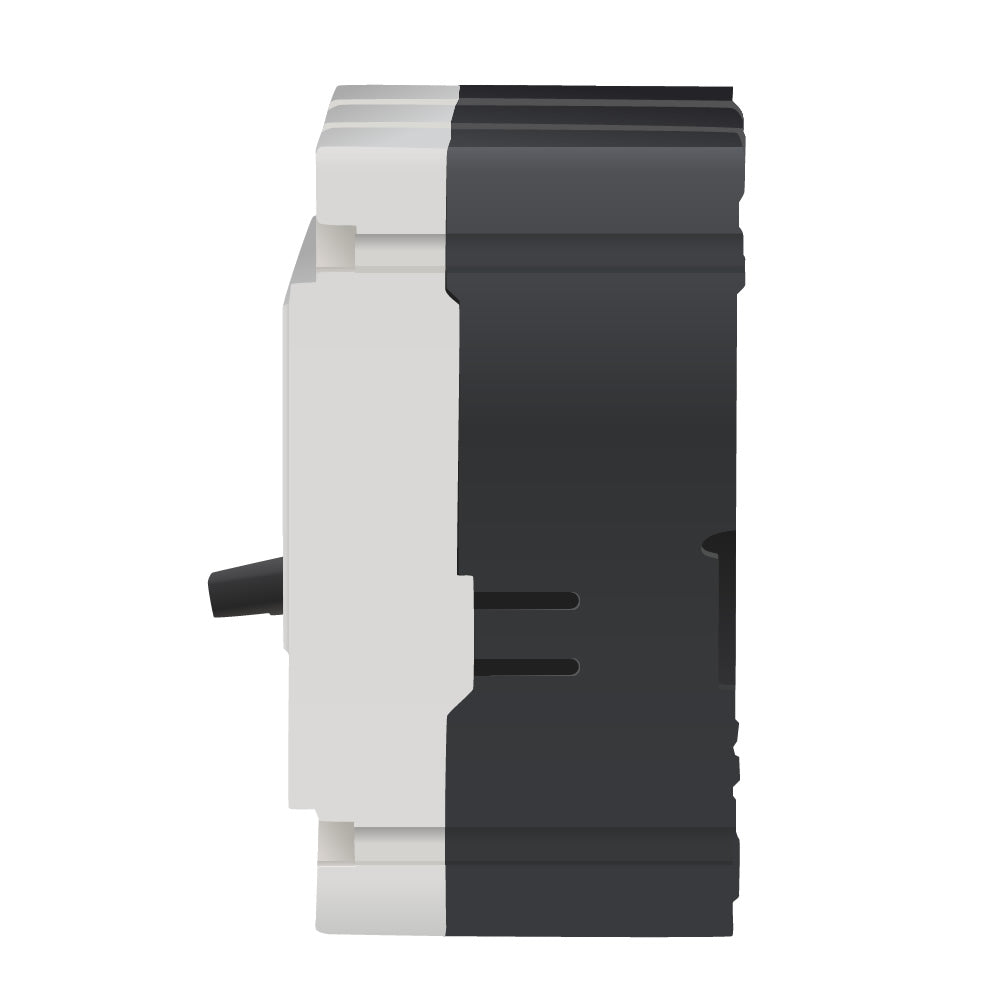

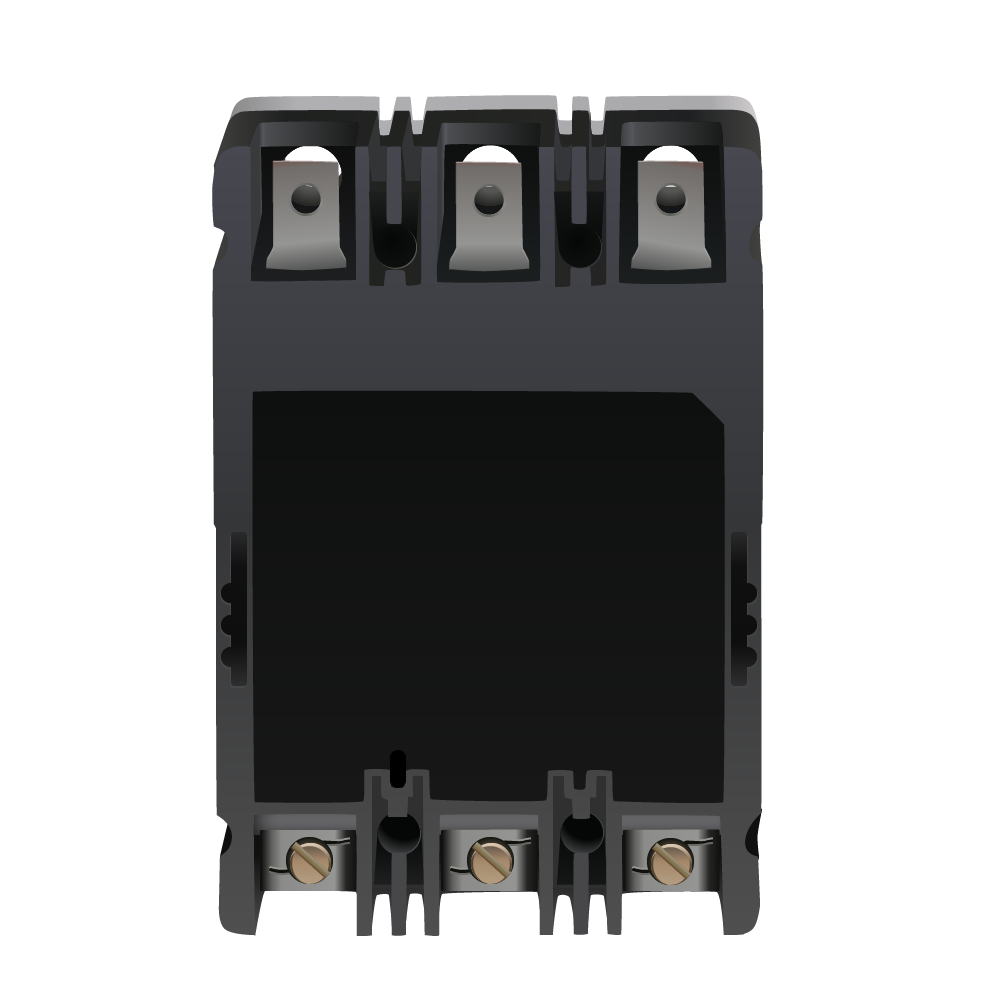

Eaton FD3125 - Molded Case Circuit Breaker 125A 600V 3P
Eaton FD3125 - Molded Case Circuit Breaker 125A 600V 3P
Eaton FD3125 - Molded Case Circuit Breaker 125A 600V 3P
Eaton FD3125 - Molded Case Circuit Breaker 125A 600V 3P

Eaton FD3125 - Molded Case Circuit Breaker 125A 600V 3P

Eaton
Price
Save $5,444.70
/
Condition
  • Low stock - 8 items left
  • Backordered, shipping soon
Call for Price
Eaton Cutler-Hammer FD3125 is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in three-phase industrial power distribution systems. It features a 125A continuous current rating and a 600V AC voltage rating, housed within a compact 225A frame with dimensions of 3.38" D x 6" H x 4.13" W and a weight of 4.5 lb. The breaker utilizes a thermal-magnetic trip unit for Long-Time and Instantaneous (LI) protection, is CSA Certified, IEC Rated, and UL Listed, and is constructed for bolt-on connection with load-side lugs compatible with wire sizes from 14 AWG to 1/0 AWG. Typical applications include integration into motor control centers (MCCs), switchboards, and enclosed controls from major manufacturers like Allen-Bradley and Rockwell Automation.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Standard, Thermal Magnetic Protection
  • Voltage Rating: 600V AC
  • Current Rating: 125A
  • Frame Size: 225A/F
  • AIC Rating: 35kA at 480V AC
  • Poles: 3
  • Connection: Bolt-On, Load Side Lug
  • Phase Connection: ABC
  • Functions: LI (Long-Time and Instantaneous)
  • Dimensions: 3.38 in (D) x 6 in (H) x 4.13 in (W)
  • Weight: 4.5 lb
  • Wire Size Range: 14 AWG to 1/0 AWG
  • Operating Temperature: -4°F to 158°F (-20°C to 70°C)
  • Standards & Certification: CSA Certified, IEC Rated, UL Listed
  • Compatible Panel Types: Allen Bradley MCC, Eaton MCC, Rockwell Automation Enclosed Control, Switchboard, Westinghouse


Product Identification
  • UPC: 786679305782
  • GTIN: 00786679305782
